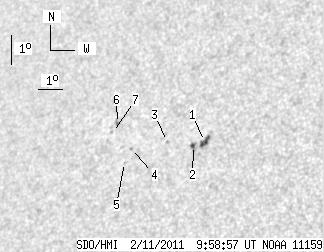

SDO HMI 2011-02-11 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.28 | 15.24 | 5.01 | 10.63 | 19.42 | 33.11 | -36.92 | 53.58 | 0.7060 | -163.5 | -14.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.48 | 6.76 | 3.76 | 4.64 | 19.31 | 34.23 | -35.80 | 52.93 | 0.6942 | -793.8 | -614.7 | |
| 1.46 | 3.34 | 1.00 | 2.30 | 19.21 | 33.83 | -36.20 | 53.35 | 0.6976 | -559.4 | -508.3 | |
| 0.00 | 1.20 | 0.00 | 0.84 | 19.42 | 32.75 | -37.28 | 53.86 | 0.7097 | -544.0 | -395.4 | |
| 0.00 | 1.11 | 0.00 | 0.79 | 19.30 | 31.35 | -38.68 | 54.97 | 0.7227 | 592.0 | 525.6 | |
| 0.00 | 0.43 | 0.00 | 0.31 | 18.86 | 31.19 | -38.84 | 55.61 | 0.7216 | 570.0 | 499.2 | |
| 0.34 | 2.14 | 0.25 | 1.56 | 20.18 | 30.52 | -39.51 | 54.47 | 0.7361 | 648.2 | 613.8 | |
| 0.00 | 0.26 | 0.00 | 0.19 | 19.90 | 30.40 | -39.63 | 54.88 | 0.7356 | 479.0 | 403.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
