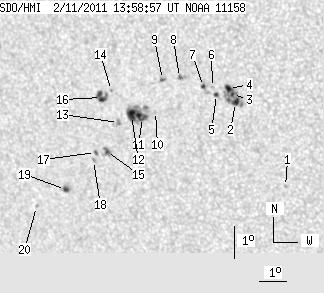

SDO HMI 2011-02-11 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.97 | 96.35 | 22.06 | 57.37 | -19.68 | 35.84 | -31.99 | 115.94 | 0.5565 | -137.6 | 50.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.69 | -22.16 | 39.97 | -27.86 | 122.89 | 0.5176 | -803.0 | -588.0 | |
| 3.76 | 24.22 | 2.18 | 14.00 | -19.51 | 38.72 | -29.12 | 117.29 | 0.5182 | 836.1 | 723.8 | |
| 1.28 | -2.00 | 0.74 | -2.00 | -19.27 | 38.66 | -29.18 | 116.80 | 0.5177 | 1043.9 | 999999 | |
| 3.08 | -2.00 | 1.78 | -2.00 | -19.08 | 38.55 | -29.28 | 116.39 | 0.5181 | 893.4 | 999999 | |
| 1.88 | 2.22 | 1.09 | 1.29 | -19.23 | 38.09 | -29.75 | 116.39 | 0.5251 | 439.3 | 455.8 | |
| 0.00 | 1.03 | 0.00 | 0.60 | -19.02 | 37.99 | -29.85 | 115.93 | 0.5253 | 595.0 | 396.9 | |
| 1.20 | 5.22 | 0.70 | 3.04 | -18.97 | 37.67 | -30.16 | 115.66 | 0.5293 | 469.9 | 114.4 | |
| 1.37 | 3.51 | 0.80 | 2.06 | -18.65 | 36.86 | -30.97 | 114.64 | 0.5386 | 647.0 | 629.7 | |
| 0.51 | 1.54 | 0.30 | 0.91 | -18.67 | 36.24 | -31.60 | 114.36 | 0.5470 | 636.0 | 467.3 | |
| 0.00 | 0.94 | 0.00 | 0.56 | -19.62 | 35.77 | -32.06 | 115.76 | 0.5574 | -712.0 | -589.3 | |
| 6.08 | 30.20 | 3.64 | 18.12 | -19.77 | 35.25 | -32.58 | 115.74 | 0.5648 | -893.8 | -344.3 | |
| 7.02 | -11.00 | 4.22 | -11.00 | -19.69 | 34.86 | -32.97 | 115.40 | 0.5695 | -766.6 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.66 | -19.87 | 34.33 | -33.51 | 115.44 | 0.5771 | -781.0 | -617.0 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -18.89 | 34.29 | -33.54 | 113.79 | 0.5735 | -638.0 | -581.4 | |
| 2.82 | 5.90 | 1.73 | 3.61 | -20.72 | 33.66 | -34.17 | 116.50 | 0.5893 | 853.0 | 629.5 | |
| 4.54 | 9.16 | 2.75 | 5.55 | -19.08 | 33.87 | -33.96 | 113.91 | 0.5797 | -776.0 | -631.8 | |
| 1.03 | 1.71 | 0.63 | 1.05 | -20.72 | 33.24 | -34.60 | 116.30 | 0.5946 | 471.8 | 450.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | -20.96 | 33.10 | -34.74 | 116.61 | 0.5974 | 602.0 | 421.1 | |
| 2.40 | 3.68 | 1.50 | 2.31 | -21.77 | 31.78 | -36.06 | 117.26 | 0.6172 | -810.6 | -668.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | -22.21 | 30.49 | -37.35 | 117.34 | 0.6346 | -672.0 | -535.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
