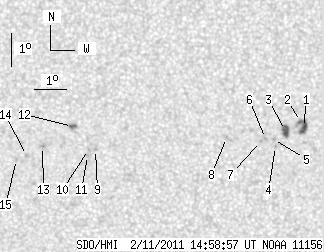

SDO HMI 2011-02-11 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.06 | 35.69 | 6.16 | 18.22 | -20.28 | 68.58 | 1.30 | 185.25 | 0.2445 | 313.7 | 111.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.33 | 10.87 | 3.23 | 5.54 | -20.03 | 71.44 | 4.15 | 196.36 | 0.2427 | 1024.0 | 908.5 | |
| 0.43 | -1.00 | 0.22 | -1.00 | -19.84 | 71.34 | 4.05 | 196.21 | 0.2393 | 1162.4 | 999999 | |
| 4.19 | 7.19 | 2.14 | 3.67 | -20.12 | 70.87 | 3.59 | 194.14 | 0.2417 | 1168.9 | 902.8 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -20.61 | 70.57 | 3.28 | 192.51 | 0.2486 | 807.0 | 668.5 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -20.40 | 70.50 | 3.22 | 192.46 | 0.2448 | 962.0 | 729.1 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -20.37 | 70.25 | 2.96 | 191.53 | 0.2435 | 1066.0 | 801.3 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -20.46 | 70.09 | 2.81 | 190.86 | 0.2445 | 892.0 | 703.7 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -20.34 | 69.02 | 1.73 | 186.81 | 0.2397 | 911.0 | 691.1 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -20.71 | 64.88 | -2.41 | 170.82 | 0.2474 | -866.0 | -689.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -20.71 | 64.66 | -2.63 | 169.99 | 0.2480 | -914.0 | -753.1 | |
| 0.00 | 2.05 | 0.00 | 1.05 | -20.89 | 64.62 | -2.66 | 170.00 | 0.2512 | -891.0 | -636.5 | |
| 1.11 | 3.25 | 0.57 | 1.66 | -20.00 | 64.16 | -3.12 | 167.53 | 0.2380 | -1154.7 | -959.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -20.61 | 63.20 | -4.08 | 164.58 | 0.2518 | -1133.0 | -881.7 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -20.88 | 62.69 | -4.60 | 163.08 | 0.2586 | -821.0 | -543.2 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -20.99 | 62.37 | -4.92 | 162.13 | 0.2621 | -885.0 | -617.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
