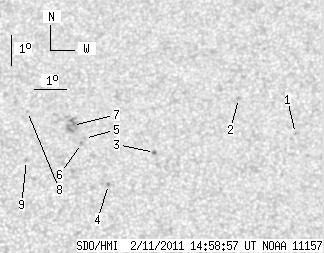

SDO HMI 2011-02-11 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 21.64 | 0.00 | 12.02 | 19.92 | 63.41 | -3.88 | 8.09 | 0.4543 | 272.7 | 465.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.52 | 19.92 | 69.64 | 2.36 | 355.06 | 0.4506 | -663.0 | -512.2 | |
| 0.00 | 1.28 | 0.00 | 0.72 | 21.08 | 67.85 | 0.57 | 358.86 | 0.4671 | -715.0 | -588.9 | |
| 0.00 | 1.80 | 0.00 | 0.99 | 19.29 | 65.21 | -2.07 | 4.47 | 0.4404 | -912.0 | -684.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | 18.25 | 63.79 | -3.49 | 7.84 | 0.4264 | 838.0 | 632.6 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 19.77 | 63.00 | -4.28 | 8.99 | 0.4519 | 688.0 | 635.6 | |
| 0.00 | 1.28 | 0.00 | 0.71 | 19.60 | 62.91 | -4.37 | 9.23 | 0.4495 | 961.0 | 791.2 | |
| 0.00 | 11.55 | 0.00 | 6.43 | 20.20 | 62.61 | -4.67 | 9.62 | 0.4595 | 949.0 | 766.0 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 20.68 | 61.17 | -6.12 | 12.27 | 0.4711 | 682.0 | 512.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 19.06 | 61.20 | -6.09 | 13.03 | 0.4464 | 626.0 | 452.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
