SDO HMI 2011-02-11 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.77 | 28.50 | 0.43 | 15.86 | 20.13 | 63.50 | -2.68 | 5.55 | 0.4560 | 315.6 | 393.6 | |
|
previous
or next observation for the same group /

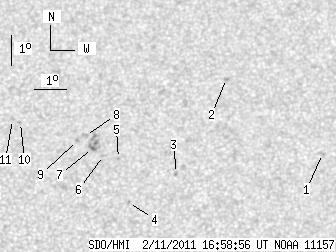

back to the solar disc SDO HMI 2011-02-11 16:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.48 | 0.00 | 1.38 | 19.85 | 69.83 | 3.64 | 352.36 | 0.4518 | -772.0 | -543.7 | |
| 0.00 | 1.80 | 0.00 | 1.02 | 22.35 | 66.82 | 0.63 | 358.79 | 0.4868 | -796.0 | -675.3 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 19.18 | 65.24 | -0.95 | 2.05 | 0.4377 | -869.0 | -609.1 | |
| 0.00 | 1.20 | 0.00 | 0.65 | 18.23 | 63.75 | -2.44 | 5.48 | 0.4244 | 803.0 | 638.7 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 19.68 | 63.41 | -2.77 | 5.86 | 0.4476 | 767.0 | 571.3 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 19.78 | 62.94 | -3.24 | 6.83 | 0.4500 | 698.0 | 533.6 | |
| 0.77 | 12.92 | 0.43 | 7.19 | 20.02 | 62.58 | -3.60 | 7.49 | 0.4543 | 822.1 | 729.0 | |
| 0.00 | 2.65 | 0.00 | 1.48 | 20.45 | 62.35 | -3.83 | 7.82 | 0.4614 | 692.0 | 544.2 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 20.29 | 62.10 | -4.08 | 8.38 | 0.4595 | 551.0 | 432.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 20.91 | 60.28 | -5.91 | 11.75 | 0.4738 | 732.0 | 672.8 | |
| 0.00 | 1.11 | 0.00 | 0.63 | 21.01 | 60.02 | -6.16 | 12.20 | 0.4762 | 626.0 | 575.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
