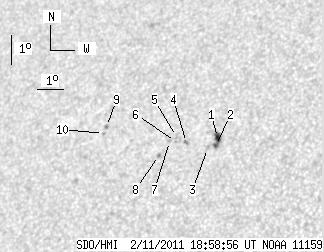

SDO HMI 2011-02-11 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.73 | 19.33 | 3.68 | 12.61 | 19.34 | 33.47 | -31.61 | 49.49 | 0.6524 | -408.8 | -228.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 18:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.13 | 8.55 | 3.30 | 5.50 | 19.35 | 34.68 | -30.39 | 48.43 | 0.6404 | -889.3 | -796.6 | |
| 0.60 | -1.00 | 0.38 | -1.00 | 19.09 | 34.67 | -30.41 | 48.77 | 0.6384 | -968.0 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.83 | 19.01 | 34.39 | -30.69 | 49.12 | 0.6405 | -719.0 | -603.3 | |
| 0.00 | 1.88 | 0.00 | 1.22 | 19.26 | 33.57 | -31.51 | 49.54 | 0.6508 | -771.0 | -630.9 | |
| 0.00 | 0.94 | 0.00 | 0.62 | 19.48 | 33.15 | -31.93 | 49.62 | 0.6568 | -635.0 | -565.6 | |
| 0.00 | 0.86 | 0.00 | 0.56 | 19.32 | 33.15 | -31.93 | 49.83 | 0.6555 | -705.0 | -566.8 | |
| 0.00 | 1.63 | 0.00 | 1.07 | 19.33 | 32.92 | -32.15 | 50.00 | 0.6579 | -401.0 | -355.6 | |
| 0.00 | 1.45 | 0.00 | 0.95 | 18.89 | 32.61 | -32.46 | 50.80 | 0.6576 | 821.0 | 682.8 | |
| 0.00 | 1.37 | 0.00 | 0.93 | 20.00 | 30.39 | -34.69 | 51.25 | 0.6881 | 757.0 | 599.4 | |
| 0.00 | 1.37 | 0.00 | 0.93 | 19.77 | 30.33 | -34.74 | 51.57 | 0.6870 | 740.0 | 550.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
