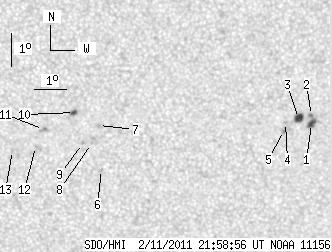

SDO HMI 2011-02-11 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.01 | 30.45 | 6.68 | 15.63 | -20.34 | 68.21 | 4.78 | 197.53 | 0.2576 | 170.3 | -56.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.45 | 5.30 | 2.29 | 2.73 | -20.19 | 71.70 | 8.28 | 209.92 | 0.2723 | 965.5 | 742.6 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -19.94 | 71.69 | 8.27 | 210.36 | 0.2687 | 1093.0 | 963.5 | |
| 6.42 | 7.10 | 3.30 | 3.65 | -20.04 | 71.28 | 7.86 | 208.94 | 0.2667 | 1029.6 | 731.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -20.17 | 70.88 | 7.45 | 207.45 | 0.2653 | 947.0 | 756.0 | |
| 0.00 | 2.57 | 0.00 | 1.32 | -20.41 | 70.82 | 7.40 | 206.85 | 0.2685 | 853.0 | 773.0 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -21.65 | 65.08 | 1.65 | 185.92 | 0.2612 | 626.0 | 406.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -20.31 | 64.97 | 1.54 | 186.11 | 0.2384 | -886.0 | -745.9 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -20.86 | 64.75 | 1.33 | 185.05 | 0.2473 | -777.0 | -653.8 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -20.86 | 64.47 | 1.04 | 183.97 | 0.2469 | -895.0 | -717.2 | |
| 2.14 | 2.82 | 1.09 | 1.44 | -19.92 | 64.21 | 0.78 | 183.22 | 0.2306 | -1115.7 | -991.6 | |
| 0.00 | 3.08 | 0.00 | 1.57 | -20.44 | 63.23 | -0.19 | 179.25 | 0.2391 | -967.0 | -833.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -20.95 | 62.98 | -0.44 | 178.32 | 0.2480 | -812.0 | -519.8 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -21.08 | 62.25 | -1.17 | 175.61 | 0.2507 | -734.0 | -511.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
