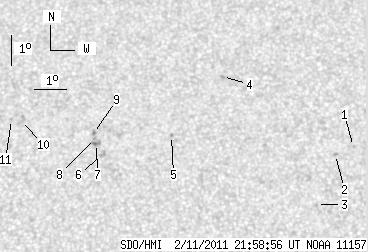

SDO HMI 2011-02-11 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 20.04 | 0.00 | 11.15 | 20.23 | 63.75 | 0.33 | 359.29 | 0.4574 | 122.4 | 317.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 21:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.86 | 0.00 | 0.48 | 19.97 | 70.81 | 7.38 | 344.90 | 0.4654 | -611.0 | -527.2 | |
| 0.00 | 1.45 | 0.00 | 0.81 | 19.70 | 70.22 | 6.80 | 345.89 | 0.4591 | -861.0 | -629.8 | |
| 0.00 | 0.94 | 0.00 | 0.52 | 18.05 | 69.56 | 6.14 | 346.31 | 0.4315 | -704.0 | -560.7 | |
| 0.00 | 1.37 | 0.00 | 0.78 | 22.27 | 66.72 | 3.29 | 353.73 | 0.4886 | -864.0 | -733.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 20.28 | 65.06 | 1.64 | 356.61 | 0.4559 | -754.0 | -602.6 | |
| 0.00 | 3.25 | 0.00 | 1.80 | 19.65 | 62.89 | -0.54 | 1.14 | 0.4453 | 929.0 | 676.7 | |
| 0.00 | 3.68 | 0.00 | 2.04 | 20.01 | 62.70 | -0.73 | 1.52 | 0.4511 | 1018.0 | 781.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 20.18 | 62.63 | -0.79 | 1.64 | 0.4537 | 900.0 | 732.8 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 20.34 | 62.60 | -0.82 | 1.70 | 0.4563 | 944.0 | 786.1 | |
| 0.00 | 3.94 | 0.00 | 2.20 | 20.79 | 60.32 | -3.10 | 6.27 | 0.4656 | 740.0 | 594.4 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 20.82 | 60.00 | -3.42 | 6.89 | 0.4667 | 609.0 | 531.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
