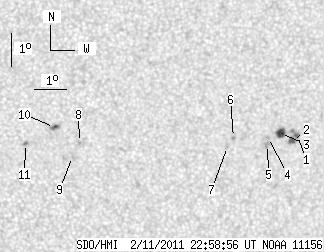

SDO HMI 2011-02-11 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.92 | 33.11 | 6.64 | 17.00 | -20.19 | 69.32 | 6.45 | 203.37 | 0.2629 | 368.2 | 209.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.45 | 9.15 | 0.75 | 4.72 | -20.09 | 71.88 | 9.01 | 212.21 | 0.2770 | 763.9 | 824.8 | |
| 3.25 | -1.00 | 1.68 | -1.00 | -20.27 | 71.73 | 8.86 | 211.42 | 0.2783 | 908.9 | 999999 | |
| 6.25 | 6.93 | 3.21 | 3.56 | -20.04 | 71.33 | 8.46 | 210.75 | 0.2716 | 1055.8 | 792.2 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -20.16 | 70.96 | 8.09 | 209.40 | 0.2702 | 828.0 | 672.3 | |
| 0.00 | 3.94 | 0.00 | 2.03 | -20.38 | 70.94 | 8.07 | 208.93 | 0.2732 | 1015.0 | 772.2 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -20.18 | 69.85 | 6.97 | 205.93 | 0.2618 | 906.0 | 758.6 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -20.46 | 69.67 | 6.80 | 204.89 | 0.2647 | 762.0 | 597.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -20.38 | 64.98 | 2.11 | 188.28 | 0.2405 | -974.0 | -716.7 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -20.80 | 64.77 | 1.89 | 187.21 | 0.2472 | -879.0 | -745.9 | |
| 1.97 | 5.22 | 1.00 | 2.66 | -19.92 | 64.19 | 1.32 | 185.38 | 0.2313 | -1087.7 | -839.6 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -20.41 | 63.28 | 0.41 | 181.60 | 0.2386 | -1037.0 | -903.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
