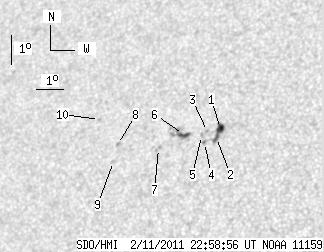

SDO HMI 2011-02-11 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.84 | 35.75 | 6.20 | 22.72 | 19.20 | 33.60 | -29.27 | 47.52 | 0.6281 | -290.8 | -183.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 22:58:56 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.13 | 10.18 | 3.22 | 6.39 | 19.36 | 34.85 | -28.02 | 46.13 | 0.6171 | -888.9 | -718.8 | |
| 1.03 | -1.00 | 0.64 | -1.00 | 19.07 | 34.76 | -28.11 | 46.58 | 0.6154 | -899.6 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.70 | 19.29 | 34.40 | -28.47 | 46.67 | 0.6209 | -334.0 | -375.7 | |
| 0.00 | 1.45 | 0.00 | 0.91 | 18.93 | 34.36 | -28.51 | 47.15 | 0.6181 | -618.0 | -495.0 | |
| 0.00 | 1.28 | 0.00 | 0.81 | 19.17 | 34.21 | -28.66 | 47.00 | 0.6217 | -506.0 | -339.9 | |
| 3.68 | 15.14 | 2.34 | 9.64 | 19.24 | 33.55 | -29.32 | 47.55 | 0.6289 | -546.5 | -337.9 | |
| 0.00 | 1.88 | 0.00 | 1.20 | 18.83 | 32.73 | -30.14 | 48.82 | 0.6338 | 487.0 | 580.3 | |
| 0.00 | 1.88 | 0.00 | 1.23 | 19.06 | 31.18 | -31.69 | 49.92 | 0.6513 | 618.0 | 522.9 | |
| 0.00 | 1.80 | 0.00 | 1.16 | 18.51 | 31.15 | -31.72 | 50.63 | 0.6472 | 593.0 | 444.1 | |
| 0.00 | 1.03 | 0.00 | 0.68 | 19.94 | 30.32 | -32.55 | 49.58 | 0.6667 | 638.0 | 555.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
