SDO HMI 2011-02-11 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.13 | 33.53 | 4.17 | 17.22 | -20.28 | 68.39 | 6.07 | 201.78 | 0.2645 | 268.5 | 120.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-11 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

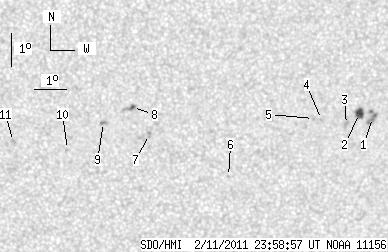

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 8.30 | 0.00 | 4.28 | -20.15 | 71.81 | 9.49 | 213.44 | 0.2822 | 1047.0 | 855.3 | |
| 6.59 | 7.27 | 3.39 | 3.75 | -20.03 | 71.39 | 9.07 | 212.51 | 0.2768 | 1015.5 | 665.0 | |
| 0.00 | 2.82 | 0.00 | 1.46 | -20.37 | 71.00 | 8.67 | 210.71 | 0.2781 | 975.0 | 792.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -20.23 | 70.19 | 7.87 | 208.62 | 0.2694 | 793.0 | 643.2 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -20.21 | 69.94 | 7.61 | 207.89 | 0.2670 | 928.0 | 662.6 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -22.01 | 67.30 | 4.98 | 196.90 | 0.2781 | 674.0 | 447.3 | |
| 0.00 | 2.48 | 0.00 | 1.27 | -20.75 | 64.76 | 2.43 | 189.27 | 0.2475 | -990.0 | -773.2 | |
| 1.54 | 4.53 | 0.78 | 2.31 | -19.93 | 64.21 | 1.89 | 187.68 | 0.2324 | -1074.2 | -853.8 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -20.39 | 63.30 | 0.98 | 183.85 | 0.2386 | -1074.0 | -859.9 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -21.21 | 62.16 | -0.16 | 179.40 | 0.2521 | -572.0 | -567.4 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -20.96 | 60.45 | -1.87 | 172.96 | 0.2498 | -850.0 | -747.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
