SDO HMI 2011-02-12 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.86 | 28.93 | 0.48 | 16.10 | 20.25 | 64.37 | 2.60 | 354.69 | 0.4581 | 148.6 | 170.4 | |
|
previous
or next observation for the same group /

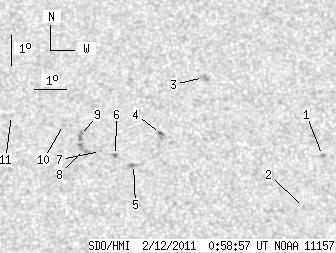

back to the solar disc SDO HMI 2011-02-12 00:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.71 | 0.00 | 0.96 | 19.68 | 70.26 | 8.48 | 342.59 | 0.4661 | -802.0 | -646.8 | |
| 0.00 | 0.77 | 0.00 | 0.42 | 17.97 | 69.57 | 7.80 | 342.77 | 0.4375 | -734.0 | -572.9 | |
| 0.00 | 3.68 | 0.00 | 2.09 | 22.24 | 66.57 | 4.80 | 350.89 | 0.4914 | -757.0 | -626.3 | |
| 0.43 | 4.88 | 0.24 | 2.72 | 20.35 | 65.15 | 3.38 | 353.07 | 0.4596 | -766.0 | -702.5 | |
| 0.00 | 2.91 | 0.00 | 1.60 | 19.32 | 64.28 | 2.51 | 354.62 | 0.4421 | 678.0 | 521.8 | |
| 0.43 | 1.97 | 0.24 | 1.09 | 19.61 | 63.72 | 1.95 | 355.87 | 0.4459 | 773.2 | 630.2 | |
| 0.00 | 0.26 | 0.00 | 0.14 | 19.74 | 63.25 | 1.48 | 356.88 | 0.4475 | 391.0 | 308.0 | |
| 0.00 | 6.16 | 0.00 | 3.41 | 19.81 | 62.75 | 0.97 | 357.95 | 0.4482 | 638.0 | 757.5 | |
| 0.00 | 4.02 | 0.00 | 2.23 | 20.27 | 62.63 | 0.85 | 358.24 | 0.4554 | 917.0 | 792.4 | |
| 0.00 | 1.63 | 0.00 | 0.91 | 20.63 | 62.09 | 0.32 | 359.36 | 0.4609 | 689.0 | 580.8 | |
| 0.00 | 0.94 | 0.00 | 0.53 | 20.94 | 60.44 | -1.33 | 2.68 | 0.4660 | 677.0 | 521.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
