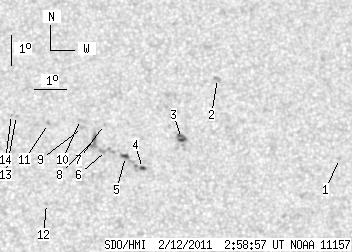

SDO HMI 2011-02-12 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.33 | 43.56 | 5.18 | 24.22 | 20.06 | 63.64 | 2.96 | 353.91 | 0.4554 | 307.5 | 374.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-12 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.20 | 0.00 | 0.67 | 19.61 | 70.34 | 9.65 | 340.31 | 0.4709 | -847.0 | -588.4 | |
| 0.00 | 2.82 | 0.00 | 1.61 | 22.22 | 66.57 | 5.89 | 348.87 | 0.4941 | -797.0 | -712.4 | |
| 3.17 | 6.42 | 1.77 | 3.58 | 20.19 | 65.35 | 4.67 | 350.40 | 0.4602 | -865.4 | -755.7 | |
| 1.88 | 5.22 | 1.04 | 2.88 | 19.19 | 64.10 | 3.41 | 352.65 | 0.4418 | 753.3 | 670.6 | |
| 2.65 | 6.08 | 1.47 | 3.36 | 19.58 | 63.57 | 2.89 | 353.88 | 0.4469 | 701.4 | 602.7 | |
| 0.00 | 5.91 | 0.00 | 3.27 | 19.78 | 62.97 | 2.29 | 355.17 | 0.4491 | 630.0 | 714.4 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 20.64 | 62.92 | 2.24 | 355.44 | 0.4624 | 633.0 | 498.5 | |
| 1.63 | 7.70 | 0.90 | 4.28 | 20.14 | 62.57 | 1.89 | 356.08 | 0.4543 | 840.5 | 830.9 | |
| 0.00 | 1.97 | 0.00 | 1.10 | 20.54 | 62.23 | 1.55 | 356.84 | 0.4601 | 800.0 | 651.7 | |
| 0.00 | 0.86 | 0.00 | 0.48 | 20.80 | 62.17 | 1.49 | 357.00 | 0.4642 | 552.0 | 457.1 | |
| 0.00 | 1.20 | 0.00 | 0.67 | 20.67 | 61.15 | 0.47 | 359.04 | 0.4616 | 654.0 | 568.9 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 18.03 | 61.08 | 0.40 | 359.09 | 0.4201 | 707.0 | 546.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | 20.94 | 60.14 | -0.54 | 1.09 | 0.4657 | 696.0 | 571.4 | |
| 0.00 | 0.68 | 0.00 | 0.38 | 20.97 | 59.98 | -0.70 | 1.41 | 0.4663 | 600.0 | 442.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
