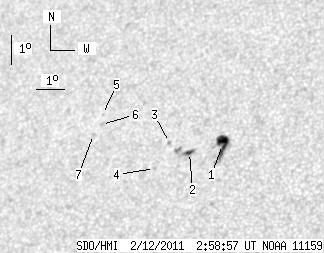

SDO HMI 2011-02-12 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 16.69 | 38.17 | 10.27 | 23.67 | 19.32 | 34.11 | -26.57 | 44.64 | 0.6026 | -403.0 | -186.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-12 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.87 | 21.48 | 8.52 | 13.20 | 19.33 | 34.95 | -25.73 | 43.77 | 0.5945 | -852.4 | -540.3 | |
| 2.82 | 11.30 | 1.75 | 7.02 | 19.12 | 33.83 | -26.85 | 45.21 | 0.6036 | -586.7 | -181.9 | |
| 0.00 | 1.37 | 0.00 | 0.86 | 19.50 | 33.05 | -27.63 | 45.55 | 0.6146 | -563.0 | -474.8 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 18.67 | 32.68 | -28.01 | 46.97 | 0.6109 | 799.0 | 612.8 | |
| 0.00 | 0.68 | 0.00 | 0.45 | 20.58 | 30.42 | -30.26 | 46.78 | 0.6497 | 569.0 | 439.2 | |
| 0.00 | 1.03 | 0.00 | 0.67 | 20.25 | 30.46 | -30.23 | 47.15 | 0.6466 | 727.0 | 680.1 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 19.93 | 30.23 | -30.45 | 47.74 | 0.6461 | 604.0 | 420.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
