SDO HMI 2011-02-12 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.62 | 159.52 | 27.21 | 88.19 | -19.95 | 35.72 | -23.32 | 122.83 | 0.4434 | -130.0 | 290.1 | |
|
previous
or next observation for the same group /

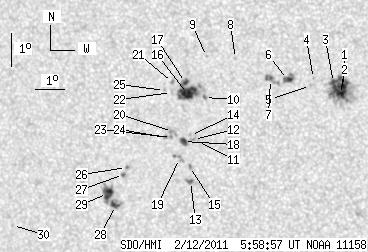

back to the solar disc SDO HMI 2011-02-12 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 53.60 | 1.10 | 28.80 | -19.22 | 39.62 | -19.43 | 125.39 | 0.3869 | 1400.5 | 713.2 | |
| 2.48 | -1.00 | 1.33 | -1.00 | -19.46 | 39.49 | -19.55 | 125.76 | 0.3906 | 1141.3 | 999999 | |
| 0.60 | -1.00 | 0.32 | -1.00 | -19.09 | 39.30 | -19.74 | 124.70 | 0.3900 | 882.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.46 | -18.94 | 38.66 | -20.39 | 123.61 | 0.3974 | -739.0 | -507.4 | |
| 0.00 | 1.11 | 0.00 | 0.60 | -19.15 | 38.53 | -20.52 | 123.91 | 0.4007 | 764.0 | 439.8 | |
| 4.28 | 7.45 | 2.32 | 4.04 | -18.93 | 37.78 | -21.26 | 122.62 | 0.4090 | 954.5 | 854.9 | |
| 0.86 | 7.28 | 0.47 | 3.96 | -18.91 | 37.22 | -21.83 | 121.97 | 0.4164 | 879.9 | 720.9 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -18.23 | 36.13 | -22.92 | 119.43 | 0.4265 | -745.0 | -543.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -18.12 | 35.16 | -23.89 | 118.35 | 0.4391 | 744.0 | 504.1 | |
| 0.68 | 1.54 | 0.38 | 0.85 | -19.36 | 34.90 | -24.14 | 120.67 | 0.4505 | -881.2 | -895.7 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -20.68 | 34.44 | -24.60 | 122.86 | 0.4656 | 785.0 | 588.7 | |
| 0.00 | 2.14 | 0.00 | 1.20 | -20.61 | 34.31 | -24.73 | 122.61 | 0.4668 | 945.0 | 742.0 | |
| 1.97 | 3.34 | 1.11 | 1.88 | -21.89 | 33.98 | -25.07 | 124.70 | 0.4802 | 746.2 | 696.6 | |
| 0.00 | 0.77 | 0.00 | 0.43 | -20.49 | 34.23 | -24.81 | 122.29 | 0.4670 | 733.0 | 590.9 | |
| 0.00 | 1.63 | 0.00 | 0.92 | -21.43 | 34.03 | -25.02 | 123.90 | 0.4762 | 920.0 | 764.5 | |
| 16.18 | 29.63 | 9.00 | 16.47 | -19.21 | 34.34 | -24.70 | 119.88 | 0.4571 | -1030.4 | -830.0 | |
| 2.14 | -16.00 | 1.19 | -16.00 | -18.87 | 34.33 | -24.72 | 119.19 | 0.4552 | -1019.3 | 999999 | |
| 3.85 | 5.82 | 2.16 | 3.27 | -20.66 | 33.96 | -25.09 | 122.38 | 0.4717 | 841.4 | 508.9 | |
| 0.00 | 4.71 | 0.00 | 2.65 | -21.17 | 33.73 | -25.32 | 123.14 | 0.4783 | 695.0 | 616.1 | |
| 0.00 | 4.79 | 0.00 | 2.69 | -20.33 | 33.63 | -25.42 | 121.48 | 0.4738 | -82.0 | 120.2 | |
| 0.00 | 1.88 | 0.00 | 1.05 | -18.85 | 33.88 | -25.17 | 118.79 | 0.4611 | -875.0 | -673.9 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -19.15 | 33.80 | -25.25 | 119.32 | 0.4641 | -548.0 | -427.2 | |
| 0.00 | 1.28 | 0.00 | 0.72 | -20.52 | 33.56 | -25.48 | 121.77 | 0.4759 | 818.0 | 682.0 | |
| 0.00 | 1.37 | 0.00 | 0.77 | -20.51 | 33.35 | -25.69 | 121.57 | 0.4786 | 813.0 | 701.9 | |
| 0.00 | 1.03 | 0.00 | 0.57 | -19.08 | 33.57 | -25.48 | 118.99 | 0.4667 | -673.0 | -467.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -21.35 | 31.81 | -27.23 | 121.87 | 0.5039 | -880.0 | -784.8 | |
| 0.43 | 1.37 | 0.25 | 0.79 | -21.56 | 31.66 | -27.38 | 122.13 | 0.5072 | -875.4 | -777.3 | |
| 3.77 | 22.09 | 2.18 | 12.78 | -22.49 | 31.17 | -27.87 | 123.39 | 0.5194 | -915.9 | -696.0 | |
| 9.33 | -28.00 | 5.40 | -28.00 | -22.11 | 30.97 | -28.08 | 122.56 | 0.5195 | -965.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.52 | -22.89 | 27.26 | -31.78 | 121.30 | 0.5701 | 687.0 | 597.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
