SDO HMI 2011-02-12 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.50 | 32.71 | 9.41 | 19.87 | 19.18 | 34.50 | -24.54 | 42.61 | 0.5817 | -628.0 | -156.0 | |
|
previous
or next observation for the same group /

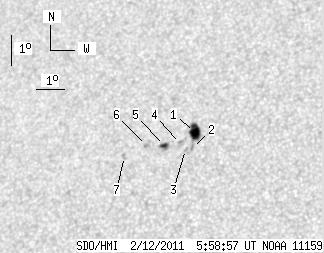

back to the solar disc SDO HMI 2011-02-12 05:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.42 | 14.81 | 7.53 | 8.98 | 19.43 | 35.02 | -24.03 | 41.71 | 0.5793 | -947.1 | -591.3 | |
| 0.00 | 2.23 | 0.00 | 1.34 | 18.91 | 35.03 | -24.01 | 42.33 | 0.5739 | -899.0 | -721.7 | |
| 0.00 | 1.28 | 0.00 | 0.78 | 18.85 | 34.80 | -24.24 | 42.67 | 0.5756 | -699.0 | -643.1 | |
| 0.00 | 4.11 | 0.00 | 2.49 | 19.06 | 34.60 | -24.45 | 42.65 | 0.5796 | -80.0 | -112.8 | |
| 3.08 | 5.57 | 1.88 | 3.39 | 19.02 | 34.05 | -24.99 | 43.32 | 0.5845 | -520.7 | -83.4 | |
| 0.00 | 2.14 | 0.00 | 1.31 | 19.06 | 33.42 | -25.62 | 43.98 | 0.5909 | 188.0 | 172.0 | |
| 0.00 | 2.57 | 0.00 | 1.58 | 18.74 | 32.71 | -26.34 | 45.15 | 0.5949 | 551.0 | 554.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
