SDO HMI 2011-02-12 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.94 | 17.39 | 2.07 | 9.08 | -20.19 | 69.56 | 12.15 | 218.81 | 0.3121 | 6.2 | 121.2 | |
|
previous
or next observation for the same group /

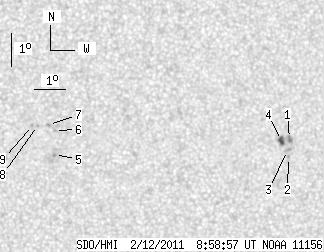

back to the solar disc SDO HMI 2011-02-12 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.43 | 0.00 | 1.80 | -20.07 | 72.05 | 14.64 | 225.30 | 0.3355 | 1032.0 | 826.8 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.65 | 72.08 | 14.67 | 224.07 | 0.3422 | 773.0 | 573.1 | |
| 0.00 | 2.91 | 0.00 | 1.53 | -20.44 | 72.02 | 14.61 | 224.43 | 0.3392 | 707.0 | 514.5 | |
| 3.94 | 4.28 | 2.07 | 2.25 | -20.14 | 71.80 | 14.39 | 224.67 | 0.3333 | 1016.4 | 848.8 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -20.72 | 64.54 | 7.13 | 205.51 | 0.2707 | -1026.0 | -858.6 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -19.99 | 64.50 | 7.10 | 206.70 | 0.2595 | -749.0 | -513.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -19.81 | 64.31 | 6.90 | 206.39 | 0.2554 | -992.0 | -693.4 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -19.84 | 63.96 | 6.55 | 205.18 | 0.2534 | -925.0 | -711.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -19.85 | 63.80 | 6.39 | 204.65 | 0.2523 | -862.0 | -672.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
