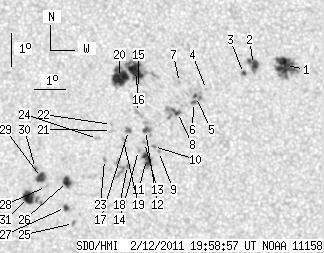

SDO HMI 2011-02-12 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 103.35 | 215.21 | 54.76 | 114.19 | -20.21 | 34.97 | -16.38 | 132.22 | 0.3575 | -51.4 | 62.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-12 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.56 | 32.09 | 11.15 | 16.59 | -18.82 | 39.58 | -11.77 | 137.70 | 0.2882 | 1108.1 | 708.8 | |
| 7.87 | 10.78 | 4.08 | 5.59 | -18.77 | 38.57 | -12.79 | 135.28 | 0.2993 | 981.0 | 601.2 | |
| 1.37 | 2.48 | 0.71 | 1.29 | -19.03 | 38.22 | -13.13 | 135.21 | 0.3063 | 744.8 | 582.6 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -19.49 | 36.99 | -14.37 | 133.84 | 0.3258 | 711.0 | 482.1 | |
| 1.11 | 7.62 | 0.58 | 4.00 | -19.69 | 36.62 | -14.74 | 133.61 | 0.3324 | 863.0 | 706.8 | |
| 1.45 | -5.00 | 0.76 | -5.00 | -19.87 | 36.53 | -14.82 | 133.87 | 0.3353 | 802.6 | 999999 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -19.25 | 36.14 | -15.22 | 131.72 | 0.3336 | -785.0 | -463.3 | |
| 1.37 | 10.78 | 0.72 | 5.69 | -20.16 | 35.98 | -15.37 | 133.54 | 0.3449 | 970.1 | 638.8 | |
| 0.00 | 1.03 | 0.00 | 0.55 | -21.33 | 35.23 | -16.12 | 134.77 | 0.3660 | 950.0 | 786.1 | |
| 0.00 | 1.71 | 0.00 | 0.91 | -21.17 | 35.09 | -16.27 | 134.20 | 0.3660 | 1052.0 | 918.8 | |
| 6.93 | 10.27 | 3.70 | 5.48 | -21.56 | 34.81 | -16.55 | 134.55 | 0.3734 | 1007.9 | 697.6 | |
| 2.57 | 5.90 | 1.36 | 3.13 | -20.67 | 34.88 | -16.48 | 132.80 | 0.3633 | 931.0 | 600.0 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -21.04 | 34.80 | -16.55 | 133.46 | 0.3680 | 938.0 | 684.2 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -21.27 | 34.58 | -16.78 | 133.59 | 0.3731 | 800.0 | 697.8 | |
| 0.00 | 4.53 | 0.00 | 2.41 | -20.12 | 34.68 | -16.68 | 131.27 | 0.3602 | -758.0 | -475.9 | |
| 14.20 | 59.64 | 7.50 | 31.52 | -18.84 | 34.75 | -16.61 | 128.45 | 0.3470 | -1169.8 | -693.7 | |
| 0.94 | 3.08 | 0.50 | 1.64 | -20.65 | 34.32 | -17.04 | 131.88 | 0.3699 | 953.5 | 751.0 | |
| 1.20 | 10.87 | 0.64 | 5.83 | -21.72 | 34.16 | -17.20 | 133.85 | 0.3826 | 896.6 | 625.6 | |
| 0.00 | 1.97 | 0.00 | 1.05 | -20.95 | 34.12 | -17.24 | 132.20 | 0.3753 | 807.0 | 695.3 | |
| 18.40 | -16.00 | 9.74 | -16.00 | -19.04 | 34.20 | -17.16 | 128.08 | 0.3558 | -973.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -20.64 | 33.76 | -17.60 | 130.98 | 0.3765 | 759.0 | 625.6 | |
| 0.00 | 0.60 | 0.00 | 0.32 | -20.45 | 33.78 | -17.58 | 130.62 | 0.3744 | 612.0 | 519.0 | |
| 0.00 | 1.71 | 0.00 | 0.92 | -21.51 | 33.42 | -17.94 | 132.30 | 0.3892 | 627.0 | 443.6 | |
| 0.00 | 1.88 | 0.00 | 1.01 | -20.86 | 33.26 | -18.09 | 130.74 | 0.3847 | 965.0 | 588.7 | |
| 0.00 | 1.97 | 0.00 | 1.08 | -23.44 | 32.10 | -19.26 | 134.16 | 0.4236 | -983.0 | -803.5 | |
| 5.05 | 8.81 | 2.74 | 4.78 | -22.14 | 32.09 | -19.27 | 131.68 | 0.4111 | -1084.1 | -651.9 | |
| 2.82 | 3.17 | 1.54 | 1.73 | -22.93 | 31.90 | -19.46 | 132.95 | 0.4209 | -936.0 | -843.0 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -22.27 | 31.36 | -20.00 | 130.96 | 0.4210 | -862.0 | -668.1 | |
| 6.16 | 7.79 | 3.36 | 4.25 | -21.98 | 31.23 | -20.13 | 130.24 | 0.4199 | -1143.7 | -794.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -21.70 | 31.07 | -20.29 | 129.48 | 0.4193 | -963.0 | -812.7 | |
| 10.35 | 17.28 | 5.68 | 9.48 | -22.58 | 30.69 | -20.66 | 130.72 | 0.4317 | -1001.2 | -738.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
