SDO HMI 2011-02-12 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.13 | 35.93 | 4.40 | 19.40 | -20.13 | 70.39 | 19.58 | 232.37 | 0.3977 | 364.9 | 385.7 | |
|
previous
or next observation for the same group /

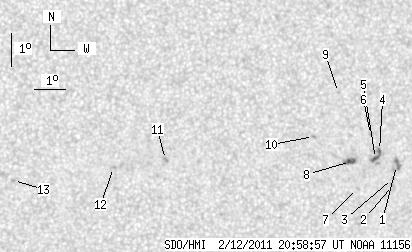

back to the solar disc SDO HMI 2011-02-12 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.93 | 0.00 | 3.78 | -20.22 | 72.30 | 21.49 | 234.94 | 0.4217 | 739.0 | 806.4 | |
| 0.00 | 1.80 | 0.00 | 0.98 | -20.83 | 72.25 | 21.44 | 233.64 | 0.4261 | 622.0 | 378.8 | |
| 0.00 | 0.86 | 0.00 | 0.47 | -20.62 | 72.22 | 21.41 | 234.04 | 0.4240 | 732.0 | 602.6 | |
| 1.37 | 10.01 | 0.74 | 5.43 | -19.79 | 71.66 | 20.85 | 235.12 | 0.4101 | 878.7 | 620.8 | |
| 2.48 | -4.00 | 1.35 | -4.00 | -20.04 | 71.56 | 20.75 | 234.48 | 0.4108 | 1025.9 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.65 | -19.32 | 71.30 | 20.49 | 235.72 | 0.4015 | 886.0 | 634.9 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -20.97 | 71.08 | 20.28 | 231.97 | 0.4126 | 694.0 | 576.9 | |
| 4.28 | 6.50 | 2.31 | 3.51 | -20.16 | 70.74 | 19.93 | 233.23 | 0.4012 | 1007.7 | 872.4 | |
| 0.00 | 1.11 | 0.00 | 0.59 | -18.09 | 70.08 | 19.28 | 237.03 | 0.3756 | 798.0 | 629.8 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -19.45 | 69.41 | 18.61 | 233.06 | 0.3781 | -880.0 | -628.4 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -20.30 | 64.65 | 13.85 | 223.31 | 0.3287 | -912.0 | -771.5 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -20.58 | 62.99 | 12.19 | 219.21 | 0.3140 | -977.0 | -873.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -21.05 | 59.81 | 9.00 | 210.39 | 0.2899 | -811.0 | -627.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
