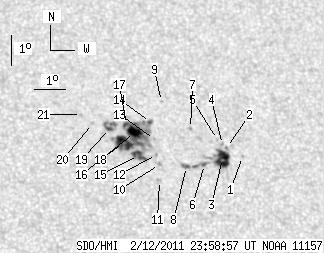

SDO HMI 2011-02-12 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.28 | 147.83 | 32.81 | 84.75 | 19.69 | 63.86 | 14.70 | 331.59 | 0.5042 | 220.7 | 183.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-12 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.60 | 0.00 | 0.35 | 19.41 | 66.75 | 17.59 | 326.78 | 0.5225 | -520.0 | -497.1 | |
| 0.00 | 1.20 | 0.00 | 0.69 | 19.68 | 66.25 | 17.10 | 327.82 | 0.5219 | -621.0 | -478.1 | |
| 16.61 | 24.91 | 9.59 | 14.37 | 19.32 | 66.08 | 16.93 | 327.68 | 0.5160 | -949.4 | -654.9 | |
| 0.00 | 1.37 | 0.00 | 0.79 | 19.78 | 66.13 | 16.98 | 328.10 | 0.5221 | -467.0 | -405.8 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 19.94 | 65.99 | 16.83 | 328.50 | 0.5230 | -552.0 | -429.4 | |
| 1.54 | 6.16 | 0.88 | 3.54 | 19.10 | 65.47 | 16.32 | 328.38 | 0.5084 | -722.7 | -692.1 | |
| 0.00 | 0.68 | 0.00 | 0.40 | 20.27 | 65.14 | 15.98 | 330.14 | 0.5207 | -759.0 | -646.0 | |
| 0.86 | 4.11 | 0.49 | 2.35 | 19.01 | 64.88 | 15.72 | 329.22 | 0.5027 | -730.1 | -588.6 | |
| 0.00 | 0.94 | 0.00 | 0.55 | 21.14 | 64.28 | 15.12 | 332.32 | 0.5258 | 519.0 | 415.3 | |
| 0.00 | 1.46 | 0.00 | 0.83 | 19.05 | 64.00 | 14.85 | 330.67 | 0.4966 | 770.0 | 602.3 | |
| 0.00 | 2.05 | 0.00 | 1.17 | 18.52 | 63.96 | 14.80 | 330.20 | 0.4893 | 631.0 | 534.2 | |
| 0.00 | 0.77 | 0.00 | 0.44 | 19.37 | 63.94 | 14.78 | 331.12 | 0.5003 | -603.0 | -519.6 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 19.87 | 63.92 | 14.76 | 331.65 | 0.5067 | 358.0 | 257.2 | |
| 1.63 | 89.62 | 0.94 | 51.27 | 20.43 | 63.84 | 14.69 | 332.32 | 0.5135 | 556.2 | 375.3 | |
| 7.36 | -14.00 | 4.19 | -14.00 | 19.32 | 63.35 | 14.19 | 332.04 | 0.4954 | 930.3 | 999999 | |
| 9.93 | -14.00 | 5.69 | -14.00 | 20.08 | 63.29 | 14.13 | 332.88 | 0.5051 | 904.9 | 999999 | |
| 1.46 | -14.00 | 0.83 | -14.00 | 20.34 | 63.05 | 13.90 | 333.51 | 0.5069 | 735.7 | 999999 | |
| 15.49 | -14.00 | 8.83 | -14.00 | 19.74 | 62.90 | 13.74 | 333.19 | 0.4978 | 1044.2 | 999999 | |
| 2.40 | 9.93 | 1.37 | 5.68 | 20.19 | 62.49 | 13.33 | 334.31 | 0.5011 | 893.6 | 759.3 | |
| 0.00 | 1.11 | 0.00 | 0.64 | 20.34 | 61.95 | 12.79 | 335.35 | 0.4997 | 808.0 | 630.8 | |
| 0.00 | 1.03 | 0.00 | 0.59 | 20.63 | 61.62 | 12.46 | 336.16 | 0.5017 | 748.0 | 621.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
