SDO HMI 2011-02-13 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.04 | 39.04 | 7.95 | 22.19 | 19.35 | 34.35 | -13.71 | 27.06 | 0.4931 | -332.5 | -22.7 | |
|
previous
or next observation for the same group /

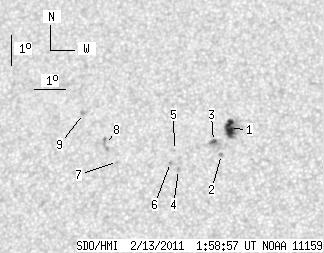

back to the solar disc SDO HMI 2011-02-13 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.90 | 20.80 | 6.74 | 11.79 | 19.57 | 35.43 | -12.63 | 25.07 | 0.4883 | -959.9 | -552.4 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 18.72 | 35.24 | -12.82 | 26.21 | 0.4780 | -1022.0 | -858.5 | |
| 2.14 | 5.39 | 1.21 | 3.05 | 19.16 | 34.95 | -13.11 | 26.29 | 0.4858 | -566.8 | -384.5 | |
| 0.00 | 1.63 | 0.00 | 0.92 | 18.27 | 33.89 | -14.17 | 29.00 | 0.4814 | 852.0 | 604.9 | |
| 0.00 | 0.51 | 0.00 | 0.29 | 18.90 | 33.71 | -14.35 | 28.65 | 0.4910 | -649.0 | -427.5 | |
| 0.00 | 1.03 | 0.00 | 0.58 | 18.51 | 33.62 | -14.44 | 29.22 | 0.4866 | 765.0 | 637.6 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 18.60 | 31.89 | -16.17 | 31.93 | 0.5010 | 801.0 | 679.1 | |
| 0.00 | 4.45 | 0.00 | 2.56 | 19.17 | 31.44 | -16.62 | 32.00 | 0.5118 | 670.0 | 720.4 | |
| 0.00 | 2.40 | 0.00 | 1.40 | 20.22 | 30.60 | -17.46 | 32.13 | 0.5315 | 767.0 | 602.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
