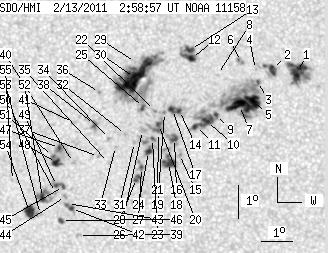

SDO HMI 2011-02-13 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 185.13 | 507.12 | 96.33 | 263.88 | -19.91 | 35.38 | -12.13 | 139.80 | 0.3056 | -38.7 | -87.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-13 02:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.27 | 37.33 | 9.84 | 19.08 | -18.69 | 39.56 | -7.96 | 147.78 | 0.2471 | 1091.2 | 689.9 | |
| 5.74 | 11.13 | 2.94 | 5.70 | -18.61 | 38.77 | -8.74 | 145.17 | 0.2534 | 1104.0 | 713.1 | |
| 1.20 | 138.55 | 0.62 | 71.47 | -18.97 | 38.28 | -9.24 | 144.55 | 0.2630 | 753.5 | 148.3 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -18.60 | 38.23 | -9.28 | 143.57 | 0.2585 | -503.0 | -347.4 | |
| 11.73 | -3.00 | 6.04 | -3.00 | -19.57 | 38.11 | -9.40 | 145.46 | 0.2727 | 1149.0 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -18.35 | 37.77 | -9.74 | 141.64 | 0.2600 | 745.0 | 641.8 | |
| 18.32 | -3.00 | 9.45 | -3.00 | -19.68 | 37.66 | -9.85 | 144.47 | 0.2785 | 1008.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -18.73 | 37.02 | -10.49 | 140.56 | 0.2727 | -443.0 | -344.2 | |
| 1.80 | -3.00 | 0.93 | -3.00 | -19.94 | 36.91 | -10.60 | 143.09 | 0.2893 | 813.4 | 999999 | |
| 6.51 | -3.00 | 3.37 | -3.00 | -20.15 | 36.57 | -10.94 | 142.71 | 0.2954 | 1098.9 | 999999 | |
| 2.74 | -3.00 | 1.42 | -3.00 | -20.29 | 36.21 | -11.30 | 142.14 | 0.3009 | 766.2 | 999999 | |
| 3.85 | 17.30 | 1.98 | 8.91 | -18.23 | 36.23 | -11.29 | 137.29 | 0.2753 | -1065.2 | -903.8 | |
| 4.02 | -12.00 | 2.07 | -12.00 | -17.96 | 36.21 | -11.30 | 136.54 | 0.2723 | -1109.1 | 999999 | |
| 1.97 | 12.50 | 1.02 | 6.49 | -19.80 | 35.73 | -11.78 | 139.91 | 0.2997 | -873.3 | -445.3 | |
| 0.00 | 2.57 | 0.00 | 1.34 | -21.13 | 35.63 | -11.89 | 142.57 | 0.3175 | 929.0 | 716.6 | |
| 3.68 | 22.95 | 1.92 | 11.96 | -20.64 | 35.51 | -12.01 | 141.27 | 0.3125 | 995.1 | -145.9 | |
| 3.94 | -14.00 | 2.05 | -14.00 | -19.76 | 35.51 | -12.00 | 139.32 | 0.3016 | -1001.6 | 999999 | |
| 11.39 | 15.50 | 5.96 | 8.11 | -21.37 | 35.25 | -12.26 | 142.21 | 0.3242 | 961.9 | 713.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -19.84 | 35.25 | -12.27 | 138.92 | 0.3055 | -1047.0 | -867.8 | |
| 1.63 | -16.00 | 0.85 | -16.00 | -20.20 | 35.03 | -12.49 | 139.24 | 0.3123 | -1042.3 | 999999 | |
| 0.60 | -16.00 | 0.31 | -16.00 | -20.45 | 35.01 | -12.51 | 139.74 | 0.3154 | -529.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -19.78 | 34.93 | -12.58 | 138.07 | 0.3082 | -796.0 | -643.7 | |
| 1.28 | 7.62 | 0.67 | 3.99 | -20.63 | 34.80 | -12.72 | 139.67 | 0.3198 | 876.9 | 721.9 | |
| 3.60 | 7.19 | 1.88 | 3.77 | -21.02 | 34.63 | -12.88 | 140.16 | 0.3263 | 981.5 | 857.7 | |
| 1.97 | 118.17 | 1.03 | 61.40 | -19.68 | 34.58 | -12.93 | 137.10 | 0.3109 | 585.8 | -420.0 | |
| 0.00 | 3.51 | 0.00 | 1.83 | -20.37 | 34.49 | -13.02 | 138.48 | 0.3201 | -252.0 | -286.6 | |
| 1.11 | 4.80 | 0.58 | 2.52 | -21.50 | 34.36 | -13.15 | 140.59 | 0.3350 | 746.6 | 593.0 | |
| 4.45 | 5.31 | 2.34 | 2.80 | -21.83 | 34.17 | -13.35 | 140.86 | 0.3411 | 809.0 | 658.1 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -18.31 | 34.44 | -13.08 | 133.44 | 0.2972 | -656.0 | -571.8 | |
| 41.53 | -25.00 | 21.57 | -25.00 | -18.76 | 34.37 | -13.14 | 134.44 | 0.3030 | -1214.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -20.73 | 34.20 | -13.31 | 138.66 | 0.3275 | 755.0 | 569.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -20.48 | 33.93 | -13.58 | 137.57 | 0.3275 | 819.0 | 643.0 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -20.84 | 33.57 | -13.94 | 137.63 | 0.3356 | 381.0 | 413.4 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -20.59 | 33.40 | -14.11 | 136.76 | 0.3347 | 731.0 | 551.6 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -21.32 | 33.30 | -14.22 | 138.12 | 0.3442 | 622.0 | 456.5 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -19.18 | 33.21 | -14.31 | 133.17 | 0.3215 | -748.0 | -588.1 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -21.13 | 32.99 | -14.52 | 137.13 | 0.3454 | 576.0 | 313.9 | |
| 2.40 | 4.62 | 1.26 | 2.43 | -20.15 | 32.95 | -14.56 | 134.94 | 0.3349 | 959.8 | 703.6 | |
| 0.00 | 2.40 | 0.00 | 1.28 | -23.53 | 32.06 | -15.45 | 140.16 | 0.3830 | -881.0 | -688.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -21.29 | 32.15 | -15.36 | 135.94 | 0.3566 | -535.0 | -449.5 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -20.07 | 32.28 | -15.24 | 133.52 | 0.3419 | 171.0 | 230.2 | |
| 1.97 | 6.42 | 1.05 | 3.43 | -22.69 | 31.93 | -15.59 | 138.37 | 0.3748 | -1083.0 | -904.0 | |
| 0.60 | -42.00 | 0.32 | -42.00 | -22.54 | 31.81 | -15.70 | 137.86 | 0.3742 | -1112.9 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.10 | -22.32 | 31.77 | -15.74 | 137.37 | 0.3722 | -973.0 | -794.4 | |
| 1.54 | 7.02 | 0.82 | 3.74 | -22.01 | 31.74 | -15.77 | 136.71 | 0.3691 | -966.0 | -968.8 | |
| 2.57 | 2.83 | 1.38 | 1.51 | -23.05 | 31.55 | -15.96 | 138.40 | 0.3829 | -842.6 | -540.7 | |
| 1.97 | 25.35 | 1.04 | 13.44 | -20.82 | 31.74 | -15.77 | 134.23 | 0.3562 | -854.0 | -409.4 | |
| 5.22 | -47.00 | 2.77 | -47.00 | -21.27 | 31.59 | -15.92 | 134.94 | 0.3627 | -1023.8 | 999999 | |
| 1.54 | -45.00 | 0.82 | -45.00 | -21.97 | 31.51 | -16.00 | 136.25 | 0.3713 | -1208.5 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.37 | -22.19 | 31.45 | -16.06 | 136.57 | 0.3743 | -894.0 | -806.4 | |
| 1.63 | -47.00 | 0.86 | -47.00 | -21.08 | 31.48 | -16.03 | 134.36 | 0.3620 | -824.2 | 999999 | |
| 3.94 | 15.16 | 2.11 | 8.11 | -22.33 | 31.00 | -16.51 | 136.10 | 0.3808 | -1043.2 | -789.6 | |
| 0.00 | 1.28 | 0.00 | 0.69 | -22.85 | 30.87 | -16.64 | 136.90 | 0.3879 | -725.0 | -441.1 | |
| 9.42 | 13.10 | 5.06 | 7.04 | -22.74 | 30.52 | -17.00 | 136.13 | 0.3907 | -913.7 | -664.1 | |
| 0.00 | 0.94 | 0.00 | 0.51 | -21.77 | 30.07 | -17.44 | 133.53 | 0.3856 | -687.0 | -536.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
