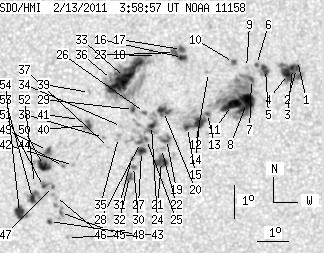

SDO HMI 2011-02-13 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 207.31 | 555.80 | 107.71 | 288.52 | -19.87 | 35.45 | -11.52 | 141.12 | 0.2986 | -0.7 | -88.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-13 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.57 | -18.34 | 39.84 | -7.13 | 149.74 | 0.2348 | 102.0 | 123.5 | |
| 1.71 | 34.51 | 0.87 | 17.61 | -18.58 | 39.80 | -7.17 | 150.13 | 0.2387 | 1101.4 | 761.2 | |
| 3.08 | -2.00 | 1.57 | -2.00 | -18.58 | 39.67 | -7.30 | 149.70 | 0.2397 | 1332.1 | 999999 | |
| 10.11 | -2.00 | 5.16 | -2.00 | -18.76 | 39.51 | -7.46 | 149.55 | 0.2437 | 1087.4 | 999999 | |
| 5.48 | 11.99 | 2.80 | 6.13 | -18.59 | 38.82 | -8.15 | 146.96 | 0.2475 | 1146.3 | 767.9 | |
| 1.37 | -5.00 | 0.70 | -5.00 | -18.44 | 38.55 | -8.42 | 145.73 | 0.2479 | 744.4 | 999999 | |
| 2.57 | 118.18 | 1.32 | 60.74 | -18.89 | 38.36 | -8.60 | 146.23 | 0.2558 | 703.2 | 114.0 | |
| 17.98 | -7.00 | 9.24 | -7.00 | -19.61 | 38.17 | -8.80 | 147.25 | 0.2677 | 1184.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -18.52 | 38.23 | -8.74 | 144.96 | 0.2522 | -573.0 | -329.9 | |
| 1.97 | 2.83 | 1.01 | 1.45 | -18.37 | 37.82 | -9.14 | 143.38 | 0.2540 | 910.5 | 643.0 | |
| 13.27 | -7.00 | 6.83 | -7.00 | -19.67 | 37.69 | -9.28 | 146.00 | 0.2728 | 991.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -18.65 | 37.02 | -9.95 | 141.80 | 0.2660 | -706.0 | -598.0 | |
| 1.71 | 37.42 | 0.88 | 19.36 | -19.90 | 36.91 | -10.06 | 144.38 | 0.2833 | 708.5 | 165.0 | |
| 9.85 | -13.00 | 5.09 | -13.00 | -20.16 | 36.63 | -10.33 | 144.25 | 0.2895 | 1022.2 | 999999 | |
| 3.25 | -13.00 | 1.69 | -13.00 | -20.31 | 36.24 | -10.73 | 143.56 | 0.2953 | 733.5 | 999999 | |
| 3.34 | 23.21 | 1.72 | 11.93 | -18.18 | 36.22 | -10.75 | 138.51 | 0.2687 | -1043.7 | -645.8 | |
| 2.91 | -16.00 | 1.50 | -16.00 | -17.94 | 36.20 | -10.76 | 137.84 | 0.2659 | -1238.2 | 999999 | |
| 3.85 | -16.00 | 1.98 | -16.00 | -18.03 | 35.98 | -10.99 | 137.49 | 0.2695 | -965.7 | 999999 | |
| 4.11 | 9.85 | 2.14 | 5.12 | -20.66 | 35.54 | -11.43 | 142.62 | 0.3068 | 973.0 | 523.6 | |
| 7.45 | 58.58 | 3.86 | 30.49 | -19.80 | 35.50 | -11.46 | 140.67 | 0.2964 | -1102.1 | -154.7 | |
| 10.96 | 16.01 | 5.72 | 8.36 | -21.33 | 35.32 | -11.64 | 143.50 | 0.3175 | 981.0 | 712.1 | |
| 0.00 | 3.25 | 0.00 | 1.70 | -20.93 | 35.35 | -11.61 | 142.76 | 0.3121 | 967.0 | 770.1 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -18.11 | 35.40 | -11.57 | 136.28 | 0.2770 | 715.0 | 357.6 | |
| 2.14 | -20.00 | 1.11 | -20.00 | -20.22 | 35.09 | -11.88 | 140.63 | 0.3059 | -1051.1 | 999999 | |
| 1.71 | -20.00 | 0.89 | -20.00 | -20.64 | 34.89 | -12.08 | 141.11 | 0.3132 | 822.0 | 999999 | |
| 1.28 | 2.74 | 0.67 | 1.42 | -19.82 | 34.89 | -12.07 | 139.29 | 0.3031 | -742.4 | -179.6 | |
| 4.97 | -20.00 | 2.60 | -20.00 | -21.01 | 34.70 | -12.27 | 141.45 | 0.3197 | 937.1 | 999999 | |
| 2.23 | -20.00 | 1.16 | -20.00 | -20.73 | 34.69 | -12.28 | 140.85 | 0.3164 | 929.2 | 999999 | |
| 1.54 | 125.89 | 0.80 | 65.28 | -19.72 | 34.55 | -12.42 | 138.29 | 0.3057 | 529.8 | -339.6 | |
| 0.69 | 2.06 | 0.36 | 1.08 | -21.46 | 34.40 | -12.57 | 141.73 | 0.3284 | 875.2 | 646.9 | |
| 0.94 | 1.20 | 0.49 | 0.63 | -21.21 | 34.36 | -12.61 | 141.13 | 0.3258 | 636.5 | 580.0 | |
| 4.37 | 6.08 | 2.29 | 3.19 | -21.76 | 34.24 | -12.72 | 142.00 | 0.3337 | 836.4 | 613.5 | |
| 44.10 | -29.00 | 22.87 | -29.00 | -18.75 | 34.33 | -12.63 | 135.49 | 0.2968 | -1200.1 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -20.23 | 34.12 | -12.85 | 138.51 | 0.3164 | -703.0 | -554.4 | |
| 0.00 | 3.60 | 0.00 | 1.88 | -20.56 | 33.99 | -12.98 | 138.98 | 0.3218 | 673.0 | 627.3 | |
| 1.20 | -29.00 | 0.62 | -29.00 | -18.80 | 33.91 | -13.05 | 134.71 | 0.3023 | -774.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -20.86 | 33.64 | -13.33 | 138.89 | 0.3291 | 603.0 | 456.2 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -20.55 | 33.51 | -13.46 | 137.95 | 0.3269 | 833.0 | 604.9 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -19.17 | 33.17 | -13.79 | 134.13 | 0.3151 | -802.0 | -569.1 | |
| 5.05 | 7.36 | 2.65 | 3.86 | -20.17 | 33.02 | -13.95 | 136.15 | 0.3280 | 1002.8 | 513.5 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -19.98 | 32.78 | -14.19 | 135.25 | 0.3287 | 860.0 | 662.1 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -21.38 | 32.45 | -14.52 | 137.65 | 0.3481 | -895.0 | -632.9 | |
| 0.00 | 1.37 | 0.00 | 0.73 | -23.58 | 32.01 | -14.96 | 141.11 | 0.3785 | -931.0 | -679.9 | |
| 0.94 | 2.74 | 0.50 | 1.45 | -21.40 | 32.12 | -14.85 | 137.08 | 0.3520 | -687.6 | -304.0 | |
| 1.28 | 7.19 | 0.68 | 3.83 | -22.80 | 31.86 | -15.10 | 139.42 | 0.3709 | -961.8 | -895.2 | |
| 0.00 | 3.25 | 0.00 | 1.73 | -22.31 | 31.75 | -15.21 | 138.27 | 0.3663 | -774.0 | -725.3 | |
| 1.03 | 10.19 | 0.55 | 5.42 | -22.00 | 31.72 | -15.25 | 137.60 | 0.3632 | -980.9 | -846.9 | |
| 2.06 | 2.14 | 1.10 | 1.14 | -23.07 | 31.47 | -15.50 | 139.22 | 0.3781 | -884.1 | -771.0 | |
| 3.17 | 23.98 | 1.68 | 12.70 | -20.89 | 31.64 | -15.32 | 135.17 | 0.3518 | -892.7 | -591.5 | |
| 9.33 | -49.00 | 4.95 | -49.00 | -21.35 | 31.46 | -15.50 | 135.81 | 0.3588 | -1083.7 | 999999 | |
| 1.80 | -47.00 | 0.96 | -47.00 | -21.99 | 31.39 | -15.58 | 137.00 | 0.3667 | -1129.0 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.36 | -21.89 | 31.11 | -15.86 | 136.30 | 0.3688 | -605.0 | -507.0 | |
| 3.60 | 14.47 | 1.92 | 7.72 | -22.35 | 30.99 | -15.98 | 137.01 | 0.3751 | -1031.5 | -791.4 | |
| 8.91 | 13.10 | 4.78 | 7.03 | -22.76 | 30.50 | -16.47 | 137.01 | 0.3850 | -922.1 | -719.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
