SDO HMI 2011-02-13 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 223.65 | 622.19 | 115.78 | 321.88 | -19.96 | 35.08 | -10.25 | 144.59 | 0.2870 | -47.6 | -48.9 | |
|
previous
or next observation for the same group /

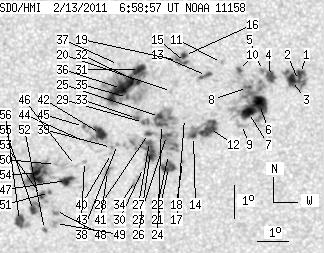

back to the solar disc SDO HMI 2011-02-13 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.71 | 32.21 | 2.39 | 16.38 | -18.48 | 39.80 | -5.54 | 155.84 | 0.2246 | 1179.2 | 808.0 | |
| 1.88 | -1.00 | 0.96 | -1.00 | -18.69 | 39.73 | -5.60 | 155.98 | 0.2283 | 1009.5 | 999999 | |
| 7.20 | -1.00 | 3.66 | -1.00 | -18.69 | 39.51 | -5.82 | 155.15 | 0.2298 | 1212.8 | 999999 | |
| 7.54 | 8.39 | 3.84 | 4.27 | -18.56 | 38.85 | -6.48 | 152.50 | 0.2327 | 1128.3 | 874.5 | |
| 0.00 | 2.83 | 0.00 | 1.44 | -18.37 | 38.61 | -6.72 | 151.23 | 0.2319 | 995.0 | 585.8 | |
| 18.16 | 90.63 | 9.28 | 46.34 | -19.40 | 38.47 | -6.86 | 152.88 | 0.2483 | 1236.8 | 316.1 | |
| 11.56 | -6.00 | 5.92 | -6.00 | -19.64 | 38.11 | -7.22 | 152.16 | 0.2546 | 1101.7 | 999999 | |
| 2.66 | -6.00 | 1.36 | -6.00 | -18.88 | 38.12 | -7.22 | 150.63 | 0.2434 | 698.3 | 999999 | |
| 0.00 | 6.25 | 0.00 | 3.21 | -20.00 | 37.87 | -7.46 | 152.09 | 0.2618 | 691.0 | 588.8 | |
| 1.88 | 5.14 | 0.96 | 2.62 | -18.36 | 37.89 | -7.45 | 148.71 | 0.2379 | 893.0 | 358.9 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -18.11 | 37.33 | -8.00 | 146.29 | 0.2394 | -912.0 | -681.0 | |
| 15.33 | 36.06 | 7.89 | 18.57 | -20.11 | 36.85 | -8.48 | 149.20 | 0.2717 | 1008.6 | 224.9 | |
| 4.20 | 5.65 | 2.15 | 2.89 | -18.50 | 36.84 | -8.49 | 145.66 | 0.2494 | -979.1 | -555.1 | |
| 1.63 | -12.00 | 0.84 | -12.00 | -20.34 | 36.33 | -9.00 | 148.18 | 0.2796 | 730.4 | 999999 | |
| 1.46 | 13.45 | 0.74 | 6.88 | -18.10 | 36.20 | -9.13 | 142.73 | 0.2503 | -973.1 | -876.5 | |
| 2.74 | -15.00 | 1.40 | -15.00 | -17.88 | 36.18 | -9.15 | 142.13 | 0.2477 | -1148.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -19.79 | 36.07 | -9.26 | 146.32 | 0.2743 | -546.0 | -321.9 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -21.10 | 35.93 | -9.40 | 148.57 | 0.2936 | 955.0 | 817.5 | |
| 0.60 | -15.00 | 0.31 | -15.00 | -18.03 | 35.95 | -9.38 | 141.84 | 0.2520 | -1192.9 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -18.96 | 35.71 | -9.62 | 143.45 | 0.2667 | -879.0 | -687.0 | |
| 11.05 | 12.76 | 5.73 | 6.62 | -21.27 | 35.47 | -9.87 | 147.69 | 0.3001 | 973.7 | 899.5 | |
| 0.00 | 2.14 | 0.00 | 1.11 | -20.88 | 35.49 | -9.84 | 146.99 | 0.2944 | 923.0 | 856.8 | |
| 4.80 | 73.58 | 2.48 | 38.00 | -20.30 | 35.47 | -9.87 | 145.75 | 0.2868 | -798.3 | -354.0 | |
| 4.11 | -23.00 | 2.12 | -23.00 | -19.96 | 35.33 | -10.00 | 144.66 | 0.2836 | -1115.7 | 999999 | |
| 2.57 | -23.00 | 1.33 | -23.00 | -19.71 | 35.28 | -10.05 | 144.00 | 0.2808 | -1150.4 | 999999 | |
| 11.05 | 41.37 | 5.73 | 21.46 | -20.77 | 34.92 | -10.41 | 145.33 | 0.2983 | 981.0 | 561.6 | |
| 1.80 | -26.00 | 0.93 | -26.00 | -20.47 | 34.91 | -10.42 | 144.67 | 0.2944 | -411.9 | 999999 | |
| 2.57 | 5.14 | 1.33 | 2.66 | -20.22 | 34.89 | -10.44 | 144.11 | 0.2913 | -1035.5 | -679.7 | |
| 1.11 | -23.00 | 0.58 | -23.00 | -19.89 | 34.76 | -10.57 | 143.03 | 0.2883 | -906.8 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -21.26 | 34.66 | -10.67 | 145.65 | 0.3072 | 827.0 | 589.8 | |
| 7.62 | 123.69 | 3.92 | 63.79 | -18.28 | 34.73 | -10.60 | 139.14 | 0.2682 | -1262.9 | -322.0 | |
| 1.46 | -31.00 | 0.75 | -31.00 | -18.67 | 34.68 | -10.65 | 139.98 | 0.2736 | 557.5 | 999999 | |
| 1.80 | -23.00 | 0.93 | -23.00 | -19.76 | 34.54 | -10.79 | 142.21 | 0.2888 | -1040.0 | 999999 | |
| 0.00 | 5.05 | 0.00 | 2.64 | -21.65 | 34.37 | -10.96 | 145.72 | 0.3151 | 835.0 | 761.9 | |
| 1.28 | -31.00 | 0.66 | -31.00 | -19.12 | 34.30 | -11.03 | 140.11 | 0.2832 | -819.0 | 999999 | |
| 26.04 | -31.00 | 13.44 | -31.00 | -18.84 | 34.13 | -11.21 | 139.02 | 0.2817 | -1277.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -18.11 | 34.08 | -11.25 | 137.06 | 0.2735 | -726.0 | -626.9 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -20.54 | 33.88 | -11.46 | 142.30 | 0.3055 | 884.0 | 690.4 | |
| 0.00 | 1.46 | 0.00 | 0.76 | -20.62 | 33.68 | -11.66 | 142.02 | 0.3086 | 720.0 | 576.5 | |
| 0.00 | 0.94 | 0.00 | 0.49 | -20.81 | 33.66 | -11.67 | 142.37 | 0.3111 | 638.0 | 486.5 | |
| 0.00 | 4.80 | 0.00 | 2.51 | -21.35 | 33.49 | -11.84 | 143.10 | 0.3198 | 430.0 | 466.6 | |
| 10.19 | 27.75 | 5.30 | 14.44 | -20.19 | 33.35 | -11.98 | 140.34 | 0.3066 | 1122.1 | 525.6 | |
| 0.00 | 1.37 | 0.00 | 0.72 | -21.03 | 32.77 | -12.56 | 140.85 | 0.3231 | 522.0 | 347.9 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -20.42 | 32.82 | -12.51 | 139.66 | 0.3151 | -60.0 | 68.2 | |
| 1.37 | -42.00 | 0.71 | -42.00 | -19.96 | 32.82 | -12.51 | 138.65 | 0.3095 | 798.2 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -21.14 | 32.46 | -12.87 | 140.45 | 0.3276 | 278.0 | 178.5 | |
| 8.05 | 12.93 | 4.23 | 6.80 | -21.60 | 32.13 | -13.20 | 140.68 | 0.3366 | -1075.4 | -501.2 | |
| 0.00 | 4.45 | 0.00 | 2.36 | -22.51 | 31.68 | -13.65 | 141.56 | 0.3523 | -659.0 | -876.2 | |
| 0.00 | 5.57 | 0.00 | 2.95 | -22.91 | 31.64 | -13.69 | 142.24 | 0.3576 | -1048.0 | -743.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -21.10 | 31.82 | -13.51 | 139.02 | 0.3339 | -944.0 | -727.3 | |
| 1.28 | 8.65 | 0.68 | 4.57 | -21.95 | 31.54 | -13.79 | 140.20 | 0.3470 | -1064.9 | -895.8 | |
| 0.69 | 1.46 | 0.36 | 0.77 | -23.08 | 31.26 | -14.07 | 141.82 | 0.3636 | -928.9 | -725.7 | |
| 3.17 | -51.00 | 1.68 | -51.00 | -22.03 | 31.27 | -14.06 | 139.84 | 0.3509 | -1125.7 | 999999 | |
| 27.24 | 50.45 | 14.36 | 26.59 | -21.36 | 31.20 | -14.13 | 138.35 | 0.3436 | -1102.3 | -631.9 | |
| 4.11 | 10.71 | 2.18 | 5.68 | -22.49 | 30.96 | -14.38 | 140.14 | 0.3595 | -1005.3 | -947.0 | |
| 8.74 | 13.88 | 4.65 | 7.39 | -22.78 | 30.46 | -14.87 | 139.79 | 0.3681 | -929.6 | -679.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
