SDO HMI 2011-02-13 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 66.04 | 195.33 | 39.05 | 115.21 | 19.71 | 63.92 | 19.68 | 324.22 | 0.5441 | 177.5 | 179.9 | |
|
previous
or next observation for the same group /

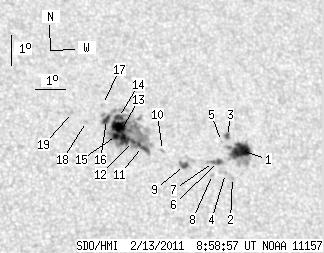

back to the solar disc SDO HMI 2011-02-13 08:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.70 | 38.21 | 11.81 | 22.89 | 19.43 | 66.78 | 22.54 | 320.11 | 0.5659 | -946.3 | -620.4 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 18.52 | 66.39 | 22.14 | 319.50 | 0.5526 | -1002.0 | -823.1 | |
| 2.31 | 3.17 | 1.39 | 1.90 | 19.87 | 66.41 | 22.17 | 321.10 | 0.5673 | -660.6 | -570.5 | |
| 0.00 | 0.69 | 0.00 | 0.41 | 18.64 | 66.17 | 21.92 | 319.93 | 0.5518 | -739.0 | -671.0 | |
| 0.00 | 0.94 | 0.00 | 0.56 | 19.69 | 66.18 | 21.94 | 321.18 | 0.5633 | -633.0 | -526.5 | |
| 2.57 | 6.68 | 1.53 | 3.96 | 19.03 | 65.98 | 21.74 | 320.63 | 0.5543 | -869.9 | -752.0 | |
| 1.46 | -6.00 | 0.86 | -6.00 | 18.99 | 65.81 | 21.57 | 320.81 | 0.5522 | -690.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.81 | 18.59 | 65.72 | 21.48 | 320.44 | 0.5471 | -742.0 | -564.7 | |
| 3.34 | 9.77 | 1.97 | 5.75 | 18.84 | 64.82 | 20.58 | 321.94 | 0.5416 | 798.0 | -35.1 | |
| 0.00 | 1.28 | 0.00 | 0.76 | 19.31 | 64.14 | 19.90 | 323.40 | 0.5409 | -634.0 | -461.4 | |
| 3.00 | 128.84 | 1.76 | 75.60 | 19.41 | 63.49 | 19.25 | 324.42 | 0.5364 | 735.8 | 423.1 | |
| 1.54 | -11.00 | 0.90 | -11.00 | 19.56 | 63.17 | 18.93 | 325.03 | 0.5356 | 906.0 | 999999 | |
| 20.13 | -11.00 | 11.80 | -11.00 | 19.88 | 62.81 | 18.57 | 325.89 | 0.5363 | 1142.9 | 999999 | |
| 3.51 | -11.00 | 2.07 | -11.00 | 20.34 | 62.80 | 18.56 | 326.41 | 0.5418 | 687.0 | 999999 | |
| 3.77 | -11.00 | 2.20 | -11.00 | 19.74 | 62.66 | 18.42 | 325.95 | 0.5334 | 1348.5 | 999999 | |
| 4.71 | -11.00 | 2.76 | -11.00 | 20.26 | 62.39 | 18.15 | 326.91 | 0.5375 | 890.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.71 | 20.75 | 62.32 | 18.08 | 327.54 | 0.5429 | 583.0 | 381.1 | |
| 0.00 | 1.46 | 0.00 | 0.85 | 20.17 | 61.72 | 17.48 | 327.78 | 0.5310 | 838.0 | 634.6 | |
| 0.00 | 0.86 | 0.00 | 0.50 | 20.45 | 61.29 | 17.05 | 328.71 | 0.5311 | 685.0 | 552.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
