SDO HMI 2011-02-13 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.13 | 34.69 | 9.59 | 19.44 | 19.50 | 34.25 | -9.44 | 19.25 | 0.4698 | -471.5 | -91.9 | |
|
previous
or next observation for the same group /

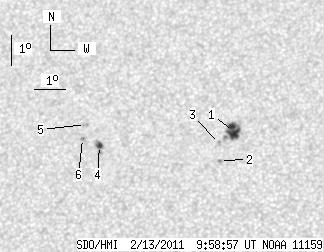

back to the solar disc SDO HMI 2011-02-13 09:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.05 | 21.41 | 7.85 | 11.96 | 19.61 | 35.58 | -8.11 | 16.71 | 0.4642 | -994.2 | -601.3 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 18.66 | 35.19 | -8.50 | 18.14 | 0.4520 | -1007.0 | -779.3 | |
| 0.00 | 1.88 | 0.00 | 1.05 | 19.22 | 35.16 | -8.53 | 17.79 | 0.4604 | -867.0 | -646.6 | |
| 3.08 | 6.60 | 1.74 | 3.72 | 19.24 | 31.33 | -12.36 | 24.89 | 0.4821 | 942.4 | 797.2 | |
| 0.00 | 2.23 | 0.00 | 1.27 | 19.95 | 30.83 | -12.87 | 25.13 | 0.4951 | 876.0 | 620.8 | |
| 0.00 | 1.20 | 0.00 | 0.68 | 19.49 | 30.77 | -12.93 | 25.65 | 0.4892 | 755.0 | 697.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
