SDO HMI 2011-02-13 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.34 | 24.08 | 3.70 | 13.80 | -20.35 | 70.31 | 27.71 | 240.04 | 0.5039 | 314.1 | 200.9 | |
|
previous
or next observation for the same group /

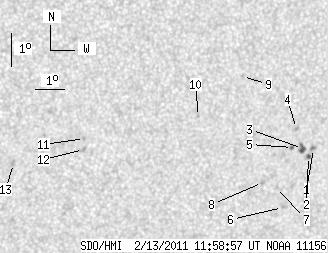

back to the solar disc SDO HMI 2011-02-13 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.97 | 0.00 | 1.15 | -20.05 | 72.84 | 30.24 | 242.59 | 0.5351 | 765.0 | 649.5 | |
| 1.63 | 2.23 | 0.95 | 1.30 | -20.31 | 72.71 | 30.11 | 242.07 | 0.5347 | 664.6 | 621.3 | |
| 3.60 | 4.88 | 2.10 | 2.85 | -20.08 | 72.44 | 29.85 | 242.31 | 0.5300 | 893.0 | 719.7 | |
| 0.00 | 1.80 | 0.00 | 1.04 | -19.48 | 72.11 | 29.51 | 243.16 | 0.5225 | 776.0 | 587.7 | |
| 1.11 | 1.46 | 0.65 | 0.85 | -20.07 | 72.08 | 29.48 | 242.09 | 0.5252 | 811.9 | 782.5 | |
| 0.00 | 1.37 | 0.00 | 0.80 | -21.91 | 72.12 | 29.52 | 238.89 | 0.5360 | 691.0 | 528.9 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -21.31 | 71.76 | 29.16 | 239.68 | 0.5280 | 554.0 | 525.7 | |
| 0.00 | 1.97 | 0.00 | 1.14 | -21.19 | 71.23 | 28.63 | 239.52 | 0.5205 | 808.0 | 592.9 | |
| 0.00 | 0.77 | 0.00 | 0.44 | -18.02 | 69.91 | 27.32 | 244.50 | 0.4855 | 740.0 | 503.7 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -19.30 | 68.59 | 25.99 | 241.05 | 0.4746 | -727.0 | -572.4 | |
| 0.00 | 1.03 | 0.00 | 0.56 | -20.15 | 64.80 | 22.20 | 235.90 | 0.4302 | -871.0 | -642.5 | |
| 0.00 | 1.63 | 0.00 | 0.89 | -20.48 | 64.81 | 22.22 | 235.24 | 0.4330 | -716.0 | -602.4 | |
| 0.00 | 2.40 | 0.00 | 1.30 | -21.01 | 62.52 | 19.92 | 231.49 | 0.4081 | -752.0 | -620.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
