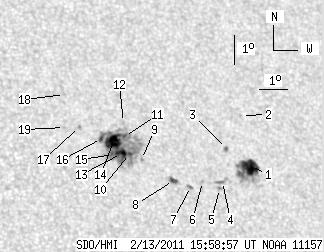

SDO HMI 2011-02-13 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.23 | 160.52 | 30.00 | 97.50 | 19.79 | 64.07 | 23.67 | 319.26 | 0.5806 | 222.8 | 164.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-13 15:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.06 | 37.50 | 11.24 | 23.28 | 19.51 | 67.28 | 26.88 | 315.28 | 0.6079 | -873.0 | -733.7 | |
| 0.00 | 0.60 | 0.00 | 0.38 | 21.20 | 67.28 | 26.88 | 317.30 | 0.6238 | -598.0 | -502.4 | |
| 0.43 | 1.97 | 0.27 | 1.22 | 20.06 | 66.53 | 26.13 | 316.74 | 0.6060 | -665.4 | -557.4 | |
| 0.00 | 5.05 | 0.00 | 3.10 | 18.96 | 66.20 | 25.80 | 315.75 | 0.5922 | -789.0 | -625.2 | |
| 0.00 | 1.63 | 0.00 | 0.99 | 18.72 | 66.06 | 25.66 | 315.61 | 0.5885 | -778.0 | -678.6 | |
| 0.00 | 0.77 | 0.00 | 0.47 | 18.92 | 65.50 | 25.10 | 316.48 | 0.5850 | -521.0 | -422.7 | |
| 0.86 | 2.05 | 0.52 | 1.25 | 18.73 | 65.05 | 24.66 | 316.75 | 0.5788 | 541.9 | 489.5 | |
| 3.17 | 3.94 | 1.91 | 2.38 | 18.90 | 64.50 | 24.10 | 317.60 | 0.5751 | 791.7 | 720.4 | |
| 0.00 | 1.28 | 0.00 | 0.77 | 19.54 | 63.50 | 23.10 | 319.56 | 0.5723 | 609.0 | 537.1 | |
| 1.46 | 102.30 | 0.88 | 61.60 | 19.72 | 63.12 | 22.72 | 320.24 | 0.5707 | 735.9 | 467.0 | |
| 1.11 | -10.00 | 0.67 | -10.00 | 20.28 | 63.03 | 22.63 | 321.00 | 0.5758 | 456.5 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.68 | 20.75 | 63.07 | 22.67 | 321.49 | 0.5812 | 471.0 | 361.4 | |
| 5.99 | -10.00 | 3.60 | -10.00 | 19.71 | 62.84 | 22.44 | 320.56 | 0.5680 | 1218.6 | 999999 | |
| 14.81 | -10.00 | 8.91 | -10.00 | 20.09 | 62.63 | 22.23 | 321.28 | 0.5702 | 1104.6 | 999999 | |
| 1.46 | -10.00 | 0.87 | -10.00 | 19.66 | 62.53 | 22.13 | 320.90 | 0.5647 | 1141.8 | 999999 | |
| 1.88 | -10.00 | 1.13 | -10.00 | 20.17 | 62.23 | 21.83 | 321.87 | 0.5676 | 874.2 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 20.54 | 61.54 | 21.14 | 323.17 | 0.5656 | 799.0 | 688.7 | |
| 0.00 | 0.60 | 0.00 | 0.36 | 21.59 | 61.18 | 20.79 | 324.78 | 0.5744 | 703.0 | 564.0 | |
| 0.00 | 0.86 | 0.00 | 0.51 | 20.48 | 61.02 | 20.62 | 323.77 | 0.5605 | 715.0 | 527.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
