SDO HMI 2011-02-13 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 304.15 | 1303.53 | 155.25 | 665.49 | -20.25 | 34.88 | -2.75 | 170.31 | 0.2432 | 4.0 | -26.2 | |
|
previous
or next observation for the same group /

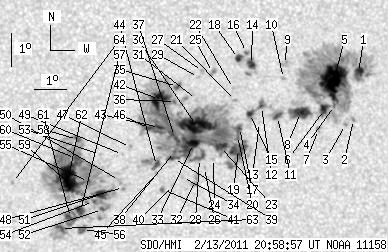

back to the solar disc SDO HMI 2011-02-13 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.02 | 343.60 | 3.55 | 173.99 | -18.40 | 39.85 | 2.21 | 190.26 | 0.2061 | 1231.8 | 427.9 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -19.83 | 39.71 | 2.07 | 188.54 | 0.2297 | -726.0 | -444.7 | |
| 0.00 | 1.88 | 0.00 | 0.96 | -19.98 | 39.46 | 1.82 | 187.43 | 0.2317 | -356.0 | -289.8 | |
| 1.71 | -1.00 | 0.87 | -1.00 | -19.40 | 39.11 | 1.47 | 186.30 | 0.2213 | 929.2 | 999999 | |
| 56.67 | -1.00 | 28.69 | -1.00 | -18.65 | 39.07 | 1.43 | 186.55 | 0.2083 | 1422.5 | 999999 | |
| 7.53 | -1.00 | 3.83 | -1.00 | -19.53 | 38.79 | 1.16 | 184.91 | 0.2228 | 1009.0 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.39 | -20.13 | 38.61 | 0.97 | 183.93 | 0.2329 | 959.0 | 636.1 | |
| 16.78 | -1.00 | 8.52 | -1.00 | -19.62 | 38.04 | 0.40 | 181.70 | 0.2237 | 1000.4 | 999999 | |
| 0.00 | 4.71 | 0.00 | 2.38 | -18.17 | 37.54 | -0.10 | 179.52 | 0.1987 | 293.0 | 346.5 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -18.59 | 37.51 | -0.13 | 179.40 | 0.2059 | 855.0 | 603.4 | |
| 3.77 | 31.42 | 1.91 | 15.96 | -19.74 | 37.32 | -0.32 | 178.66 | 0.2257 | 745.5 | -191.5 | |
| 1.11 | -11.00 | 0.56 | -11.00 | -19.44 | 36.82 | -0.82 | 176.47 | 0.2209 | -1054.8 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -19.92 | 36.75 | -0.89 | 176.34 | 0.2292 | 551.0 | 320.4 | |
| 4.88 | 17.46 | 2.47 | 8.82 | -18.16 | 36.51 | -1.13 | 174.60 | 0.1995 | -1180.8 | -607.8 | |
| 3.17 | -11.00 | 1.61 | -11.00 | -19.65 | 36.44 | -1.20 | 174.95 | 0.2249 | -970.6 | 999999 | |
| 1.63 | 2.05 | 0.82 | 1.04 | -17.80 | 36.36 | -1.28 | 173.67 | 0.1936 | -889.0 | -735.6 | |
| 3.25 | 512.06 | 1.66 | 261.06 | -20.07 | 36.12 | -1.52 | 173.83 | 0.2327 | -725.4 | 11.1 | |
| 3.25 | -14.00 | 1.64 | -14.00 | -17.98 | 36.11 | -1.53 | 172.57 | 0.1972 | -1172.3 | 999999 | |
| 15.07 | -17.00 | 7.69 | -17.00 | -20.74 | 36.08 | -1.56 | 174.00 | 0.2441 | 1143.1 | 999999 | |
| 3.60 | -17.00 | 1.83 | -17.00 | -20.31 | 36.06 | -1.58 | 173.69 | 0.2369 | 778.9 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.91 | -19.25 | 36.00 | -1.64 | 172.90 | 0.2190 | -979.0 | -697.0 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -18.89 | 35.94 | -1.69 | 172.42 | 0.2130 | -810.0 | -621.2 | |
| 7.36 | -17.00 | 3.76 | -17.00 | -20.65 | 35.51 | -2.12 | 171.78 | 0.2437 | 1046.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -21.01 | 35.29 | -2.35 | 171.16 | 0.2504 | 425.0 | 355.6 | |
| 0.00 | 3.51 | 0.00 | 1.78 | -18.40 | 35.29 | -2.34 | 169.12 | 0.2065 | -658.0 | -351.0 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -21.29 | 35.00 | -2.64 | 170.29 | 0.2557 | 730.0 | 589.8 | |
| 0.00 | 2.40 | 0.00 | 1.21 | -18.37 | 34.98 | -2.66 | 167.68 | 0.2071 | -346.0 | -255.9 | |
| 5.31 | -17.00 | 2.72 | -17.00 | -21.01 | 34.84 | -2.80 | 169.53 | 0.2516 | 833.2 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -18.55 | 34.86 | -2.78 | 167.31 | 0.2105 | 738.0 | 510.9 | |
| 34.50 | -17.00 | 17.57 | -17.00 | -20.00 | 34.77 | -2.87 | 168.40 | 0.2351 | -1304.1 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -19.22 | 34.78 | -2.86 | 167.70 | 0.2219 | -939.0 | -676.4 | |
| 0.00 | 7.53 | 0.00 | 3.87 | -21.68 | 34.70 | -2.94 | 169.53 | 0.2632 | 695.0 | 710.0 | |
| 6.59 | -17.00 | 3.37 | -17.00 | -20.55 | 34.66 | -2.98 | 168.48 | 0.2446 | 1286.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -21.59 | 34.29 | -3.35 | 168.03 | 0.2630 | 719.0 | 595.8 | |
| 2.82 | 4.28 | 1.43 | 2.17 | -18.82 | 34.19 | -3.44 | 164.78 | 0.2177 | -1135.6 | -723.6 | |
| 1.54 | -17.00 | 0.78 | -17.00 | -19.27 | 34.12 | -3.52 | 165.05 | 0.2255 | -835.1 | 999999 | |
| 8.05 | -17.00 | 4.11 | -17.00 | -20.33 | 34.07 | -3.57 | 166.03 | 0.2432 | 920.2 | 999999 | |
| 1.11 | -17.00 | 0.57 | -17.00 | -20.79 | 34.06 | -3.58 | 166.46 | 0.2507 | 777.0 | 999999 | |
| 4.11 | -17.00 | 2.10 | -17.00 | -21.01 | 34.02 | -3.62 | 166.54 | 0.2544 | 703.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -21.83 | 34.00 | -3.64 | 167.24 | 0.2680 | 625.0 | 566.4 | |
| 0.60 | 3.17 | 0.31 | 1.63 | -21.95 | 33.64 | -4.00 | 166.16 | 0.2714 | 848.1 | 703.6 | |
| 17.46 | -17.00 | 8.88 | -17.00 | -19.21 | 33.62 | -4.02 | 162.95 | 0.2268 | -1316.0 | 999999 | |
| 3.00 | -17.00 | 1.53 | -17.00 | -20.06 | 33.60 | -4.04 | 163.97 | 0.2407 | 978.6 | 999999 | |
| 4.79 | -17.00 | 2.46 | -17.00 | -21.21 | 33.47 | -4.17 | 164.84 | 0.2601 | 769.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -21.46 | 33.47 | -4.17 | 165.07 | 0.2641 | 888.0 | 716.8 | |
| 2.14 | -17.00 | 1.09 | -17.00 | -20.09 | 33.28 | -4.36 | 162.82 | 0.2427 | 858.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -20.66 | 32.66 | -4.97 | 161.36 | 0.2551 | -654.0 | -598.1 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -21.88 | 32.40 | -5.24 | 162.03 | 0.2759 | -607.0 | -607.9 | |
| 0.00 | 0.68 | 0.00 | 0.35 | -20.87 | 32.40 | -5.24 | 160.75 | 0.2599 | 730.0 | 545.9 | |
| 0.00 | 3.51 | 0.00 | 1.81 | -21.66 | 32.28 | -5.36 | 161.38 | 0.2731 | 5.0 | -172.3 | |
| 9.07 | 280.25 | 4.68 | 144.53 | -22.05 | 31.72 | -5.92 | 160.12 | 0.2824 | -1125.3 | -488.6 | |
| 1.80 | -51.00 | 0.93 | -51.00 | -22.55 | 31.70 | -5.94 | 160.68 | 0.2902 | -917.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -20.86 | 31.70 | -5.94 | 158.41 | 0.2638 | 654.0 | 393.7 | |
| 0.86 | -51.00 | 0.44 | -51.00 | -22.30 | 31.42 | -6.22 | 159.53 | 0.2879 | -915.6 | 999999 | |
| 0.94 | -51.00 | 0.49 | -51.00 | -21.68 | 31.29 | -6.35 | 158.28 | 0.2792 | -1159.8 | 999999 | |
| 2.91 | 5.74 | 1.51 | 2.98 | -23.15 | 31.02 | -6.62 | 159.48 | 0.3035 | -861.1 | -658.3 | |
| 6.16 | 54.70 | 3.19 | 28.41 | -22.57 | 30.99 | -6.65 | 158.62 | 0.2947 | -1070.7 | -532.8 | |
| 3.08 | -51.00 | 1.58 | -51.00 | -20.40 | 30.99 | -6.65 | 155.35 | 0.2614 | 805.4 | 999999 | |
| 1.46 | -51.00 | 0.75 | -51.00 | -21.98 | 30.92 | -6.72 | 157.61 | 0.2861 | -915.1 | 999999 | |
| 2.48 | -51.00 | 1.28 | -51.00 | -20.97 | 30.90 | -6.74 | 156.02 | 0.2708 | -1224.8 | 999999 | |
| 6.59 | -57.00 | 3.42 | -57.00 | -22.78 | 30.65 | -6.98 | 157.95 | 0.3000 | -968.6 | 999999 | |
| 35.87 | -51.00 | 18.51 | -51.00 | -21.55 | 30.65 | -6.99 | 156.16 | 0.2813 | -1463.7 | 999999 | |
| 4.11 | -57.00 | 2.14 | -57.00 | -23.11 | 30.31 | -7.33 | 157.45 | 0.3072 | -882.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -21.68 | 28.85 | -8.79 | 151.23 | 0.2965 | -794.0 | -608.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
