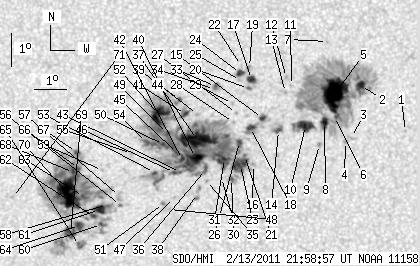

SDO HMI 2011-02-13 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 294.16 | 1318.92 | 150.18 | 673.03 | -20.20 | 34.94 | -2.14 | 172.69 | 0.2409 | -97.4 | 7.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-13 21:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.11 | 0.00 | 0.57 | -19.73 | 41.33 | 4.24 | 197.22 | 0.2363 | 847.0 | 610.9 | |
| 5.91 | 362.11 | 2.99 | 183.37 | -18.35 | 39.89 | 2.80 | 193.00 | 0.2071 | 1229.7 | 432.0 | |
| 0.00 | 2.57 | 0.00 | 1.31 | -19.92 | 39.63 | 2.54 | 190.38 | 0.2326 | -393.0 | -463.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -20.05 | 39.44 | 2.36 | 189.54 | 0.2341 | -472.0 | -437.1 | |
| 52.82 | -2.00 | 26.75 | -2.00 | -18.59 | 39.08 | 1.99 | 189.13 | 0.2086 | 1457.1 | 999999 | |
| 0.68 | -2.00 | 0.35 | -2.00 | -19.29 | 39.09 | 2.00 | 188.64 | 0.2204 | 978.9 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -17.03 | 38.85 | 1.76 | 189.35 | 0.1814 | 788.0 | 675.0 | |
| 5.99 | -2.00 | 3.04 | -2.00 | -19.47 | 38.78 | 1.69 | 187.20 | 0.2228 | 1039.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -20.14 | 38.63 | 1.54 | 186.22 | 0.2338 | 880.0 | 757.8 | |
| 12.84 | -2.00 | 6.52 | -2.00 | -19.56 | 38.18 | 1.09 | 184.64 | 0.2233 | 1005.5 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -18.35 | 37.74 | 0.65 | 183.06 | 0.2021 | 652.0 | 556.1 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -18.11 | 37.58 | 0.49 | 182.38 | 0.1978 | 850.0 | 700.9 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -18.57 | 37.55 | 0.46 | 182.14 | 0.2056 | 795.0 | 523.2 | |
| 3.34 | 10.53 | 1.70 | 5.35 | -19.72 | 37.33 | 0.25 | 181.03 | 0.2252 | 762.2 | 238.3 | |
| 2.83 | 21.57 | 1.43 | 10.96 | -19.35 | 36.83 | -0.26 | 178.89 | 0.2190 | -978.7 | -325.0 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -20.75 | 36.54 | -0.54 | 177.90 | 0.2430 | 768.0 | 617.4 | |
| 5.48 | 10.36 | 2.77 | 5.24 | -18.17 | 36.49 | -0.60 | 177.14 | 0.1990 | -1103.4 | -593.7 | |
| 4.02 | -15.00 | 2.04 | -15.00 | -19.63 | 36.45 | -0.63 | 177.32 | 0.2238 | -959.0 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.38 | -17.81 | 36.43 | -0.66 | 176.74 | 0.1928 | -984.0 | -696.2 | |
| 1.11 | -17.00 | 0.56 | -17.00 | -18.44 | 36.40 | -0.69 | 176.76 | 0.2037 | -972.6 | 999999 | |
| 1.11 | 509.87 | 0.57 | 259.81 | -20.48 | 36.26 | -0.83 | 176.74 | 0.2385 | 1072.8 | 34.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -17.75 | 36.18 | -0.91 | 175.48 | 0.1920 | -141.0 | -148.2 | |
| 15.84 | -21.00 | 8.09 | -21.00 | -20.75 | 36.13 | -0.95 | 176.31 | 0.2433 | 1112.3 | 999999 | |
| 3.94 | 4.19 | 1.99 | 2.12 | -17.99 | 36.15 | -0.94 | 175.43 | 0.1962 | -1103.1 | -951.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | -18.20 | 36.15 | -0.94 | 175.51 | 0.1998 | -701.0 | -628.2 | |
| 2.57 | -21.00 | 1.31 | -21.00 | -20.05 | 36.11 | -0.98 | 175.99 | 0.2314 | -719.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -19.20 | 36.02 | -1.07 | 175.32 | 0.2171 | -934.0 | -733.2 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -19.47 | 35.92 | -1.17 | 175.02 | 0.2218 | -847.0 | -623.2 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -18.90 | 35.89 | -1.19 | 174.64 | 0.2121 | -790.0 | -533.5 | |
| 1.71 | -21.00 | 0.88 | -21.00 | -21.18 | 35.85 | -1.24 | 175.36 | 0.2509 | 792.8 | 999999 | |
| 1.37 | -21.00 | 0.70 | -21.00 | -20.57 | 35.63 | -1.46 | 174.30 | 0.2409 | 1128.2 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -21.15 | 35.53 | -1.56 | 174.17 | 0.2508 | 396.0 | 234.6 | |
| 1.97 | 5.14 | 1.00 | 2.60 | -18.38 | 35.37 | -1.72 | 171.95 | 0.2043 | -515.2 | -129.5 | |
| 0.77 | -33.00 | 0.39 | -33.00 | -18.47 | 35.34 | -1.75 | 171.87 | 0.2060 | 279.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -21.24 | 35.05 | -2.04 | 172.45 | 0.2533 | 578.0 | 501.8 | |
| 3.17 | -21.00 | 1.62 | -21.00 | -20.90 | 35.02 | -2.06 | 172.16 | 0.2477 | 919.5 | 999999 | |
| 35.87 | -21.00 | 18.26 | -21.00 | -19.99 | 34.78 | -2.30 | 170.62 | 0.2329 | -1274.5 | 999999 | |
| 0.00 | 5.22 | 0.00 | 2.68 | -21.63 | 34.76 | -2.33 | 171.63 | 0.2606 | 806.0 | 726.1 | |
| 0.00 | 1.97 | 0.00 | 1.00 | -19.23 | 34.80 | -2.29 | 170.08 | 0.2202 | -1011.0 | -780.4 | |
| 10.62 | -21.00 | 5.42 | -21.00 | -20.53 | 34.71 | -2.37 | 170.74 | 0.2423 | 1220.8 | 999999 | |
| 3.34 | -21.00 | 1.70 | -21.00 | -19.22 | 34.42 | -2.67 | 168.49 | 0.2213 | -934.4 | 999999 | |
| 2.23 | -21.00 | 1.14 | -21.00 | -20.59 | 34.30 | -2.79 | 169.22 | 0.2445 | 1090.3 | 999999 | |
| 1.03 | -21.00 | 0.53 | -21.00 | -20.99 | 34.23 | -2.86 | 169.28 | 0.2513 | 753.1 | 999999 | |
| 1.46 | -21.00 | 0.74 | -21.00 | -18.77 | 34.24 | -2.85 | 167.26 | 0.2144 | -989.2 | 999999 | |
| 1.63 | -21.00 | 0.83 | -21.00 | -20.41 | 34.15 | -2.94 | 168.48 | 0.2420 | 914.7 | 999999 | |
| 1.71 | -21.00 | 0.88 | -21.00 | -20.99 | 34.04 | -3.05 | 168.58 | 0.2519 | 699.2 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -21.75 | 34.02 | -3.06 | 169.14 | 0.2646 | 725.0 | 506.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -22.12 | 33.86 | -3.23 | 168.85 | 0.2712 | 664.0 | 445.3 | |
| 2.05 | -21.00 | 1.05 | -21.00 | -19.80 | 33.84 | -3.24 | 166.72 | 0.2329 | -650.8 | 999999 | |
| 1.63 | -21.00 | 0.83 | -21.00 | -20.13 | 33.71 | -3.38 | 166.55 | 0.2390 | 970.2 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -21.93 | 33.67 | -3.42 | 168.07 | 0.2688 | 910.0 | 794.4 | |
| 15.67 | -21.00 | 7.96 | -21.00 | -19.22 | 33.60 | -3.48 | 165.11 | 0.2244 | -1332.3 | 999999 | |
| 1.37 | -21.00 | 0.70 | -21.00 | -20.98 | 33.41 | -3.68 | 166.29 | 0.2542 | 790.4 | 999999 | |
| 2.48 | -21.00 | 1.27 | -21.00 | -20.07 | 33.18 | -3.91 | 164.45 | 0.2402 | 642.8 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -20.40 | 32.69 | -4.40 | 163.07 | 0.2478 | 733.0 | 406.8 | |
| 0.77 | 0.86 | 0.40 | 0.44 | -21.98 | 32.29 | -4.80 | 163.57 | 0.2753 | -805.9 | -787.0 | |
| 0.00 | 5.05 | 0.00 | 2.60 | -21.71 | 32.27 | -4.82 | 163.18 | 0.2710 | -237.0 | -306.4 | |
| 1.20 | 344.91 | 0.62 | 177.91 | -21.95 | 31.88 | -5.21 | 162.20 | 0.2768 | -831.4 | -460.9 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -20.91 | 31.76 | -5.33 | 160.47 | 0.2609 | 578.0 | 410.2 | |
| 2.31 | -58.00 | 1.19 | -58.00 | -22.56 | 31.66 | -5.43 | 162.24 | 0.2876 | -894.2 | 999999 | |
| 7.36 | -58.00 | 3.80 | -58.00 | -22.10 | 31.62 | -5.47 | 161.55 | 0.2805 | -1195.3 | 999999 | |
| 2.48 | -58.00 | 1.28 | -58.00 | -22.31 | 31.41 | -5.67 | 161.19 | 0.2850 | -1018.0 | 999999 | |
| 1.71 | -58.00 | 0.88 | -58.00 | -21.69 | 31.12 | -5.97 | 159.48 | 0.2769 | -1070.9 | 999999 | |
| 6.42 | -58.00 | 3.32 | -58.00 | -22.58 | 30.95 | -6.14 | 160.14 | 0.2918 | -1087.3 | 999999 | |
| 3.00 | 5.99 | 1.56 | 3.11 | -23.20 | 30.92 | -6.16 | 160.81 | 0.3016 | -778.9 | -687.6 | |
| 1.71 | -58.00 | 0.88 | -58.00 | -20.84 | 30.99 | -6.09 | 157.85 | 0.2644 | -1022.6 | 999999 | |
| 1.54 | -58.00 | 0.79 | -58.00 | -20.35 | 30.95 | -6.14 | 156.94 | 0.2571 | 926.4 | 999999 | |
| 2.23 | -58.00 | 1.14 | -58.00 | -20.96 | 30.83 | -6.26 | 157.51 | 0.2673 | -1230.1 | 999999 | |
| 8.73 | -58.00 | 4.53 | -58.00 | -22.82 | 30.65 | -6.44 | 159.56 | 0.2973 | -969.2 | 999999 | |
| 46.14 | -58.00 | 23.78 | -58.00 | -21.60 | 30.64 | -6.44 | 157.87 | 0.2783 | -1393.3 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -21.69 | 28.84 | -8.25 | 152.75 | 0.2924 | -776.0 | -622.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
