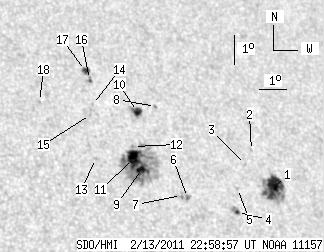

SDO HMI 2011-02-13 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.75 | 179.01 | 38.04 | 112.83 | 20.07 | 64.09 | 27.55 | 315.38 | 0.6204 | -1.0 | 234.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-13 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.00 | 44.86 | 18.17 | 29.10 | 19.47 | 67.54 | 31.01 | 311.28 | 0.6485 | -793.3 | -537.3 | |
| 0.00 | 0.77 | 0.00 | 0.50 | 20.66 | 66.99 | 30.46 | 313.20 | 0.6530 | -648.0 | -533.0 | |
| 0.00 | 1.20 | 0.00 | 0.78 | 20.17 | 66.67 | 30.13 | 312.92 | 0.6458 | -699.0 | -571.8 | |
| 1.28 | 5.14 | 0.81 | 3.25 | 18.56 | 66.05 | 29.51 | 311.51 | 0.6260 | -676.2 | -599.9 | |
| 0.00 | 1.11 | 0.00 | 0.71 | 19.36 | 66.21 | 29.67 | 312.35 | 0.6343 | -552.0 | -395.4 | |
| 0.34 | 1.80 | 0.21 | 1.12 | 18.95 | 64.34 | 27.80 | 313.67 | 0.6121 | 753.8 | 619.2 | |
| 0.00 | 2.65 | 0.00 | 1.66 | 19.00 | 64.14 | 27.60 | 313.94 | 0.6106 | 773.0 | 638.8 | |
| 0.00 | 0.94 | 0.00 | 0.60 | 21.93 | 63.78 | 27.24 | 317.79 | 0.6344 | -687.0 | -507.2 | |
| 4.88 | 98.71 | 3.03 | 61.37 | 19.78 | 62.87 | 26.33 | 316.22 | 0.6055 | 1095.2 | 457.4 | |
| 5.82 | 8.73 | 3.69 | 5.53 | 21.73 | 63.10 | 26.56 | 318.26 | 0.6262 | -648.0 | -418.1 | |
| 15.32 | -9.00 | 9.53 | -9.00 | 20.13 | 62.65 | 26.11 | 316.88 | 0.6068 | 959.5 | 999999 | |
| 0.00 | 1.80 | 0.00 | 1.12 | 20.54 | 62.72 | 26.19 | 317.27 | 0.6114 | 474.0 | 371.5 | |
| 0.00 | 1.03 | 0.00 | 0.63 | 20.06 | 61.31 | 24.77 | 318.26 | 0.5935 | 732.0 | 647.1 | |
| 0.00 | 0.86 | 0.00 | 0.54 | 21.87 | 61.53 | 24.99 | 320.11 | 0.6137 | 483.0 | 387.2 | |
| 0.00 | 1.11 | 0.00 | 0.69 | 21.53 | 61.40 | 24.86 | 319.88 | 0.6090 | 783.0 | 628.8 | |
| 0.00 | 2.65 | 0.00 | 1.68 | 22.72 | 61.59 | 25.05 | 320.99 | 0.6227 | 808.0 | 653.2 | |
| 4.11 | 4.11 | 2.60 | 2.60 | 23.02 | 61.50 | 24.97 | 321.41 | 0.6250 | 710.0 | 0.0 | |
| 0.00 | 1.54 | 0.00 | 0.95 | 21.88 | 59.68 | 23.14 | 322.23 | 0.5977 | 616.0 | 485.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
