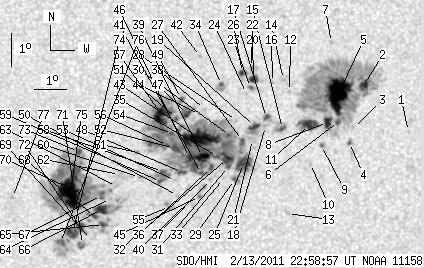

SDO HMI 2011-02-13 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 326.19 | 1348.25 | 166.52 | 687.61 | -20.16 | 35.05 | -1.49 | 175.21 | 0.2391 | -141.5 | 21.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-13 22:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.94 | 0.00 | 0.48 | -19.73 | 41.35 | 4.81 | 199.35 | 0.2391 | 749.0 | 621.2 | |
| 5.82 | 344.26 | 2.95 | 174.34 | -18.34 | 39.90 | 3.36 | 195.49 | 0.2094 | 1180.3 | 426.2 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -19.62 | 39.61 | 3.07 | 192.78 | 0.2292 | 551.0 | 322.3 | |
| 0.68 | 2.14 | 0.35 | 1.09 | -20.07 | 39.49 | 2.96 | 191.88 | 0.2364 | -850.9 | -635.7 | |
| 49.49 | -2.00 | 25.07 | -2.00 | -18.59 | 39.12 | 2.58 | 191.78 | 0.2103 | 1428.9 | 999999 | |
| 2.91 | -2.00 | 1.48 | -2.00 | -19.44 | 39.14 | 2.60 | 191.02 | 0.2246 | 869.4 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.65 | -17.05 | 38.88 | 2.35 | 192.36 | 0.1837 | 1001.0 | 732.3 | |
| 5.99 | -2.00 | 3.05 | -2.00 | -19.47 | 38.79 | 2.25 | 189.57 | 0.2241 | 983.4 | 999999 | |
| 1.28 | 1.20 | 0.65 | 0.61 | -20.17 | 38.61 | 2.07 | 188.34 | 0.2354 | 830.4 | 0.0 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -20.72 | 38.27 | 1.73 | 186.69 | 0.2439 | 783.0 | 606.7 | |
| 11.22 | 21.40 | 5.70 | 10.87 | -19.53 | 38.23 | 1.69 | 187.16 | 0.2237 | 1079.3 | 476.6 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -18.54 | 37.59 | 1.05 | 184.89 | 0.2056 | 771.0 | 514.1 | |
| 0.00 | 2.23 | 0.00 | 1.14 | -22.25 | 37.55 | 1.02 | 183.52 | 0.2686 | 728.0 | 558.1 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -18.17 | 37.40 | 0.87 | 184.15 | 0.1992 | 41.0 | 90.8 | |
| 2.05 | 8.73 | 1.04 | 4.44 | -19.66 | 37.38 | 0.84 | 183.55 | 0.2245 | 779.9 | 265.3 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -18.27 | 37.06 | 0.52 | 182.49 | 0.2004 | -829.0 | -652.1 | |
| 3.08 | 5.22 | 1.56 | 2.65 | -19.32 | 36.88 | 0.34 | 181.47 | 0.2184 | -1024.9 | -674.7 | |
| 0.00 | 2.65 | 0.00 | 1.35 | -19.60 | 36.85 | 0.31 | 181.31 | 0.2231 | -664.0 | -210.9 | |
| 4.97 | 551.27 | 2.52 | 280.76 | -19.60 | 36.50 | -0.04 | 179.84 | 0.2230 | -963.3 | 8.6 | |
| 5.56 | 6.76 | 2.81 | 3.42 | -18.17 | 36.47 | -0.07 | 179.67 | 0.1987 | -1077.4 | -681.1 | |
| 0.00 | 4.62 | 0.00 | 2.35 | -19.99 | 36.44 | -0.10 | 179.59 | 0.2298 | -370.0 | -252.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -17.81 | 36.41 | -0.13 | 179.35 | 0.1924 | -1001.0 | -873.9 | |
| 0.86 | 4.54 | 0.43 | 2.29 | -18.42 | 36.38 | -0.16 | 179.24 | 0.2028 | -982.7 | -506.1 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -18.60 | 36.25 | -0.29 | 178.67 | 0.2060 | -806.0 | -665.0 | |
| 16.10 | -19.00 | 8.22 | -19.00 | -20.72 | 36.15 | -0.39 | 178.50 | 0.2423 | 1105.6 | 999999 | |
| 4.02 | 6.25 | 2.03 | 3.16 | -17.96 | 36.13 | -0.41 | 177.99 | 0.1951 | -1107.4 | -784.5 | |
| 1.80 | -19.00 | 0.91 | -19.00 | -20.02 | 36.12 | -0.42 | 178.30 | 0.2304 | -697.9 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.43 | -19.41 | 35.94 | -0.60 | 177.41 | 0.2201 | -845.0 | -551.1 | |
| 1.80 | -19.00 | 0.92 | -19.00 | -21.21 | 35.87 | -0.67 | 177.49 | 0.2507 | 752.8 | 999999 | |
| 1.46 | -19.00 | 0.74 | -19.00 | -19.87 | 35.71 | -0.82 | 176.59 | 0.2281 | -788.6 | 999999 | |
| 1.88 | -19.00 | 0.96 | -19.00 | -20.81 | 35.68 | -0.86 | 176.69 | 0.2442 | 708.7 | 999999 | |
| 8.48 | -19.00 | 4.32 | -19.00 | -20.57 | 35.65 | -0.89 | 176.51 | 0.2401 | 1020.9 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -21.18 | 35.52 | -1.02 | 176.18 | 0.2505 | 597.0 | 398.7 | |
| 1.37 | 6.59 | 0.69 | 3.33 | -18.32 | 35.47 | -1.07 | 174.96 | 0.2020 | -604.6 | 274.0 | |
| 1.54 | -19.00 | 0.79 | -19.00 | -20.51 | 35.33 | -1.21 | 175.25 | 0.2394 | 777.7 | 999999 | |
| 3.00 | -19.00 | 1.53 | -19.00 | -20.84 | 35.14 | -1.40 | 174.64 | 0.2454 | 945.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -21.21 | 35.10 | -1.43 | 174.65 | 0.2516 | 823.0 | 583.8 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -19.08 | 34.94 | -1.60 | 172.93 | 0.2158 | -701.0 | -442.4 | |
| 9.25 | -19.00 | 4.72 | -19.00 | -20.51 | 34.86 | -1.68 | 173.40 | 0.2402 | 1166.3 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.02 | -21.48 | 34.85 | -1.69 | 173.83 | 0.2567 | 729.0 | 671.1 | |
| 2.14 | -19.00 | 1.09 | -19.00 | -21.02 | 34.82 | -1.72 | 173.52 | 0.2490 | 781.0 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.69 | -17.48 | 34.83 | -1.71 | 171.28 | 0.1889 | -891.0 | -685.3 | |
| 37.07 | -19.00 | 18.87 | -19.00 | -19.96 | 34.77 | -1.77 | 172.75 | 0.2311 | -1258.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -19.23 | 34.78 | -1.76 | 172.34 | 0.2187 | -936.0 | -720.7 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -21.73 | 34.75 | -1.79 | 173.59 | 0.2610 | 801.0 | 660.1 | |
| 2.57 | -19.00 | 1.31 | -19.00 | -20.54 | 34.45 | -2.09 | 171.83 | 0.2416 | 1137.8 | 999999 | |
| 4.02 | -19.00 | 2.04 | -19.00 | -19.23 | 34.40 | -2.14 | 170.73 | 0.2197 | -969.7 | 999999 | |
| 3.77 | -19.00 | 1.93 | -19.00 | -20.99 | 34.22 | -2.32 | 171.26 | 0.2498 | 716.8 | 999999 | |
| 1.37 | -19.00 | 0.69 | -19.00 | -18.74 | 34.22 | -2.32 | 169.54 | 0.2120 | -993.7 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -21.69 | 34.05 | -2.49 | 171.09 | 0.2620 | 461.0 | 437.7 | |
| 2.05 | -19.00 | 1.04 | -19.00 | -19.35 | 34.05 | -2.48 | 169.37 | 0.2227 | -985.5 | 999999 | |
| 4.45 | -19.00 | 2.27 | -19.00 | -20.26 | 34.01 | -2.53 | 169.94 | 0.2381 | 910.0 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -21.23 | 33.99 | -2.55 | 170.59 | 0.2544 | 605.0 | 323.3 | |
| 1.46 | -19.00 | 0.74 | -19.00 | -19.80 | 33.92 | -2.62 | 169.22 | 0.2307 | -778.8 | 999999 | |
| 0.00 | 6.42 | 0.00 | 3.30 | -22.03 | 33.79 | -2.75 | 170.41 | 0.2683 | 645.0 | 573.5 | |
| 1.20 | -19.00 | 0.61 | -19.00 | -20.17 | 33.76 | -2.78 | 168.89 | 0.2373 | 897.4 | 999999 | |
| 17.89 | -19.00 | 9.09 | -19.00 | -19.26 | 33.62 | -2.92 | 167.46 | 0.2226 | -1281.7 | 999999 | |
| 2.14 | -19.00 | 1.09 | -19.00 | -20.96 | 33.58 | -2.95 | 168.90 | 0.2511 | 799.1 | 999999 | |
| 2.14 | -19.00 | 1.10 | -19.00 | -21.26 | 33.51 | -3.02 | 168.90 | 0.2563 | 757.5 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -21.14 | 32.85 | -3.69 | 166.42 | 0.2566 | 809.0 | 586.1 | |
| 0.00 | 1.63 | 0.00 | 0.83 | -20.37 | 32.81 | -3.73 | 165.47 | 0.2443 | 855.0 | 563.8 | |
| 0.00 | 2.14 | 0.00 | 1.10 | -21.04 | 32.22 | -4.32 | 164.10 | 0.2578 | 504.0 | 325.4 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -21.41 | 32.11 | -4.43 | 164.14 | 0.2642 | -176.0 | -175.0 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -21.77 | 31.91 | -4.63 | 163.87 | 0.2710 | -790.0 | -566.7 | |
| 2.83 | 52.48 | 1.46 | 27.07 | -22.57 | 31.66 | -4.88 | 163.92 | 0.2850 | -892.8 | -673.0 | |
| 9.93 | -65.00 | 5.12 | -65.00 | -22.11 | 31.61 | -4.93 | 163.27 | 0.2778 | -1144.2 | 999999 | |
| 4.37 | 231.67 | 2.25 | 119.18 | -21.68 | 31.62 | -4.91 | 162.83 | 0.2709 | -624.1 | -393.2 | |
| 2.65 | -65.00 | 1.37 | -65.00 | -22.32 | 31.38 | -5.16 | 162.78 | 0.2824 | -1046.4 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -23.02 | 31.25 | -5.28 | 163.18 | 0.2942 | -494.0 | -414.7 | |
| 1.28 | -67.00 | 0.66 | -67.00 | -21.64 | 31.05 | -5.49 | 160.93 | 0.2733 | -1166.3 | 999999 | |
| 0.00 | 5.99 | 0.00 | 3.11 | -23.18 | 30.96 | -5.58 | 162.46 | 0.2981 | -789.0 | -733.6 | |
| 6.34 | 47.17 | 3.28 | 24.46 | -22.62 | 30.91 | -5.62 | 161.71 | 0.2895 | -1097.8 | -450.3 | |
| 2.65 | -67.00 | 1.36 | -67.00 | -20.33 | 30.94 | -5.60 | 158.72 | 0.2532 | 916.9 | 999999 | |
| 10.79 | -72.00 | 5.59 | -72.00 | -22.80 | 30.65 | -5.89 | 161.13 | 0.2938 | -946.8 | 999999 | |
| 54.79 | -67.00 | 28.21 | -67.00 | -21.54 | 30.64 | -5.90 | 159.49 | 0.2741 | -1346.9 | 999999 | |
| 3.68 | -72.00 | 1.91 | -72.00 | -23.11 | 30.25 | -6.29 | 160.33 | 0.3007 | -846.3 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -21.70 | 28.77 | -7.77 | 154.11 | 0.2888 | -787.0 | -580.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
