groupProj. UProj. WSCorr. UCorr. WS BLLCMPos. angler MU MP

11157 55.15 187.80 35.23 119.03 20.14 64.06 28.07 314.94 0.6261 30.9 216.0


previous   or   next   observation for the same group / back to the solar disc

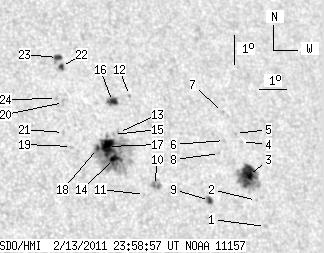

SDO HMI 2011-02-13 23:58:57 UT
No observation available
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)


spotProj. UProj. WSCorr. UCorr. WSBLLCMPos. angler MU MP

1 0.00 1.37 0.00 0.89 17.87 67.91 31.92 308.47 0.6452 -543.0 -447.8
2 0.00 0.77 0.00 0.50 18.70 67.76 31.77 309.66 0.6501 135.0 84.9
3 20.38 40.93 13.33 26.74 19.51 67.63 31.65 310.76 0.6553 -801.7 -566.0
4 0.00 1.20 0.00 0.79 20.63 67.63 31.64 312.12 0.6642 -512.0 -412.1
5 0.00 0.77 0.00 0.51 20.89 67.47 31.48 312.57 0.6647 -446.0 -362.6
6 0.00 1.63 0.00 1.07 20.62 67.00 31.01 312.67 0.6581 -589.0 -403.4
7 0.00 1.46 0.00 0.97 21.57 67.14 31.15 313.65 0.6672 -653.0 -514.8
8 0.00 1.03 0.00 0.67 20.18 66.71 30.72 312.39 0.6516 -597.0 -503.2
9 2.74 3.51 1.75 2.24 18.59 66.02 30.03 311.07 0.6315 -729.5 -659.2
10 0.60 7.28 0.38 4.57 18.96 64.12 28.13 313.36 0.6156 753.7 633.1
11 0.00 0.77 0.00 0.48 18.65 63.71 27.72 313.38 0.6086 760.0 649.1
12 0.00 1.03 0.00 0.66 21.93 63.81 27.83 317.20 0.6396 -710.0 -550.9
13 0.00 1.80 0.00 1.13 20.66 63.16 27.17 316.39 0.6218 341.0 201.9
14 3.42 100.10 2.14 62.53 19.78 62.85 26.86 315.65 0.6106 1078.2 443.7
15 0.00 1.46 0.00 0.92 20.58 62.97 26.98 316.49 0.6192 397.0 358.4
16 5.48 7.36 3.49 4.69 21.69 63.15 27.16 317.60 0.6314 -685.7 -513.0
17 15.50 -14.00 9.69 -14.00 20.16 62.68 26.69 316.30 0.6126 934.8 999999
18 1.46 -14.00 0.91 -14.00 20.08 62.31 26.32 316.59 0.6082 893.9 999999
19 0.00 1.37 0.00 0.85 20.09 61.40 25.41 317.59 0.5998 758.0 633.3
20 0.00 2.74 0.00 1.72 21.56 61.38 25.40 319.32 0.6141 611.0 544.9
21 0.00 1.03 0.00 0.64 20.55 61.20 25.21 318.35 0.6024 680.0 573.8
22 2.40 3.51 1.52 2.23 22.78 61.55 25.56 320.50 0.6278 709.2 535.8
23 3.17 5.48 2.02 3.48 23.08 61.47 25.48 320.91 0.6301 665.6 595.5
24 0.00 1.20 0.00 0.75 21.68 61.16 25.17 319.70 0.6134 668.0 558.8


  		• Proj. U -  Projected umbra area in millionths of solar disc, negative values indicate
    that the umbra consists of fragmented regions which cannot be separated without losing umbral area.
    In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that
    the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
  		• Proj. WS -  Projected whole spot area in millionths of solar disc, negative values indicate
    that several umbras have a common penumbra, e.g. -7 means that the given umbra shares
    a penumbra with umbra No.7, and the WS value is indicated at No.7.
  		• Corr. U -  Corrected umbra area in millionths of solar hemisphere, for negative values see above
  		• Corr. WS -  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
  		• B -  Heliographic latitude B; positive: North, negative: South
  		• L -  Heliographic longitude L
  		• LCM -  Longitudinal distance from the Sun's central meridian
  		• Pos. angle -  Position angle
  		• r -  Distance from the centre of Sun's disc in terms of Sun's radius
  		• MU -  Mean magnetic field within the umbra contour averaged the pixel values with sign.
  		• MP -  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
