SDO HMI 2011-02-14 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 321.07 | 1378.59 | 163.86 | 702.95 | -20.21 | 34.99 | 0.10 | 181.42 | 0.2392 | -123.2 | 14.6 | |
|
previous
or next observation for the same group /

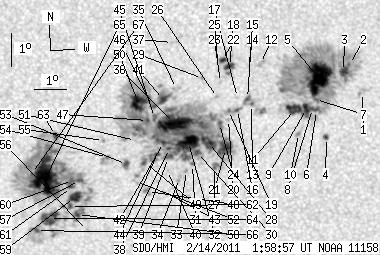

back to the solar disc SDO HMI 2011-02-14 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.88 | 0.00 | 2.49 | -18.94 | 40.59 | 5.70 | 203.98 | 0.2322 | 401.0 | 576.8 | |
| 1.03 | 366.75 | 0.52 | 186.05 | -18.10 | 40.16 | 5.27 | 203.91 | 0.2162 | 926.6 | 455.0 | |
| 6.25 | -2.00 | 3.17 | -2.00 | -18.31 | 39.98 | 5.08 | 202.78 | 0.2183 | 1106.5 | 999999 | |
| 2.40 | 2.74 | 1.23 | 1.40 | -20.32 | 39.50 | 4.61 | 197.82 | 0.2474 | -759.3 | -624.0 | |
| 42.91 | -2.00 | 21.76 | -2.00 | -18.50 | 39.20 | 4.31 | 199.30 | 0.2165 | 1366.0 | 999999 | |
| 0.43 | -2.00 | 0.22 | -2.00 | -19.50 | 39.16 | 4.27 | 197.66 | 0.2324 | 802.2 | 999999 | |
| 1.11 | -2.00 | 0.57 | -2.00 | -19.17 | 39.12 | 4.23 | 197.97 | 0.2268 | 859.9 | 999999 | |
| 1.80 | -2.00 | 0.92 | -2.00 | -19.44 | 39.04 | 4.14 | 197.25 | 0.2308 | 923.0 | 999999 | |
| 4.62 | -2.00 | 2.35 | -2.00 | -19.44 | 38.85 | 3.95 | 196.51 | 0.2299 | 1116.2 | 999999 | |
| 0.00 | 2.14 | 0.00 | 1.09 | -20.20 | 38.61 | 3.72 | 194.69 | 0.2413 | 880.0 | 602.4 | |
| 11.39 | -2.00 | 5.79 | -2.00 | -19.48 | 38.47 | 3.58 | 194.97 | 0.2287 | 1008.8 | 999999 | |
| 0.00 | 3.34 | 0.00 | 1.69 | -18.09 | 37.38 | 2.49 | 191.88 | 0.2014 | 38.0 | 206.7 | |
| 1.28 | 18.24 | 0.65 | 9.27 | -19.33 | 37.12 | 2.22 | 189.56 | 0.2215 | -731.0 | -27.5 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -18.18 | 37.01 | 2.12 | 190.06 | 0.2018 | -789.0 | -557.0 | |
| 2.83 | -13.00 | 1.43 | -13.00 | -19.15 | 36.99 | 2.10 | 189.16 | 0.2180 | -1007.0 | 999999 | |
| 1.28 | 551.66 | 0.65 | 280.75 | -19.49 | 36.68 | 1.79 | 187.61 | 0.2229 | -849.0 | -8.1 | |
| 0.00 | 0.77 | 0.00 | 0.39 | -19.12 | 36.68 | 1.78 | 187.83 | 0.2168 | 540.0 | 500.4 | |
| 4.71 | 15.25 | 2.38 | 7.70 | -18.19 | 36.42 | 1.52 | 187.28 | 0.2003 | -1035.8 | -776.4 | |
| 1.20 | -16.00 | 0.61 | -16.00 | -19.52 | 36.40 | 1.50 | 186.41 | 0.2229 | -821.8 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -19.79 | 36.40 | 1.51 | 186.27 | 0.2275 | -559.0 | -368.2 | |
| 16.10 | -16.00 | 8.22 | -16.00 | -20.67 | 36.31 | 1.42 | 185.52 | 0.2423 | 1062.8 | 999999 | |
| 3.17 | -18.00 | 1.60 | -18.00 | -18.01 | 36.20 | 1.30 | 186.35 | 0.1968 | -1057.4 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -18.67 | 36.14 | 1.25 | 185.72 | 0.2080 | -807.0 | -648.9 | |
| 1.46 | -16.00 | 0.74 | -16.00 | -19.91 | 36.12 | 1.23 | 185.06 | 0.2291 | -691.1 | 999999 | |
| 0.00 | 1.63 | 0.00 | 0.82 | -18.31 | 36.08 | 1.18 | 185.60 | 0.2017 | -793.0 | -604.3 | |
| 0.00 | 1.46 | 0.00 | 0.74 | -19.12 | 36.05 | 1.16 | 185.10 | 0.2156 | -989.0 | -789.9 | |
| 0.60 | -16.00 | 0.31 | -16.00 | -21.25 | 35.97 | 1.08 | 184.01 | 0.2517 | 701.1 | 999999 | |
| 13.62 | -16.00 | 6.94 | -16.00 | -20.49 | 35.78 | 0.88 | 183.48 | 0.2385 | 1006.5 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -18.55 | 35.58 | 0.68 | 183.18 | 0.2052 | 905.0 | 695.6 | |
| 3.94 | -16.00 | 2.01 | -16.00 | -20.80 | 35.43 | 0.54 | 182.07 | 0.2434 | 877.2 | 999999 | |
| 1.03 | -16.00 | 0.53 | -16.00 | -21.16 | 35.27 | 0.38 | 181.42 | 0.2496 | 627.7 | 999999 | |
| 19.44 | -16.00 | 9.91 | -16.00 | -20.49 | 35.14 | 0.25 | 180.99 | 0.2381 | 1108.3 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -21.35 | 35.08 | 0.19 | 180.70 | 0.2526 | 697.0 | 588.1 | |
| 0.00 | 3.17 | 0.00 | 1.62 | -21.59 | 34.86 | -0.03 | 179.88 | 0.2568 | 618.0 | 575.8 | |
| 0.00 | 4.11 | 0.00 | 2.08 | -18.85 | 34.77 | -0.13 | 179.42 | 0.2101 | -391.0 | -356.4 | |
| 34.00 | -16.00 | 17.29 | -16.00 | -19.91 | 34.70 | -0.19 | 179.21 | 0.2283 | -1284.9 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.26 | -17.46 | 34.64 | -0.25 | 178.71 | 0.1863 | -795.0 | -613.0 | |
| 0.94 | -16.00 | 0.48 | -16.00 | -20.68 | 34.54 | -0.35 | 178.64 | 0.2413 | 887.5 | 999999 | |
| 3.17 | -16.00 | 1.62 | -16.00 | -20.95 | 34.51 | -0.38 | 178.54 | 0.2459 | 717.7 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -21.35 | 34.48 | -0.42 | 178.46 | 0.2527 | 663.0 | 481.7 | |
| 6.25 | -16.00 | 3.17 | -16.00 | -19.19 | 34.36 | -0.53 | 177.65 | 0.2160 | -895.6 | 999999 | |
| 2.31 | -16.00 | 1.18 | -16.00 | -20.49 | 34.35 | -0.54 | 177.87 | 0.2382 | 951.2 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -21.99 | 34.35 | -0.54 | 178.08 | 0.2637 | 671.0 | 487.8 | |
| 1.88 | -16.00 | 0.96 | -16.00 | -20.83 | 34.16 | -0.73 | 177.19 | 0.2441 | 814.1 | 999999 | |
| 3.25 | -16.00 | 1.65 | -16.00 | -19.73 | 34.07 | -0.82 | 176.56 | 0.2255 | -1030.7 | 999999 | |
| 2.48 | -16.00 | 1.26 | -16.00 | -19.40 | 34.01 | -0.88 | 176.20 | 0.2199 | -1086.1 | 999999 | |
| 1.20 | -16.00 | 0.61 | -16.00 | -19.82 | 33.85 | -1.04 | 175.67 | 0.2273 | -957.1 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.02 | -21.99 | 33.84 | -1.06 | 176.28 | 0.2641 | 876.0 | 696.9 | |
| 1.63 | -16.00 | 0.83 | -16.00 | -21.10 | 33.75 | -1.14 | 175.69 | 0.2492 | 825.4 | 999999 | |
| 15.07 | -16.00 | 7.65 | -16.00 | -19.28 | 33.57 | -1.32 | 174.27 | 0.2184 | -1326.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -20.43 | 33.47 | -1.42 | 174.37 | 0.2382 | 356.0 | 306.1 | |
| 0.00 | 2.40 | 0.00 | 1.23 | -21.68 | 33.46 | -1.43 | 174.83 | 0.2594 | 423.0 | 497.9 | |
| 3.34 | 5.74 | 1.71 | 2.94 | -21.16 | 33.18 | -1.72 | 173.59 | 0.2511 | 909.1 | 610.9 | |
| 0.77 | 8.31 | 0.39 | 4.25 | -20.94 | 32.58 | -2.32 | 171.24 | 0.2488 | 553.1 | 254.7 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -20.43 | 32.46 | -2.43 | 170.43 | 0.2404 | 723.0 | 533.1 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -23.18 | 31.90 | -3.00 | 170.34 | 0.2878 | -695.0 | -520.0 | |
| 2.57 | 307.22 | 1.32 | 157.77 | -21.64 | 31.67 | -3.22 | 168.51 | 0.2631 | -957.5 | -442.4 | |
| 2.48 | -57.00 | 1.28 | -57.00 | -22.69 | 31.59 | -3.31 | 169.02 | 0.2806 | -910.8 | 999999 | |
| 9.25 | -57.00 | 4.76 | -57.00 | -22.16 | 31.50 | -3.39 | 168.34 | 0.2722 | -1141.6 | 999999 | |
| 3.25 | -57.00 | 1.67 | -57.00 | -21.64 | 31.45 | -3.44 | 167.73 | 0.2638 | -988.0 | 999999 | |
| 1.80 | -57.00 | 0.92 | -57.00 | -21.86 | 31.41 | -3.48 | 167.79 | 0.2675 | -926.1 | 999999 | |
| 2.06 | -57.00 | 1.06 | -57.00 | -22.44 | 31.37 | -3.53 | 168.12 | 0.2772 | -1012.4 | 999999 | |
| 2.66 | -57.00 | 1.36 | -57.00 | -20.26 | 30.95 | -3.95 | 164.53 | 0.2433 | 851.9 | 999999 | |
| 16.96 | 62.09 | 8.76 | 32.12 | -22.80 | 30.68 | -4.21 | 166.23 | 0.2857 | -1009.3 | -489.6 | |
| 57.90 | -57.00 | 29.74 | -57.00 | -21.57 | 30.59 | -4.30 | 164.74 | 0.2661 | -1304.8 | 999999 | |
| 1.88 | -64.00 | 0.98 | -64.00 | -23.17 | 30.25 | -4.64 | 165.24 | 0.2934 | -837.7 | 999999 | |
| 1.37 | -57.00 | 0.70 | -57.00 | -21.42 | 30.15 | -4.74 | 163.08 | 0.2657 | -956.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
