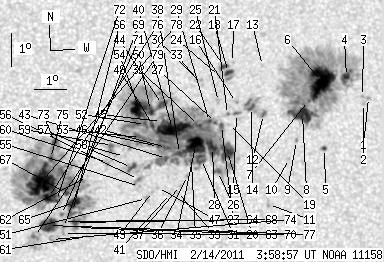

SDO HMI 2011-02-14 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 351.27 | 1461.21 | 179.29 | 745.10 | -20.21 | 34.95 | 1.15 | 185.48 | 0.2404 | -62.6 | -2.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-14 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.46 | 0.00 | 0.74 | -18.90 | 40.79 | 6.99 | 208.65 | 0.2412 | 820.0 | 669.1 | |
| 0.00 | 1.80 | 0.00 | 0.92 | -19.09 | 40.64 | 6.84 | 207.76 | 0.2427 | 752.0 | 592.0 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -18.88 | 40.60 | 6.80 | 208.05 | 0.2393 | 969.0 | 722.7 | |
| 7.88 | 388.00 | 4.01 | 197.10 | -18.28 | 40.07 | 6.27 | 207.43 | 0.2262 | 1062.9 | 445.0 | |
| 1.80 | 2.31 | 0.92 | 1.18 | -20.47 | 39.46 | 5.66 | 201.29 | 0.2556 | -682.0 | -795.2 | |
| 44.29 | -4.00 | 22.50 | -4.00 | -18.44 | 39.29 | 5.49 | 204.16 | 0.2229 | 1382.8 | 999999 | |
| 0.51 | -4.00 | 0.26 | -4.00 | -19.02 | 38.90 | 5.10 | 201.62 | 0.2294 | 902.3 | 999999 | |
| 22.36 | -4.00 | 11.39 | -4.00 | -19.44 | 38.73 | 4.93 | 200.26 | 0.2350 | 1056.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -20.23 | 38.56 | 4.76 | 198.50 | 0.2467 | 767.0 | 553.2 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -20.78 | 38.36 | 4.56 | 197.05 | 0.2545 | 728.0 | 560.9 | |
| 0.00 | 1.97 | 0.00 | 1.01 | -22.20 | 37.73 | 3.93 | 193.42 | 0.2747 | 690.0 | 457.2 | |
| 2.14 | 23.47 | 1.09 | 11.93 | -19.45 | 37.50 | 3.70 | 195.50 | 0.2288 | 846.8 | -287.7 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -17.97 | 37.44 | 3.64 | 197.27 | 0.2043 | 632.0 | 453.7 | |
| 3.08 | -12.00 | 1.57 | -12.00 | -19.24 | 37.12 | 3.32 | 194.21 | 0.2237 | -811.1 | 999999 | |
| 1.97 | 2.91 | 1.00 | 1.48 | -19.43 | 36.65 | 2.85 | 192.10 | 0.2250 | -799.3 | -769.7 | |
| 0.00 | 1.29 | 0.00 | 0.65 | -19.09 | 36.65 | 2.85 | 192.41 | 0.2194 | 881.0 | 677.9 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -17.89 | 36.50 | 2.70 | 193.11 | 0.1987 | -704.0 | -587.5 | |
| 3.86 | 12.77 | 1.95 | 6.46 | -18.19 | 36.38 | 2.58 | 192.21 | 0.2033 | -1116.4 | -813.7 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -19.76 | 36.41 | 2.61 | 190.79 | 0.2297 | -600.0 | -307.9 | |
| 16.88 | 574.85 | 8.62 | 292.58 | -20.58 | 36.39 | 2.59 | 190.05 | 0.2434 | 1062.5 | -32.5 | |
| 0.00 | 1.71 | 0.00 | 0.87 | -19.46 | 36.37 | 2.57 | 190.91 | 0.2246 | -694.0 | -503.8 | |
| 3.08 | -18.00 | 1.56 | -18.00 | -18.01 | 36.26 | 2.45 | 191.82 | 0.1998 | -1068.6 | 999999 | |
| 2.23 | -20.00 | 1.13 | -20.00 | -19.79 | 36.19 | 2.39 | 189.87 | 0.2296 | -723.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -18.31 | 36.10 | 2.30 | 190.81 | 0.2044 | -949.0 | -721.1 | |
| 0.00 | 2.57 | 0.00 | 1.30 | -19.07 | 36.08 | 2.28 | 190.03 | 0.2171 | -940.0 | -764.8 | |
| 3.17 | -20.00 | 1.62 | -20.00 | -21.20 | 36.08 | 2.28 | 188.48 | 0.2528 | 618.1 | 999999 | |
| 1.37 | -20.00 | 0.70 | -20.00 | -19.70 | 36.00 | 2.20 | 189.17 | 0.2276 | -750.1 | 999999 | |
| 12.42 | -20.00 | 6.34 | -20.00 | -20.47 | 35.91 | 2.11 | 188.31 | 0.2401 | 1073.4 | 999999 | |
| 1.88 | -20.00 | 0.96 | -20.00 | -19.67 | 35.81 | 2.01 | 188.41 | 0.2266 | -875.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.56 | -18.55 | 35.58 | 1.78 | 188.19 | 0.2070 | 883.0 | 650.1 | |
| 7.71 | -20.00 | 3.94 | -20.00 | -20.83 | 35.57 | 1.77 | 186.78 | 0.2456 | 787.2 | 999999 | |
| 1.54 | -20.00 | 0.78 | -20.00 | -19.80 | 35.46 | 1.66 | 186.92 | 0.2279 | -1015.3 | 999999 | |
| 0.00 | 3.60 | 0.00 | 1.82 | -18.43 | 35.45 | 1.65 | 187.70 | 0.2047 | 326.0 | 327.3 | |
| 24.67 | -20.00 | 12.58 | -20.00 | -20.41 | 35.38 | 1.58 | 186.24 | 0.2380 | 1133.4 | 999999 | |
| 1.71 | -20.00 | 0.88 | -20.00 | -20.92 | 35.25 | 1.45 | 185.54 | 0.2465 | 762.8 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -21.32 | 35.13 | 1.33 | 184.93 | 0.2531 | 677.0 | 487.8 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -21.63 | 34.91 | 1.11 | 184.02 | 0.2580 | 765.0 | 599.0 | |
| 1.71 | -20.00 | 0.87 | -20.00 | -20.65 | 34.87 | 1.07 | 184.18 | 0.2414 | 1046.1 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -21.81 | 34.82 | 1.02 | 183.63 | 0.2610 | 458.0 | 372.4 | |
| 30.24 | -20.00 | 15.38 | -20.00 | -19.89 | 34.65 | 0.85 | 183.50 | 0.2282 | -1320.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -21.87 | 34.59 | 0.79 | 182.83 | 0.2618 | 615.0 | 544.6 | |
| 2.74 | -20.00 | 1.40 | -20.00 | -20.47 | 34.46 | 0.66 | 182.61 | 0.2379 | 1054.7 | 999999 | |
| 2.14 | -20.00 | 1.09 | -20.00 | -20.80 | 34.46 | 0.66 | 182.55 | 0.2436 | 876.7 | 999999 | |
| 6.25 | -20.00 | 3.17 | -20.00 | -19.16 | 34.33 | 0.53 | 182.33 | 0.2155 | -990.4 | 999999 | |
| 0.51 | -20.00 | 0.26 | -20.00 | -19.68 | 34.30 | 0.50 | 182.11 | 0.2243 | -998.3 | 999999 | |
| 1.88 | -20.00 | 0.96 | -20.00 | -20.44 | 34.21 | 0.41 | 181.62 | 0.2372 | 874.1 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -21.69 | 34.18 | 0.38 | 181.37 | 0.2584 | 863.0 | 695.1 | |
| 2.74 | -20.00 | 1.39 | -20.00 | -19.77 | 34.02 | 0.22 | 180.91 | 0.2257 | -1049.3 | 999999 | |
| 0.00 | 0.94 | 0.00 | 0.48 | -21.81 | 34.02 | 0.22 | 180.79 | 0.2605 | 694.0 | 563.9 | |
| 5.05 | -20.00 | 2.57 | -20.00 | -19.35 | 33.95 | 0.15 | 180.66 | 0.2184 | -1196.2 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.88 | -22.03 | 33.83 | 0.03 | 180.10 | 0.2641 | 774.0 | 626.2 | |
| 2.57 | -20.00 | 1.31 | -20.00 | -19.77 | 33.80 | -0.00 | 180.00 | 0.2257 | -893.4 | 999999 | |
| 6.08 | -20.00 | 3.10 | -20.00 | -20.17 | 33.64 | -0.16 | 179.35 | 0.2324 | 691.4 | 999999 | |
| 21.76 | -20.00 | 11.04 | -20.00 | -19.28 | 33.61 | -0.19 | 179.16 | 0.2174 | -1279.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.40 | -21.66 | 33.61 | -0.19 | 179.30 | 0.2579 | 738.0 | 539.2 | |
| 0.00 | 5.40 | 0.00 | 2.76 | -21.45 | 33.57 | -0.23 | 179.17 | 0.2542 | 797.0 | 562.3 | |
| 4.11 | -20.00 | 2.10 | -20.00 | -21.08 | 33.35 | -0.45 | 178.31 | 0.2481 | 843.2 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -20.74 | 33.13 | -0.67 | 177.41 | 0.2425 | -411.0 | -259.6 | |
| 0.94 | 8.65 | 0.48 | 4.41 | -20.41 | 32.75 | -1.05 | 175.85 | 0.2372 | 836.3 | 695.9 | |
| 0.00 | 3.86 | 0.00 | 1.97 | -20.93 | 32.59 | -1.21 | 175.39 | 0.2462 | 367.0 | 350.0 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -23.19 | 31.93 | -1.87 | 173.94 | 0.2854 | -706.0 | -489.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -21.35 | 31.95 | -1.85 | 173.20 | 0.2545 | 73.0 | 66.5 | |
| 0.26 | 354.34 | 0.13 | 181.73 | -22.92 | 31.58 | -2.22 | 172.68 | 0.2814 | -761.7 | -437.8 | |
| 4.37 | -63.00 | 2.25 | -63.00 | -22.76 | 31.55 | -2.25 | 172.51 | 0.2789 | -948.0 | 999999 | |
| 9.25 | -63.00 | 4.76 | -63.00 | -22.15 | 31.50 | -2.30 | 172.00 | 0.2688 | -1163.0 | 999999 | |
| 0.77 | -63.00 | 0.40 | -63.00 | -22.42 | 31.46 | -2.34 | 172.03 | 0.2735 | -810.3 | 999999 | |
| 2.06 | -63.00 | 1.06 | -63.00 | -21.87 | 31.28 | -2.52 | 171.08 | 0.2647 | -1137.0 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.62 | -22.73 | 31.17 | -2.64 | 171.23 | 0.2793 | -932.0 | -750.2 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -22.91 | 31.16 | -2.64 | 171.32 | 0.2824 | -879.0 | -801.9 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -23.10 | 31.16 | -2.64 | 171.42 | 0.2854 | -461.0 | -439.7 | |
| 1.37 | -63.00 | 0.71 | -63.00 | -22.51 | 31.11 | -2.70 | 170.90 | 0.2758 | -1003.9 | 999999 | |
| 1.54 | -63.00 | 0.79 | -63.00 | -22.08 | 30.95 | -2.85 | 170.11 | 0.2691 | -996.3 | 999999 | |
| 2.48 | -63.00 | 1.27 | -63.00 | -20.28 | 30.93 | -2.88 | 168.60 | 0.2392 | 865.5 | 999999 | |
| 0.00 | 3.51 | 0.00 | 1.82 | -23.28 | 30.77 | -3.03 | 170.29 | 0.2895 | -735.0 | -524.5 | |
| 1.88 | -63.00 | 0.96 | -63.00 | -20.80 | 30.79 | -3.01 | 168.54 | 0.2483 | -1160.2 | 999999 | |
| 7.97 | -63.00 | 4.10 | -63.00 | -21.99 | 30.70 | -3.10 | 169.18 | 0.2683 | -1100.4 | 999999 | |
| 17.99 | 19.96 | 9.29 | 10.30 | -22.85 | 30.68 | -3.12 | 169.73 | 0.2826 | -1015.2 | -790.8 | |
| 47.03 | -63.00 | 24.12 | -63.00 | -21.50 | 30.49 | -3.31 | 168.05 | 0.2609 | -1359.2 | 999999 | |
| 1.03 | 20.22 | 0.53 | 10.47 | -23.19 | 30.22 | -3.58 | 168.52 | 0.2896 | -826.0 | -371.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
