group	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
11157	46.87	155.53	31.05	102.20	20.13	64.25	31.54	311.71	0.6597	97.4	250.9

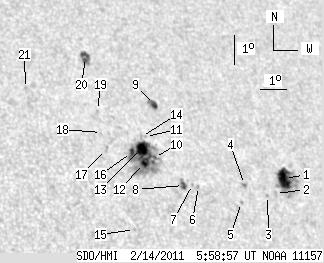

previous   or   next   observation for the same group / back to the solar disc SDO HMI 2011-02-14 05:58:57 UT See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!)

spot	Proj. U	Proj. WS	Corr. U	Corr. WS	B	L	LCM	Pos. angle	r	MU	MP
1	17.05	40.70	11.65	27.81	19.56	67.92	35.21	307.94	0.6912	-850.9	-335.8
2	0.00	2.31	0.00	1.56	19.04	67.45	34.74	307.66	0.6828	-855.0	-631.9
3	0.00	1.03	0.00	0.69	18.95	67.12	34.41	307.81	0.6789	-712.0	-591.3
4	0.00	2.14	0.00	1.43	19.25	66.32	33.61	308.81	0.6730	-813.0	-674.4
5	0.00	1.11	0.00	0.74	18.65	66.07	33.36	308.27	0.6660	-638.0	-523.5
6	0.00	1.29	0.00	0.84	19.07	64.56	31.85	310.05	0.6539	539.0	344.1
7	0.00	0.94	0.00	0.61	19.12	64.35	31.64	310.30	0.6522	473.0	330.5
8	2.91	5.40	1.89	3.50	19.07	64.01	31.30	310.53	0.6483	728.2	653.4
9	3.77	6.26	2.49	4.14	21.72	63.53	30.82	314.13	0.6655	-676.5	-579.2
10	1.03	76.95	0.67	49.60	19.93	63.13	30.42	312.38	0.6467	383.2	568.3
11	0.00	0.60	0.00	0.39	20.61	62.95	30.24	313.36	0.6507	299.0	219.7
12	1.89	-10.00	1.21	-10.00	19.70	62.68	29.97	312.52	0.6404	1232.8	999999
13	10.80	-10.00	6.98	-10.00	20.20	62.71	30.00	313.09	0.6449	964.2	999999
14	0.00	1.89	0.00	1.22	20.60	62.80	30.09	313.49	0.6492	361.0	236.1
15	0.00	0.69	0.00	0.43	17.50	61.93	29.22	310.46	0.6142	520.0	407.0
16	2.31	-10.00	1.49	-10.00	20.04	62.31	29.60	313.27	0.6397	879.3	999999
17	0.00	2.31	0.00	1.47	20.09	61.42	28.71	314.18	0.6314	792.0	589.9
18	0.00	0.34	0.00	0.22	20.65	61.35	28.64	314.91	0.6357	703.0	649.5
19	0.00	0.69	0.00	0.44	21.38	61.36	28.65	315.76	0.6424	525.0	496.6
20	7.11	9.51	4.67	6.24	23.16	61.33	28.62	317.82	0.6582	643.0	616.2
21	0.00	1.37	0.00	0.87	21.97	58.90	26.19	318.95	0.6255	526.0	439.5

	Proj. U	-  Projected umbra area in millionths of solar disc, negative values indicate
	that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2.
	Proj. WS	-  Projected whole spot area in millionths of solar disc, negative values indicate
	that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7.
	Corr. U	-  Corrected umbra area in millionths of solar hemisphere, for negative values see above
	Corr. WS	-  Corrected whole spot area in millionths of solar hemisphere, for negative values see above
	B	-  Heliographic latitude B; positive: North, negative: South
	L	-  Heliographic longitude L
	LCM	-  Longitudinal distance from the Sun's central meridian
	Pos. angle	-  Position angle
	r	-  Distance from the centre of Sun's disc in terms of Sun's radius
	MU	-  Mean magnetic field within the umbra contour averaged the pixel values with sign.
	MP	-  Mean magnetic field within the penumbra contour averaged the pixel values with sign.
