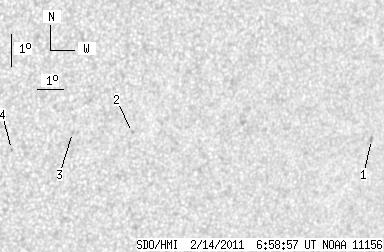

SDO HMI 2011-02-14 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 5.05 | 0.00 | 3.10 | -20.56 | 66.53 | 34.37 | 243.49 | 0.5891 | -361.2 | -151.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-14 06:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.80 | 0.00 | 1.20 | -20.13 | 73.52 | 41.35 | 247.38 | 0.6744 | 647.0 | 513.4 | |
| 0.00 | 1.11 | 0.00 | 0.66 | -20.55 | 64.19 | 32.03 | 242.84 | 0.5603 | -734.0 | -570.5 | |
| 0.00 | 1.11 | 0.00 | 0.65 | -20.68 | 62.00 | 29.84 | 241.31 | 0.5328 | -698.0 | -583.9 | |
| 0.00 | 1.03 | 0.00 | 0.59 | -21.32 | 59.93 | 27.76 | 238.73 | 0.5098 | -660.0 | -557.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
