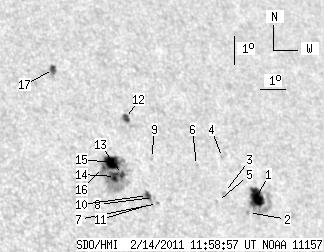

SDO HMI 2011-02-14 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.40 | 142.06 | 35.45 | 97.36 | 19.97 | 64.55 | 35.12 | 308.57 | 0.6934 | 44.3 | 260.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-14 11:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.76 | 38.81 | 13.45 | 27.84 | 19.47 | 68.16 | 38.73 | 305.31 | 0.7253 | -811.4 | -222.2 | |
| 0.00 | 1.46 | 0.00 | 1.03 | 18.94 | 67.70 | 38.26 | 305.00 | 0.7174 | -817.0 | -709.2 | |
| 0.00 | 1.03 | 0.00 | 0.72 | 19.54 | 66.90 | 37.47 | 306.25 | 0.7133 | -658.0 | -497.2 | |
| 0.00 | 1.46 | 0.00 | 1.04 | 20.71 | 67.15 | 37.72 | 307.46 | 0.7234 | -641.0 | -492.4 | |
| 0.00 | 0.77 | 0.00 | 0.54 | 19.21 | 66.54 | 37.11 | 306.12 | 0.7076 | -641.0 | -487.4 | |
| 0.00 | 1.11 | 0.00 | 0.78 | 20.36 | 66.02 | 36.59 | 307.86 | 0.7102 | -515.0 | -473.2 | |
| 0.00 | 1.20 | 0.00 | 0.81 | 18.97 | 64.15 | 34.72 | 307.59 | 0.6821 | 365.0 | 379.1 | |
| 0.00 | 1.54 | 0.00 | 1.04 | 19.16 | 64.04 | 34.61 | 307.91 | 0.6823 | 225.0 | 291.0 | |
| 0.00 | 1.03 | 0.00 | 0.71 | 20.46 | 64.29 | 34.86 | 309.28 | 0.6942 | 428.0 | 341.9 | |
| 2.91 | 8.65 | 1.96 | 5.83 | 19.21 | 63.83 | 34.39 | 308.14 | 0.6805 | 800.0 | 599.3 | |
| 0.00 | 1.29 | 0.00 | 0.86 | 18.88 | 63.71 | 34.28 | 307.82 | 0.6769 | 820.0 | 707.4 | |
| 4.28 | 4.80 | 2.95 | 3.31 | 21.75 | 63.63 | 34.20 | 311.30 | 0.6973 | -673.1 | -593.8 | |
| 2.40 | 74.28 | 1.61 | 49.70 | 19.85 | 63.03 | 33.60 | 309.54 | 0.6773 | 694.1 | 502.8 | |
| 4.20 | -13.00 | 2.81 | -13.00 | 19.76 | 62.74 | 33.31 | 309.67 | 0.6738 | 1141.1 | 999999 | |
| 13.19 | -13.00 | 8.85 | -13.00 | 20.22 | 62.70 | 33.27 | 310.25 | 0.6769 | 869.6 | 999999 | |
| 1.46 | -13.00 | 0.97 | -13.00 | 20.03 | 62.36 | 32.92 | 310.31 | 0.6720 | 830.0 | 999999 | |
| 4.20 | 4.63 | 2.85 | 3.15 | 23.24 | 61.28 | 31.85 | 314.95 | 0.6874 | 670.2 | 515.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
