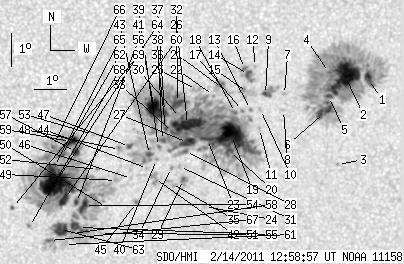

SDO HMI 2011-02-14 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 323.67 | 1595.87 | 165.88 | 817.70 | -20.13 | 34.63 | 5.75 | 202.08 | 0.2576 | -139.1 | -6.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-14 12:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.14 | 360.16 | 4.19 | 185.04 | -18.30 | 40.23 | 11.35 | 222.77 | 0.2763 | 904.3 | 478.2 | |
| 44.12 | -1.00 | 22.67 | -1.00 | -18.23 | 39.49 | 10.61 | 221.12 | 0.2672 | 1395.0 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.58 | -20.90 | 39.42 | 10.53 | 214.79 | 0.3007 | -709.0 | -530.0 | |
| 0.43 | -1.00 | 0.22 | -1.00 | -18.12 | 38.98 | 10.10 | 220.05 | 0.2602 | 1261.8 | 999999 | |
| 2.57 | -1.00 | 1.32 | -1.00 | -18.84 | 38.99 | 10.11 | 218.26 | 0.2695 | 984.7 | 999999 | |
| 11.14 | -1.00 | 5.73 | -1.00 | -19.33 | 38.89 | 10.01 | 216.85 | 0.2748 | 1082.7 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -18.81 | 37.60 | 8.71 | 214.37 | 0.2552 | -697.0 | -405.4 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -19.29 | 37.59 | 8.71 | 213.25 | 0.2618 | 834.0 | 522.4 | |
| 1.37 | 10.88 | 0.70 | 5.56 | -18.82 | 37.00 | 8.11 | 212.51 | 0.2497 | -747.8 | -52.8 | |
| 0.00 | 1.88 | 0.00 | 0.97 | -19.27 | 36.86 | 7.98 | 211.08 | 0.2550 | -734.0 | -600.3 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -19.85 | 36.86 | 7.97 | 209.87 | 0.2632 | 890.0 | 691.0 | |
| 0.00 | 0.60 | 0.00 | 0.31 | -17.98 | 36.64 | 7.76 | 213.34 | 0.2347 | -850.0 | -686.1 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -19.28 | 36.54 | 7.66 | 210.07 | 0.2523 | -867.0 | -817.6 | |
| 3.68 | 13.28 | 1.88 | 6.77 | -18.22 | 36.43 | 7.55 | 212.06 | 0.2362 | -1103.5 | -825.7 | |
| 0.00 | 11.22 | 0.00 | 5.73 | -18.77 | 36.43 | 7.54 | 210.79 | 0.2439 | -167.0 | -352.7 | |
| 1.71 | -14.00 | 0.87 | -14.00 | -18.04 | 36.30 | 7.42 | 212.03 | 0.2325 | -1037.8 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -19.31 | 36.29 | 7.41 | 209.19 | 0.2507 | -928.0 | -766.8 | |
| 1.11 | 655.80 | 0.57 | 335.27 | -19.38 | 36.07 | 7.19 | 208.34 | 0.2499 | -600.7 | -41.0 | |
| 39.49 | -18.00 | 20.25 | -18.00 | -20.08 | 35.98 | 7.10 | 206.69 | 0.2595 | 1304.3 | 999999 | |
| 2.83 | -18.00 | 1.45 | -18.00 | -20.57 | 35.94 | 7.06 | 205.69 | 0.2665 | 805.9 | 999999 | |
| 0.00 | 14.56 | 0.00 | 7.42 | -18.66 | 35.63 | 6.75 | 208.34 | 0.2357 | 571.0 | 365.8 | |
| 0.00 | 1.03 | 0.00 | 0.52 | -18.87 | 35.36 | 6.48 | 206.93 | 0.2368 | -659.0 | -582.3 | |
| 3.26 | -18.00 | 1.67 | -18.00 | -20.21 | 35.22 | 6.34 | 203.99 | 0.2561 | 939.3 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -22.26 | 35.22 | 6.33 | 200.89 | 0.2876 | 704.0 | 568.5 | |
| 0.00 | 4.71 | 0.00 | 2.40 | -18.70 | 34.82 | 5.94 | 205.32 | 0.2301 | -720.0 | -590.7 | |
| 22.79 | -18.00 | 11.64 | -18.00 | -19.76 | 34.57 | 5.69 | 202.51 | 0.2448 | -1359.0 | 999999 | |
| 9.17 | -18.00 | 4.69 | -18.00 | -20.31 | 34.59 | 5.71 | 201.70 | 0.2535 | 890.4 | 999999 | |
| 1.80 | -18.00 | 0.92 | -18.00 | -20.58 | 34.54 | 5.66 | 201.11 | 0.2574 | 588.4 | 999999 | |
| 1.20 | 6.34 | 0.62 | 3.26 | -21.44 | 34.51 | 5.63 | 199.79 | 0.2707 | 1035.3 | 801.4 | |
| 0.69 | -18.00 | 0.35 | -18.00 | -19.55 | 34.34 | 5.46 | 202.04 | 0.2401 | -1062.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -21.04 | 34.37 | 5.48 | 199.87 | 0.2636 | 896.0 | 681.2 | |
| 10.97 | -18.00 | 5.58 | -18.00 | -19.10 | 34.23 | 5.35 | 202.41 | 0.2323 | -804.0 | 999999 | |
| 1.37 | -18.00 | 0.70 | -18.00 | -20.01 | 34.11 | 5.22 | 200.47 | 0.2458 | -687.2 | 999999 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -21.08 | 34.11 | 5.23 | 198.98 | 0.2628 | 442.0 | 420.2 | |
| 0.00 | 4.71 | 0.00 | 2.42 | -21.56 | 34.13 | 5.25 | 198.40 | 0.2706 | 647.0 | 658.3 | |
| 2.31 | -18.00 | 1.18 | -18.00 | -19.89 | 33.88 | 5.00 | 199.83 | 0.2426 | -899.0 | 999999 | |
| 1.03 | -18.00 | 0.52 | -18.00 | -19.37 | 33.83 | 4.95 | 200.45 | 0.2342 | -1384.4 | 999999 | |
| 2.83 | -18.00 | 1.44 | -18.00 | -20.26 | 33.80 | 4.92 | 199.01 | 0.2480 | 698.9 | 999999 | |
| 0.34 | -18.00 | 0.18 | -18.00 | -20.44 | 33.68 | 4.80 | 198.33 | 0.2503 | 933.2 | 999999 | |
| 0.00 | 1.37 | 0.00 | 0.70 | -20.84 | 33.63 | 4.74 | 197.63 | 0.2564 | 874.0 | 670.5 | |
| 19.70 | -18.00 | 10.03 | -18.00 | -19.32 | 33.52 | 4.64 | 199.33 | 0.2314 | -1399.1 | 999999 | |
| 0.00 | 7.80 | 0.00 | 4.00 | -21.42 | 33.58 | 4.70 | 196.77 | 0.2655 | 787.0 | 721.8 | |
| 2.74 | -18.00 | 1.40 | -18.00 | -20.69 | 33.40 | 4.52 | 197.03 | 0.2528 | 1173.6 | 999999 | |
| 0.00 | 1.29 | 0.00 | 0.66 | -21.11 | 33.35 | 4.47 | 196.34 | 0.2595 | 620.0 | 454.7 | |
| 1.46 | 2.23 | 0.75 | 1.15 | -22.16 | 33.03 | 4.15 | 194.16 | 0.2750 | -821.1 | -770.3 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -21.42 | 32.85 | 3.97 | 194.28 | 0.2623 | 491.0 | 294.9 | |
| 2.31 | -18.00 | 1.18 | -18.00 | -20.45 | 32.76 | 3.88 | 195.00 | 0.2460 | 886.0 | 999999 | |
| 0.00 | 3.51 | 0.00 | 1.79 | -20.54 | 32.45 | 3.56 | 193.74 | 0.2462 | 714.0 | 621.0 | |
| 0.00 | 2.31 | 0.00 | 1.19 | -21.49 | 32.37 | 3.49 | 192.57 | 0.2615 | -213.0 | -115.5 | |
| 0.00 | 1.03 | 0.00 | 0.53 | -22.32 | 32.07 | 3.19 | 190.87 | 0.2741 | -624.0 | -469.0 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -23.12 | 31.90 | 3.02 | 189.75 | 0.2869 | -753.0 | -589.6 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -21.16 | 31.76 | 2.88 | 190.68 | 0.2539 | -842.0 | -669.7 | |
| 0.00 | 1.20 | 0.00 | 0.61 | -20.09 | 31.61 | 2.73 | 191.00 | 0.2357 | -830.0 | -581.6 | |
| 8.40 | 451.74 | 4.32 | 231.70 | -22.26 | 31.37 | 2.48 | 188.55 | 0.2712 | -1139.9 | -370.2 | |
| 9.51 | -54.00 | 4.91 | -54.00 | -22.94 | 31.19 | 2.30 | 187.58 | 0.2821 | -1032.1 | 999999 | |
| 2.23 | -54.00 | 1.15 | -54.00 | -22.17 | 31.11 | 2.23 | 187.72 | 0.2691 | -1153.9 | 999999 | |
| 4.54 | -54.00 | 2.32 | -54.00 | -20.61 | 31.05 | 2.17 | 188.44 | 0.2428 | -878.8 | 999999 | |
| 0.60 | -54.00 | 0.31 | -54.00 | -23.12 | 31.00 | 2.11 | 186.87 | 0.2848 | -754.3 | 999999 | |
| 7.02 | -54.00 | 3.58 | -54.00 | -20.31 | 30.89 | 2.01 | 188.00 | 0.2373 | 940.8 | 999999 | |
| 9.51 | -54.00 | 4.88 | -54.00 | -22.05 | 30.72 | 1.84 | 186.45 | 0.2662 | -1039.7 | 999999 | |
| 0.00 | 4.71 | 0.00 | 2.44 | -23.46 | 30.74 | 1.86 | 185.92 | 0.2900 | -74.0 | -234.5 | |
| 1.88 | -54.00 | 0.96 | -54.00 | -20.73 | 30.61 | 1.73 | 186.68 | 0.2439 | -726.9 | 999999 | |
| 13.71 | -54.00 | 7.07 | -54.00 | -23.00 | 30.61 | 1.73 | 185.67 | 0.2820 | -1079.6 | 999999 | |
| 59.37 | -54.00 | 30.42 | -54.00 | -21.56 | 30.43 | 1.55 | 185.63 | 0.2575 | -1365.7 | 999999 | |
| 2.40 | -54.00 | 1.23 | -54.00 | -21.07 | 30.39 | 1.51 | 185.70 | 0.2492 | -1114.2 | 999999 | |
| 1.11 | -54.00 | 0.57 | -54.00 | -20.46 | 30.33 | 1.44 | 185.70 | 0.2388 | 836.5 | 999999 | |
| 1.37 | 12.85 | 0.71 | 6.65 | -23.34 | 30.26 | 1.38 | 184.42 | 0.2872 | -855.0 | -472.8 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -22.91 | 29.61 | 0.73 | 182.42 | 0.2793 | -624.0 | -468.7 | |
| 1.46 | 2.06 | 0.75 | 1.06 | -22.33 | 29.06 | 0.18 | 180.63 | 0.2692 | 616.0 | 460.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
