SDO HMI 2011-02-14 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.39 | 29.03 | 8.03 | 16.17 | 19.73 | 30.87 | 2.54 | 354.78 | 0.4594 | -462.8 | 99.0 | |
|
previous
or next observation for the same group /

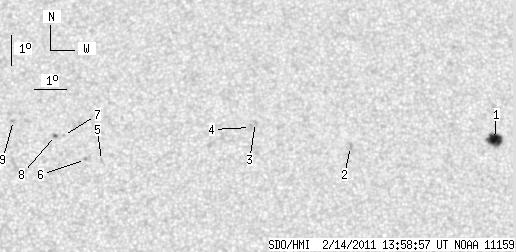

back to the solar disc SDO HMI 2011-02-14 13:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.28 | 15.25 | 7.41 | 8.51 | 19.72 | 35.73 | 7.40 | 344.77 | 0.4634 | -1002.6 | -667.6 | |
| 0.00 | 2.57 | 0.00 | 1.42 | 19.44 | 31.18 | 2.85 | 353.94 | 0.4460 | 787.0 | 665.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | 20.22 | 28.20 | -0.13 | 0.28 | 0.4560 | 744.0 | 578.7 | |
| 0.00 | 2.31 | 0.00 | 1.28 | 20.06 | 28.04 | -0.29 | 0.61 | 0.4534 | 649.0 | 577.2 | |
| 0.00 | 1.37 | 0.00 | 0.76 | 18.99 | 23.37 | -4.96 | 10.66 | 0.4439 | -813.0 | -520.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 19.03 | 22.87 | -5.46 | 11.69 | 0.4460 | -811.0 | -630.1 | |
| 0.00 | 0.77 | 0.00 | 0.43 | 19.83 | 22.15 | -6.19 | 12.77 | 0.4606 | -625.0 | -461.1 | |
| 1.11 | 1.71 | 0.62 | 0.96 | 19.84 | 21.89 | -6.44 | 13.27 | 0.4616 | -550.4 | -595.3 | |
| 0.00 | 1.88 | 0.00 | 1.06 | 20.36 | 20.53 | -7.80 | 15.62 | 0.4745 | 883.0 | 622.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
