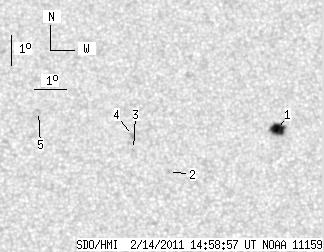

SDO HMI 2011-02-14 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.65 | 20.98 | 6.51 | 11.68 | 19.59 | 34.15 | 6.37 | 346.85 | 0.4592 | -340.7 | 253.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-14 14:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.65 | 14.39 | 6.51 | 8.04 | 19.69 | 35.75 | 7.97 | 343.65 | 0.4655 | -1008.4 | -764.6 | |
| 0.00 | 1.28 | 0.00 | 0.70 | 18.27 | 32.26 | 4.48 | 350.05 | 0.4313 | 743.0 | 618.5 | |
| 0.00 | 0.86 | 0.00 | 0.47 | 18.98 | 31.18 | 3.40 | 352.64 | 0.4399 | 797.0 | 683.3 | |
| 0.00 | 2.74 | 0.00 | 1.52 | 19.44 | 31.16 | 3.38 | 352.82 | 0.4470 | 811.0 | 740.2 | |
| 0.00 | 1.71 | 0.00 | 0.95 | 20.22 | 28.21 | 0.43 | 359.11 | 0.4560 | 633.0 | 634.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
