SDO HMI 2011-02-14 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.14 | 109.54 | 26.39 | 78.40 | 20.03 | 64.36 | 38.23 | 306.41 | 0.7240 | -21.6 | 359.6 | |
|
previous
or next observation for the same group /

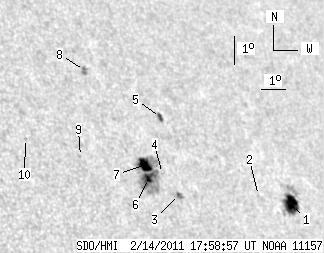

back to the solar disc SDO HMI 2011-02-14 17:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 17.98 | 29.89 | 13.62 | 22.65 | 19.35 | 68.42 | 42.29 | 302.96 | 0.7589 | -766.0 | -131.4 | |
| 0.00 | 0.77 | 0.00 | 0.57 | 19.54 | 67.08 | 40.96 | 303.97 | 0.7472 | -554.0 | -446.4 | |
| 0.94 | 4.97 | 0.66 | 3.50 | 19.30 | 63.76 | 37.64 | 305.87 | 0.7135 | 712.9 | 469.2 | |
| 0.00 | 0.86 | 0.00 | 0.60 | 19.96 | 63.31 | 37.18 | 306.97 | 0.7133 | 385.0 | 354.0 | |
| 3.00 | 3.34 | 2.17 | 2.41 | 21.85 | 63.78 | 37.66 | 308.84 | 0.7303 | -590.3 | -399.8 | |
| 3.34 | 63.62 | 2.33 | 44.43 | 19.75 | 62.70 | 36.57 | 307.15 | 0.7059 | 1064.5 | 469.3 | |
| 10.88 | -6.00 | 7.61 | -6.00 | 20.21 | 62.70 | 36.58 | 307.70 | 0.7091 | 803.8 | 999999 | |
| 0.00 | 4.37 | 0.00 | 3.09 | 23.24 | 61.18 | 35.05 | 312.33 | 0.7162 | 783.0 | 603.8 | |
| 0.00 | 0.86 | 0.00 | 0.58 | 20.29 | 60.21 | 34.08 | 309.69 | 0.6854 | 704.0 | 629.7 | |
| 0.00 | 0.86 | 0.00 | 0.57 | 20.75 | 58.24 | 32.11 | 311.87 | 0.6699 | 651.0 | 500.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
