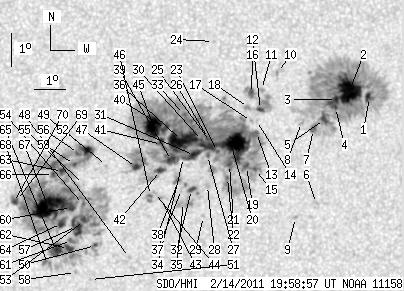

SDO HMI 2011-02-14 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 348.28 | 1785.11 | 179.89 | 922.39 | -20.16 | 34.61 | 9.59 | 213.43 | 0.2875 | -116.4 | -12.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-14 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.22 | 384.39 | 2.73 | 200.32 | -18.25 | 40.33 | 15.31 | 231.09 | 0.3238 | 871.4 | 475.3 | |
| 33.57 | -1.00 | 17.50 | -1.00 | -18.06 | 39.67 | 14.65 | 230.41 | 0.3134 | 1428.7 | 999999 | |
| 2.83 | -1.00 | 1.47 | -1.00 | -18.34 | 39.28 | 14.26 | 228.96 | 0.3113 | 1349.7 | 999999 | |
| 1.71 | -1.00 | 0.89 | -1.00 | -18.58 | 39.27 | 14.24 | 228.32 | 0.3137 | 1082.2 | 999999 | |
| 5.57 | -1.00 | 2.90 | -1.00 | -18.95 | 38.94 | 13.92 | 226.78 | 0.3137 | 1031.5 | 999999 | |
| 0.00 | 1.71 | 0.00 | 0.90 | -21.51 | 38.92 | 13.90 | 220.98 | 0.3422 | 771.0 | 655.5 | |
| 3.77 | -1.00 | 1.96 | -1.00 | -19.27 | 38.62 | 13.59 | 225.38 | 0.3131 | 793.2 | 999999 | |
| 0.00 | 3.17 | 0.00 | 1.65 | -19.07 | 38.21 | 13.19 | 225.04 | 0.3062 | 497.0 | 522.3 | |
| 0.00 | 1.80 | 0.00 | 0.95 | -21.96 | 38.27 | 13.25 | 218.80 | 0.3408 | 857.0 | 635.8 | |
| 0.00 | 2.65 | 0.00 | 1.37 | -17.58 | 37.33 | 12.31 | 227.00 | 0.2792 | -783.0 | -518.7 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -18.10 | 36.86 | 11.84 | 224.52 | 0.2794 | -689.0 | -524.8 | |
| 2.57 | 17.64 | 1.33 | 9.12 | -18.70 | 36.87 | 11.85 | 222.99 | 0.2865 | -869.0 | -39.9 | |
| 0.51 | 738.38 | 0.27 | 380.66 | -19.40 | 36.80 | 11.77 | 221.11 | 0.2940 | -486.7 | -14.5 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -19.04 | 36.77 | 11.75 | 221.92 | 0.2894 | -586.0 | -499.0 | |
| 1.71 | -13.00 | 0.89 | -13.00 | -20.53 | 36.85 | 11.83 | 218.69 | 0.3084 | 874.7 | 999999 | |
| 4.45 | 10.87 | 2.29 | 5.60 | -18.23 | 36.55 | 11.53 | 223.45 | 0.2773 | -1047.3 | -729.6 | |
| 0.00 | 1.71 | 0.00 | 0.89 | -19.07 | 36.61 | 11.59 | 221.47 | 0.2880 | -639.0 | -531.0 | |
| 0.00 | 3.77 | 0.00 | 1.94 | -18.65 | 36.49 | 11.46 | 222.21 | 0.2816 | -432.0 | -609.3 | |
| 2.74 | -13.00 | 1.42 | -13.00 | -20.44 | 36.55 | 11.53 | 218.19 | 0.3043 | 890.0 | 999999 | |
| 57.54 | -13.00 | 29.78 | -13.00 | -19.82 | 36.02 | 11.00 | 218.31 | 0.2909 | 1193.1 | 999999 | |
| 2.23 | -13.00 | 1.15 | -13.00 | -20.39 | 36.00 | 10.98 | 216.98 | 0.2981 | 896.7 | 999999 | |
| 1.28 | -13.00 | 0.67 | -13.00 | -20.79 | 35.97 | 10.94 | 216.06 | 0.3029 | 785.9 | 999999 | |
| 1.20 | -13.00 | 0.62 | -13.00 | -20.01 | 35.59 | 10.57 | 216.80 | 0.2890 | 539.1 | 999999 | |
| 0.00 | 0.86 | 0.00 | 0.44 | -16.69 | 35.26 | 10.24 | 224.45 | 0.2442 | -725.0 | -658.0 | |
| 1.28 | -13.00 | 0.66 | -13.00 | -19.71 | 35.34 | 10.32 | 216.84 | 0.2826 | 243.7 | 999999 | |
| 1.80 | -13.00 | 0.93 | -13.00 | -19.62 | 35.27 | 10.25 | 216.86 | 0.2808 | -645.3 | 999999 | |
| 1.71 | -13.00 | 0.89 | -13.00 | -20.14 | 35.28 | 10.25 | 215.72 | 0.2876 | 642.8 | 999999 | |
| 0.00 | 2.83 | 0.00 | 1.47 | -21.05 | 35.34 | 10.32 | 213.99 | 0.3003 | 783.0 | 623.8 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -22.00 | 35.28 | 10.26 | 212.03 | 0.3127 | 683.0 | 452.9 | |
| 2.06 | -13.00 | 1.06 | -13.00 | -19.68 | 35.09 | 10.07 | 216.22 | 0.2797 | -646.3 | 999999 | |
| 8.39 | -13.00 | 4.33 | -13.00 | -20.14 | 34.86 | 9.84 | 214.62 | 0.2837 | 829.1 | 999999 | |
| 3.17 | 9.93 | 1.64 | 5.15 | -21.18 | 34.83 | 9.81 | 212.44 | 0.2975 | 1049.5 | 800.1 | |
| 1.46 | -13.00 | 0.75 | -13.00 | -18.91 | 34.47 | 9.45 | 216.32 | 0.2633 | -845.7 | 999999 | |
| 0.26 | -13.00 | 0.13 | -13.00 | -20.21 | 34.51 | 9.49 | 213.54 | 0.2813 | 929.0 | 999999 | |
| 0.00 | 14.64 | 0.00 | 7.60 | -21.58 | 34.60 | 9.58 | 211.09 | 0.3011 | 615.0 | 552.2 | |
| 41.53 | -13.00 | 21.38 | -13.00 | -19.70 | 34.42 | 9.40 | 214.38 | 0.2734 | -1205.7 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -21.19 | 34.51 | 9.49 | 211.59 | 0.2948 | 643.0 | 576.1 | |
| 1.20 | 9.33 | 0.62 | 4.83 | -20.91 | 34.40 | 9.38 | 211.81 | 0.2900 | 763.9 | 275.6 | |
| 4.88 | -13.00 | 2.52 | -13.00 | -20.31 | 34.14 | 9.11 | 212.30 | 0.2793 | 1031.3 | 999999 | |
| 4.02 | -13.00 | 2.07 | -13.00 | -19.34 | 33.89 | 8.87 | 213.66 | 0.2636 | -1148.3 | 999999 | |
| 6.51 | -13.00 | 3.35 | -13.00 | -19.83 | 33.79 | 8.77 | 212.31 | 0.2695 | -846.3 | 999999 | |
| 4.88 | -13.00 | 2.52 | -13.00 | -20.62 | 33.80 | 8.78 | 210.75 | 0.2807 | 952.4 | 999999 | |
| 0.00 | 2.23 | 0.00 | 1.15 | -21.44 | 33.85 | 8.83 | 209.35 | 0.2928 | 846.0 | 657.5 | |
| 0.00 | 1.28 | 0.00 | 0.66 | -21.29 | 33.65 | 8.63 | 209.06 | 0.2890 | 894.0 | 684.1 | |
| 24.23 | -13.00 | 12.42 | -13.00 | -19.29 | 33.51 | 8.48 | 212.64 | 0.2594 | -1470.7 | 999999 | |
| 1.54 | 5.22 | 0.80 | 2.70 | -21.39 | 33.53 | 8.50 | 208.55 | 0.2894 | 762.0 | 682.8 | |
| 4.11 | -13.00 | 2.12 | -13.00 | -20.54 | 33.03 | 8.01 | 208.67 | 0.2732 | 977.3 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -23.30 | 32.96 | 7.94 | 203.99 | 0.3134 | -743.0 | -506.4 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -20.49 | 32.07 | 7.05 | 205.83 | 0.2651 | 737.0 | 563.1 | |
| 1.28 | 7.96 | 0.67 | 4.14 | -22.95 | 31.84 | 6.82 | 201.40 | 0.3009 | -862.3 | -692.3 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -24.00 | 31.73 | 6.71 | 199.80 | 0.3165 | -638.0 | -460.8 | |
| 4.80 | 548.88 | 2.45 | 282.64 | -20.02 | 31.42 | 6.40 | 204.53 | 0.2532 | 1068.6 | -395.1 | |
| 3.68 | -52.00 | 1.90 | -52.00 | -22.18 | 31.45 | 6.43 | 201.29 | 0.2867 | -946.4 | 999999 | |
| 1.46 | -52.00 | 0.75 | -52.00 | -21.69 | 31.39 | 6.37 | 201.81 | 0.2788 | -892.9 | 999999 | |
| 0.00 | 0.69 | 0.00 | 0.35 | -21.08 | 31.37 | 6.34 | 202.63 | 0.2692 | -796.0 | -649.6 | |
| 2.40 | -52.00 | 1.23 | -52.00 | -20.14 | 31.17 | 6.15 | 203.49 | 0.2534 | 906.9 | 999999 | |
| 11.22 | -52.00 | 5.80 | -52.00 | -22.37 | 31.20 | 6.18 | 200.29 | 0.2882 | -1143.6 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -23.79 | 31.23 | 6.21 | 198.68 | 0.3105 | -634.0 | -359.4 | |
| 1.63 | -52.00 | 0.83 | -52.00 | -20.48 | 31.06 | 6.03 | 202.56 | 0.2579 | -754.8 | 999999 | |
| 4.54 | -52.00 | 2.34 | -52.00 | -21.79 | 31.01 | 5.99 | 200.50 | 0.2780 | -1070.6 | 999999 | |
| 2.91 | -52.00 | 1.51 | -52.00 | -22.80 | 31.06 | 6.04 | 199.33 | 0.2941 | -1023.2 | 999999 | |
| 4.37 | -52.00 | 2.26 | -52.00 | -23.05 | 30.97 | 5.95 | 198.78 | 0.2975 | -1127.1 | 999999 | |
| 3.43 | -52.00 | 1.76 | -52.00 | -20.69 | 30.68 | 5.66 | 200.98 | 0.2589 | -1149.8 | 999999 | |
| 4.97 | -52.00 | 2.56 | -52.00 | -22.29 | 30.71 | 5.69 | 198.93 | 0.2841 | -866.2 | 999999 | |
| 11.30 | -52.00 | 5.86 | -52.00 | -23.12 | 30.59 | 5.56 | 197.58 | 0.2966 | -1035.5 | 999999 | |
| 2.83 | -52.00 | 1.45 | -52.00 | -20.79 | 30.40 | 5.38 | 199.89 | 0.2587 | -1134.1 | 999999 | |
| 43.50 | -52.00 | 22.39 | -52.00 | -21.80 | 30.28 | 5.26 | 198.16 | 0.2741 | -1468.2 | 999999 | |
| 0.00 | 5.65 | 0.00 | 2.93 | -23.52 | 30.31 | 5.29 | 196.35 | 0.3017 | -669.0 | -715.1 | |
| 1.46 | -52.00 | 0.75 | -52.00 | -21.59 | 29.25 | 4.23 | 195.00 | 0.2659 | -741.2 | 999999 | |
| 2.57 | -52.00 | 1.32 | -52.00 | -21.66 | 29.15 | 4.13 | 194.62 | 0.2665 | 535.9 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
