SDO HMI 2011-02-14 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 12.25 | 26.89 | 6.88 | 15.02 | 19.66 | 30.33 | 5.85 | 348.22 | 0.4655 | -480.7 | 181.8 | |
|
previous
or next observation for the same group /

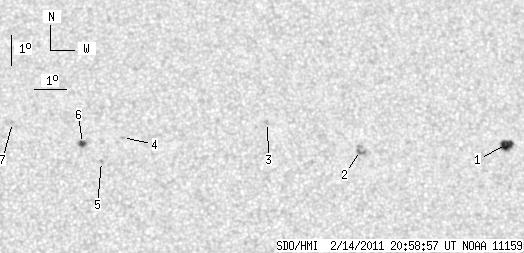

back to the solar disc SDO HMI 2011-02-14 20:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.65 | 10.96 | 4.89 | 6.19 | 19.71 | 35.80 | 11.32 | 337.40 | 0.4831 | -936.9 | -766.6 | |
| 0.00 | 6.08 | 0.00 | 3.38 | 19.41 | 31.13 | 6.66 | 346.07 | 0.4564 | 706.0 | 735.0 | |
| 0.00 | 1.97 | 0.00 | 1.10 | 20.31 | 28.23 | 3.75 | 352.32 | 0.4616 | 814.0 | 633.3 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 19.80 | 23.65 | -0.82 | 1.73 | 0.4499 | -735.0 | -489.8 | |
| 0.00 | 1.37 | 0.00 | 0.75 | 19.01 | 23.00 | -1.47 | 3.20 | 0.4379 | -887.0 | -663.2 | |
| 3.60 | 3.94 | 1.99 | 2.18 | 19.60 | 22.39 | -2.08 | 4.39 | 0.4479 | -897.3 | -704.8 | |
| 0.00 | 1.03 | 0.00 | 0.57 | 20.31 | 20.17 | -4.30 | 8.77 | 0.4629 | 758.0 | 618.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
