SDO HMI 2011-02-14 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 338.36 | 1750.52 | 175.95 | 910.62 | -20.15 | 34.59 | 11.77 | 218.85 | 0.3082 | -100.8 | -7.4 | |
|
previous
or next observation for the same group /

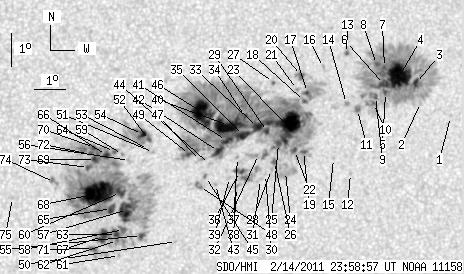

back to the solar disc SDO HMI 2011-02-14 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.43 | 0.00 | 0.23 | -19.21 | 41.55 | 18.73 | 233.97 | 0.3765 | 613.0 | 484.8 | |
| 0.00 | 1.46 | 0.00 | 0.77 | -18.82 | 40.51 | 17.69 | 233.45 | 0.3597 | 54.0 | 66.2 | |
| 3.94 | 352.05 | 2.08 | 185.43 | -18.26 | 40.29 | 17.47 | 234.48 | 0.3518 | 790.2 | 470.4 | |
| 33.41 | -3.00 | 17.60 | -3.00 | -18.03 | 39.75 | 16.92 | 234.24 | 0.3426 | 1271.9 | 999999 | |
| 1.97 | -3.00 | 1.04 | -3.00 | -18.56 | 39.34 | 16.52 | 232.33 | 0.3421 | 888.9 | 999999 | |
| 5.91 | -3.00 | 3.11 | -3.00 | -18.32 | 39.29 | 16.47 | 232.83 | 0.3392 | 1185.3 | 999999 | |
| 1.11 | -3.00 | 0.58 | -3.00 | -17.81 | 39.24 | 16.42 | 234.04 | 0.3339 | 1158.8 | 999999 | |
| 2.74 | -3.00 | 1.44 | -3.00 | -17.73 | 38.97 | 16.15 | 233.84 | 0.3296 | 885.3 | 999999 | |
| 2.14 | -3.00 | 1.13 | -3.00 | -18.69 | 39.03 | 16.21 | 231.52 | 0.3393 | 1014.7 | 999999 | |
| 1.37 | -3.00 | 0.72 | -3.00 | -18.90 | 38.99 | 16.16 | 230.93 | 0.3407 | 798.1 | 999999 | |
| 0.00 | 6.34 | 0.00 | 3.33 | -19.10 | 38.48 | 15.66 | 229.63 | 0.3363 | 927.0 | 703.4 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -21.05 | 38.46 | 15.63 | 225.18 | 0.3562 | 628.0 | 483.1 | |
| 1.46 | 2.91 | 0.76 | 1.52 | -17.42 | 37.98 | 15.15 | 233.00 | 0.3137 | 935.8 | 605.5 | |
| 0.00 | 2.40 | 0.00 | 1.26 | -18.93 | 38.11 | 15.29 | 229.40 | 0.3300 | 811.0 | 716.0 | |
| 0.00 | 1.28 | 0.00 | 0.68 | -20.61 | 37.85 | 15.03 | 225.06 | 0.3444 | 862.0 | 618.7 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -17.87 | 37.27 | 14.45 | 230.59 | 0.3088 | -775.0 | -585.3 | |
| 1.37 | 716.44 | 0.71 | 371.70 | -18.64 | 36.82 | 14.00 | 227.77 | 0.3110 | -1001.3 | -72.7 | |
| 1.63 | -17.00 | 0.85 | -17.00 | -18.91 | 36.75 | 13.93 | 226.95 | 0.3131 | -481.1 | 999999 | |
| 2.14 | -17.00 | 1.12 | -17.00 | -20.43 | 36.85 | 14.03 | 223.60 | 0.3309 | 782.0 | 999999 | |
| 1.80 | 5.31 | 0.93 | 2.76 | -18.13 | 36.59 | 13.77 | 228.61 | 0.3028 | -1001.9 | -894.5 | |
| 0.00 | 1.80 | 0.00 | 0.94 | -18.55 | 36.50 | 13.67 | 227.34 | 0.3062 | -952.0 | -752.1 | |
| 2.48 | -17.00 | 1.30 | -17.00 | -20.40 | 36.56 | 13.74 | 223.08 | 0.3274 | 794.5 | 999999 | |
| 48.23 | -17.00 | 25.16 | -17.00 | -19.65 | 36.27 | 13.44 | 224.20 | 0.3155 | 1127.4 | 999999 | |
| 0.00 | 21.59 | 0.00 | 11.33 | -21.05 | 36.33 | 13.50 | 221.20 | 0.3323 | 155.0 | 169.8 | |
| 2.57 | -17.00 | 1.34 | -17.00 | -20.21 | 36.02 | 13.20 | 222.43 | 0.3191 | 881.9 | 999999 | |
| 2.31 | 4.63 | 1.21 | 2.42 | -20.76 | 35.94 | 13.12 | 221.05 | 0.3247 | 775.5 | 540.7 | |
| 0.94 | 1.46 | 0.49 | 0.75 | -18.36 | 35.71 | 12.89 | 226.21 | 0.2946 | 594.4 | 529.3 | |
| 0.00 | 1.20 | 0.00 | 0.63 | -21.00 | 35.86 | 13.04 | 220.37 | 0.3268 | 608.0 | 486.4 | |
| 2.23 | -17.00 | 1.16 | -17.00 | -19.85 | 35.64 | 12.82 | 222.43 | 0.3106 | 606.8 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -21.16 | 35.68 | 12.86 | 219.66 | 0.3268 | 570.0 | 446.6 | |
| 0.00 | 2.31 | 0.00 | 1.21 | -21.32 | 35.53 | 12.71 | 219.02 | 0.3271 | 547.0 | 379.5 | |
| 0.00 | 10.88 | 0.00 | 5.68 | -20.56 | 35.40 | 12.58 | 220.35 | 0.3165 | 946.0 | 793.4 | |
| 6.51 | -17.00 | 3.38 | -17.00 | -19.74 | 35.30 | 12.48 | 221.97 | 0.3056 | 710.0 | 999999 | |
| 1.71 | -17.00 | 0.89 | -17.00 | -19.41 | 34.89 | 12.07 | 221.82 | 0.2972 | -1041.5 | 999999 | |
| 8.05 | -17.00 | 4.18 | -17.00 | -19.99 | 34.87 | 12.05 | 220.43 | 0.3039 | 686.1 | 999999 | |
| 4.37 | 19.19 | 2.28 | 10.03 | -21.09 | 34.83 | 12.01 | 217.96 | 0.3171 | 965.0 | 738.6 | |
| 0.00 | 0.86 | 0.00 | 0.45 | -20.66 | 34.73 | 11.91 | 218.63 | 0.3108 | 583.0 | 459.4 | |
| 0.00 | 3.17 | 0.00 | 1.66 | -21.58 | 34.78 | 11.96 | 216.83 | 0.3228 | 710.0 | 556.8 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -21.28 | 34.52 | 11.70 | 216.87 | 0.3164 | 713.0 | 521.7 | |
| 27.75 | -17.00 | 14.38 | -17.00 | -19.70 | 34.37 | 11.55 | 219.94 | 0.2950 | -1194.2 | 999999 | |
| 4.11 | -17.00 | 2.13 | -17.00 | -20.16 | 34.34 | 11.52 | 218.83 | 0.3003 | 967.2 | 999999 | |
| 5.57 | -17.00 | 2.89 | -17.00 | -20.50 | 34.11 | 11.29 | 217.54 | 0.3022 | 871.7 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.54 | -21.50 | 34.09 | 11.27 | 215.42 | 0.3151 | 687.0 | 583.6 | |
| 0.00 | 2.06 | 0.00 | 1.07 | -20.90 | 33.85 | 11.03 | 216.07 | 0.3048 | 546.0 | 351.2 | |
| 1.03 | 2.23 | 0.53 | 1.16 | -21.27 | 33.75 | 10.92 | 215.08 | 0.3087 | 662.8 | 534.6 | |
| 34.43 | -17.00 | 17.77 | -17.00 | -19.35 | 33.55 | 10.72 | 218.73 | 0.2819 | -1301.9 | 999999 | |
| 0.00 | 3.51 | 0.00 | 1.82 | -20.78 | 33.55 | 10.73 | 215.58 | 0.3004 | 703.0 | 440.5 | |
| 0.00 | 4.88 | 0.00 | 2.54 | -21.58 | 33.57 | 10.75 | 214.06 | 0.3112 | 766.0 | 736.1 | |
| 1.97 | -17.00 | 1.02 | -17.00 | -20.61 | 33.18 | 10.36 | 215.03 | 0.2946 | 907.4 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.27 | -23.28 | 32.96 | 10.14 | 209.56 | 0.3292 | -660.0 | -590.8 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -20.57 | 32.02 | 9.20 | 212.06 | 0.2834 | 677.0 | 527.7 | |
| 1.03 | 40.86 | 0.53 | 21.01 | -20.21 | 31.88 | 9.05 | 212.38 | 0.2770 | -601.1 | 408.8 | |
| 0.00 | 1.37 | 0.00 | 0.71 | -20.48 | 31.86 | 9.04 | 211.78 | 0.2807 | 628.0 | 467.3 | |
| 4.28 | -52.00 | 2.20 | -52.00 | -20.03 | 31.64 | 8.82 | 212.09 | 0.2724 | 1097.6 | 999999 | |
| 2.66 | 8.05 | 1.39 | 4.21 | -23.12 | 31.80 | 8.98 | 206.98 | 0.3178 | -788.5 | -490.1 | |
| 0.00 | 1.97 | 0.00 | 1.02 | -20.83 | 31.27 | 8.45 | 209.46 | 0.2806 | -579.0 | -437.7 | |
| 23.90 | 497.84 | 12.41 | 257.64 | -22.33 | 31.30 | 8.48 | 206.92 | 0.3025 | -997.0 | -409.1 | |
| 3.94 | -57.00 | 2.05 | -57.00 | -22.94 | 31.20 | 8.38 | 205.71 | 0.3109 | -829.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 0.75 | -20.65 | 31.04 | 8.22 | 209.12 | 0.2761 | -769.0 | -615.5 | |
| 5.23 | -57.00 | 2.71 | -57.00 | -21.81 | 31.04 | 8.22 | 207.06 | 0.2930 | -1029.8 | 999999 | |
| 0.00 | 1.28 | 0.00 | 0.67 | -23.75 | 31.13 | 8.30 | 204.34 | 0.3222 | -655.0 | -516.9 | |
| 1.03 | -57.00 | 0.54 | -57.00 | -23.28 | 31.03 | 8.21 | 204.75 | 0.3147 | -680.0 | 999999 | |
| 2.40 | -57.00 | 1.25 | -57.00 | -23.10 | 30.99 | 8.17 | 204.90 | 0.3117 | -949.1 | 999999 | |
| 1.80 | -57.00 | 0.93 | -57.00 | -20.56 | 30.78 | 7.96 | 208.52 | 0.2727 | -836.1 | 999999 | |
| 5.23 | -57.00 | 2.71 | -57.00 | -22.30 | 30.78 | 7.96 | 205.54 | 0.2984 | -833.0 | 999999 | |
| 2.66 | -57.00 | 1.37 | -57.00 | -20.68 | 30.53 | 7.71 | 207.54 | 0.2726 | -1073.7 | 999999 | |
| 9.25 | -57.00 | 4.82 | -57.00 | -23.17 | 30.54 | 7.72 | 203.60 | 0.3096 | -991.8 | 999999 | |
| 49.68 | -57.00 | 25.69 | -57.00 | -21.85 | 30.30 | 7.48 | 204.91 | 0.2882 | -1343.9 | 999999 | |
| 3.17 | -57.00 | 1.63 | -57.00 | -20.81 | 30.18 | 7.36 | 206.27 | 0.2719 | -1165.5 | 999999 | |
| 0.94 | -57.00 | 0.48 | -57.00 | -20.45 | 30.13 | 7.31 | 206.77 | 0.2661 | 706.3 | 999999 | |
| 2.57 | 14.22 | 1.34 | 7.42 | -23.54 | 30.27 | 7.44 | 202.37 | 0.3136 | -836.3 | -266.2 | |
| 1.28 | -57.00 | 0.66 | -57.00 | -20.66 | 30.02 | 7.20 | 206.02 | 0.2684 | -654.8 | 999999 | |
| 2.06 | -57.00 | 1.06 | -57.00 | -21.06 | 29.97 | 7.15 | 205.21 | 0.2740 | -1045.9 | 999999 | |
| 0.00 | 5.57 | 0.00 | 2.87 | -21.53 | 28.91 | 6.09 | 201.18 | 0.2743 | -570.0 | -371.1 | |
| 0.00 | 1.11 | 0.00 | 0.57 | -22.01 | 27.58 | 4.76 | 196.35 | 0.2746 | -839.0 | -584.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
