SDO HMI 2011-02-15 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.16 | 56.63 | 20.45 | 53.62 | 19.66 | 64.77 | 52.92 | 298.20 | 0.8536 | 121.7 | 278.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-15 19:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

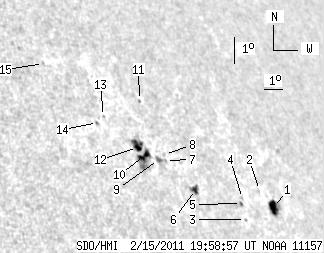

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.71 | 12.34 | 8.11 | 13.01 | 18.92 | 69.03 | 57.18 | 295.73 | 0.8844 | -509.5 | 16.9 | |
| 0.00 | 0.94 | 0.00 | 0.98 | 19.41 | 68.49 | 56.64 | 296.45 | 0.8818 | -393.0 | -345.2 | |
| 0.00 | 1.20 | 0.00 | 1.19 | 18.34 | 67.15 | 55.30 | 295.77 | 0.8686 | -454.0 | -392.9 | |
| 0.00 | 1.37 | 0.00 | 1.38 | 19.03 | 67.33 | 55.48 | 296.46 | 0.8720 | -447.0 | -419.3 | |
| 1.03 | 1.46 | 1.03 | 1.45 | 18.86 | 67.19 | 55.33 | 296.32 | 0.8704 | -558.8 | -528.2 | |
| 3.34 | 5.40 | 3.14 | 5.07 | 19.07 | 64.81 | 52.96 | 297.47 | 0.8524 | 461.3 | 382.1 | |
| 0.00 | 0.69 | 0.00 | 0.63 | 19.90 | 63.64 | 51.79 | 298.86 | 0.8458 | 344.0 | 284.8 | |
| 0.00 | 1.46 | 0.00 | 1.35 | 20.10 | 63.69 | 51.83 | 299.06 | 0.8468 | 323.0 | 251.4 | |
| 0.00 | 2.91 | 0.00 | 2.66 | 19.90 | 63.29 | 51.43 | 299.01 | 0.8428 | 504.0 | 382.1 | |
| 6.00 | 16.10 | 5.40 | 14.47 | 19.96 | 62.61 | 50.76 | 299.38 | 0.8375 | 718.5 | 555.0 | |
| 0.00 | 1.03 | 0.00 | 0.96 | 21.83 | 63.25 | 51.40 | 301.14 | 0.8497 | -401.0 | -351.2 | |
| 3.08 | 8.82 | 2.77 | 7.94 | 20.20 | 62.37 | 50.51 | 299.75 | 0.8364 | 719.3 | 515.4 | |
| 0.00 | 0.94 | 0.00 | 0.83 | 21.10 | 61.09 | 49.24 | 301.32 | 0.8294 | 422.0 | 355.0 | |
| 0.00 | 1.11 | 0.00 | 0.97 | 20.86 | 60.70 | 48.84 | 301.24 | 0.8251 | 642.0 | 481.3 | |
| 0.00 | 0.86 | 0.00 | 0.73 | 22.65 | 58.91 | 47.06 | 304.10 | 0.8180 | 553.0 | 524.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
