SDO HMI 2011-02-15 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 316.32 | 1538.15 | 177.05 | 863.16 | -19.83 | 35.10 | 25.44 | 239.37 | 0.4715 | 13.2 | 7.4 | |
|
previous
or next observation for the same group /

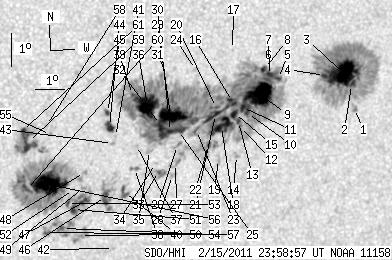

back to the solar disc SDO HMI 2011-02-15 23:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 3.60 | 0.00 | 2.11 | -19.13 | 40.56 | 30.90 | 244.79 | 0.5385 | 571.0 | 522.3 | |
| 2.06 | 281.66 | 1.20 | 163.90 | -18.41 | 40.30 | 30.65 | 245.93 | 0.5319 | 777.7 | 406.0 | |
| 42.93 | -2.00 | 24.96 | -2.00 | -18.10 | 39.95 | 30.30 | 246.32 | 0.5258 | 1106.9 | 999999 | |
| 1.97 | -2.00 | 1.14 | -2.00 | -18.20 | 39.29 | 29.63 | 245.77 | 0.5172 | 1130.2 | 999999 | |
| 1.89 | 813.20 | 1.07 | 455.73 | -18.38 | 37.68 | 28.03 | 244.48 | 0.4962 | 985.3 | 41.4 | |
| 1.46 | -5.00 | 0.83 | -5.00 | -18.30 | 37.38 | 27.73 | 244.43 | 0.4918 | 673.9 | 999999 | |
| 1.37 | -5.00 | 0.78 | -5.00 | -18.24 | 37.34 | 27.69 | 244.52 | 0.4908 | -310.6 | 999999 | |
| 2.40 | -5.00 | 1.36 | -5.00 | -18.10 | 37.14 | 27.49 | 244.66 | 0.4874 | -492.3 | 999999 | |
| 43.62 | -5.00 | 24.77 | -5.00 | -18.89 | 37.10 | 27.45 | 243.11 | 0.4910 | 1149.5 | 999999 | |
| 1.63 | -5.00 | 0.92 | -5.00 | -19.49 | 36.78 | 27.13 | 241.75 | 0.4900 | 749.4 | 999999 | |
| 2.74 | -5.00 | 1.55 | -5.00 | -19.32 | 36.58 | 26.92 | 241.93 | 0.4863 | 878.4 | 999999 | |
| 1.29 | -5.00 | 0.73 | -5.00 | -19.90 | 36.61 | 26.96 | 240.86 | 0.4901 | 588.7 | 999999 | |
| 2.14 | -5.00 | 1.21 | -5.00 | -19.75 | 36.51 | 26.86 | 241.06 | 0.4879 | 679.2 | 999999 | |
| 0.00 | 2.74 | 0.00 | 1.56 | -20.78 | 36.64 | 26.98 | 239.22 | 0.4958 | 577.0 | 451.4 | |
| 3.68 | -5.00 | 2.08 | -5.00 | -19.51 | 36.33 | 26.68 | 241.37 | 0.4841 | 754.9 | 999999 | |
| 5.40 | -5.00 | 3.04 | -5.00 | -19.15 | 36.20 | 26.54 | 241.97 | 0.4802 | 879.6 | 999999 | |
| 0.00 | 1.03 | 0.00 | 0.58 | -17.59 | 35.94 | 26.28 | 244.88 | 0.4682 | -589.0 | -442.6 | |
| 16.62 | -5.00 | 9.38 | -5.00 | -19.93 | 35.95 | 26.29 | 240.28 | 0.4815 | 795.5 | 999999 | |
| 0.00 | 3.94 | 0.00 | 2.24 | -20.93 | 36.03 | 26.37 | 238.45 | 0.4889 | 528.0 | 469.0 | |
| 1.29 | -5.00 | 0.72 | -5.00 | -19.36 | 35.67 | 26.02 | 241.16 | 0.4744 | 667.9 | 999999 | |
| 12.77 | -5.00 | 7.18 | -5.00 | -19.58 | 35.67 | 26.02 | 240.75 | 0.4757 | 813.9 | 999999 | |
| 2.06 | -5.00 | 1.16 | -5.00 | -20.50 | 35.59 | 25.94 | 238.92 | 0.4804 | 827.1 | 999999 | |
| 2.40 | -5.00 | 1.35 | -5.00 | -20.09 | 35.10 | 25.45 | 239.28 | 0.4713 | 697.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.10 | -18.25 | 34.76 | 25.11 | 242.67 | 0.4555 | -643.0 | -555.6 | |
| 2.57 | -5.00 | 1.44 | -5.00 | -20.12 | 34.48 | 24.83 | 238.69 | 0.4633 | 820.0 | 999999 | |
| 0.00 | 4.54 | 0.00 | 2.54 | -20.58 | 34.52 | 24.87 | 237.84 | 0.4670 | 793.0 | 622.5 | |
| 0.00 | 6.26 | 0.00 | 3.51 | -21.13 | 34.55 | 24.90 | 236.82 | 0.4712 | 210.0 | 519.6 | |
| 0.00 | 3.51 | 0.00 | 1.97 | -21.50 | 34.51 | 24.86 | 236.08 | 0.4733 | 664.0 | 553.0 | |
| 25.54 | -5.00 | 14.20 | -5.00 | -19.68 | 34.13 | 24.47 | 239.26 | 0.4558 | -1048.6 | 999999 | |
| 2.31 | -5.00 | 1.29 | -5.00 | -20.17 | 34.21 | 24.55 | 238.37 | 0.4601 | 800.1 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.14 | -18.48 | 33.83 | 24.18 | 241.46 | 0.4441 | -347.0 | -319.1 | |
| 1.89 | -5.00 | 1.05 | -5.00 | -19.97 | 33.83 | 24.18 | 238.42 | 0.4537 | -544.4 | 999999 | |
| 1.20 | 12.85 | 0.67 | 7.19 | -21.40 | 34.00 | 24.35 | 235.80 | 0.4661 | 877.7 | 432.3 | |
| 0.00 | 1.11 | 0.00 | 0.62 | -21.16 | 33.86 | 24.20 | 236.11 | 0.4625 | 534.0 | 434.1 | |
| 0.00 | 3.94 | 0.00 | 2.19 | -20.78 | 33.58 | 23.93 | 236.60 | 0.4562 | 22.0 | 4.2 | |
| 30.25 | -5.00 | 16.69 | -5.00 | -19.42 | 33.29 | 23.64 | 239.05 | 0.4429 | -1184.7 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -20.65 | 33.11 | 23.46 | 236.40 | 0.4491 | 601.0 | 469.1 | |
| 0.00 | 3.86 | 0.00 | 2.14 | -21.35 | 33.16 | 23.51 | 235.08 | 0.4550 | -661.0 | -506.0 | |
| 0.77 | -5.00 | 0.42 | -5.00 | -19.11 | 32.73 | 23.08 | 239.16 | 0.4332 | -919.0 | 999999 | |
| 5.48 | 8.65 | 3.05 | 4.82 | -22.10 | 32.94 | 23.29 | 233.43 | 0.4580 | -594.3 | -324.6 | |
| 0.00 | 0.69 | 0.00 | 0.38 | -20.41 | 32.35 | 22.70 | 236.12 | 0.4375 | 833.0 | 623.0 | |
| 0.00 | 0.60 | 0.00 | 0.34 | -23.83 | 32.87 | 23.22 | 230.18 | 0.4715 | -574.0 | -493.0 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -20.62 | 32.28 | 22.63 | 235.61 | 0.4382 | 929.0 | 685.2 | |
| 6.26 | 9.60 | 3.43 | 5.27 | -20.11 | 32.10 | 22.45 | 236.46 | 0.4320 | 989.9 | 772.6 | |
| 2.06 | 2.83 | 1.13 | 1.55 | -19.69 | 31.97 | 22.32 | 237.20 | 0.4272 | 917.6 | 801.4 | |
| 7.03 | 21.51 | 3.90 | 11.93 | -22.25 | 32.31 | 22.65 | 232.47 | 0.4514 | -881.1 | -613.7 | |
| 4.03 | 40.27 | 2.22 | 22.23 | -22.43 | 31.61 | 21.96 | 231.35 | 0.4444 | -825.7 | -571.6 | |
| 0.00 | 1.80 | 0.00 | 0.99 | -21.55 | 31.47 | 21.81 | 232.90 | 0.4352 | -350.0 | -397.8 | |
| 0.00 | 2.23 | 0.00 | 1.23 | -22.01 | 31.51 | 21.85 | 232.05 | 0.4395 | -885.0 | -774.4 | |
| 0.00 | 13.88 | 0.00 | 7.71 | -23.48 | 31.65 | 22.00 | 229.45 | 0.4541 | -508.0 | -320.4 | |
| 5.40 | -47.00 | 2.98 | -47.00 | -22.69 | 31.27 | 21.62 | 230.47 | 0.4426 | -833.3 | 999999 | |
| 0.00 | 1.20 | 0.00 | 0.66 | -22.08 | 31.17 | 21.52 | 231.52 | 0.4361 | -364.0 | -338.4 | |
| 1.71 | -47.00 | 0.94 | -47.00 | -22.52 | 31.04 | 21.39 | 230.52 | 0.4383 | -581.9 | 999999 | |
| 1.97 | 30.51 | 1.09 | 16.84 | -23.29 | 30.99 | 21.34 | 229.02 | 0.4447 | -869.7 | -631.2 | |
| 0.00 | 1.29 | 0.00 | 0.70 | -20.44 | 30.14 | 20.49 | 233.61 | 0.4093 | -668.0 | -559.3 | |
| 43.96 | 211.83 | 24.02 | 115.64 | -21.96 | 30.30 | 20.65 | 230.70 | 0.4244 | -1185.1 | -467.5 | |
| 2.49 | -54.00 | 1.37 | -54.00 | -23.44 | 30.50 | 20.85 | 228.15 | 0.4402 | -814.3 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.17 | 29.97 | 20.32 | 233.97 | 0.4048 | -552.0 | -381.7 | |
| 15.60 | 40.02 | 8.43 | 21.63 | -20.68 | 29.44 | 19.78 | 232.23 | 0.4024 | -960.9 | -508.5 | |
| 3.68 | -56.00 | 2.01 | -56.00 | -22.15 | 29.58 | 19.92 | 229.44 | 0.4173 | -1048.1 | 999999 | |
| 2.40 | -59.00 | 1.29 | -59.00 | -20.35 | 29.19 | 19.54 | 232.60 | 0.3964 | 322.1 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
