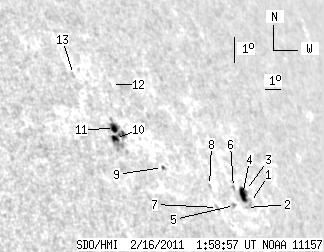

SDO HMI 2011-02-16 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.66 | 49.36 | 15.80 | 51.89 | 19.50 | 65.34 | 56.78 | 296.58 | 0.8825 | -44.1 | 97.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 01:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.40 | 0.00 | 2.83 | 18.60 | 69.46 | 60.90 | 294.18 | 0.9096 | -99.0 | -140.5 | |
| 0.00 | 0.94 | 0.00 | 1.10 | 18.40 | 69.08 | 60.52 | 294.09 | 0.9066 | -296.0 | -274.9 | |
| 0.94 | 10.54 | 1.11 | 12.35 | 18.98 | 69.36 | 60.81 | 294.61 | 0.9098 | 155.3 | -235.2 | |
| 6.69 | -3.00 | 7.82 | -3.00 | 18.82 | 69.07 | 60.51 | 294.53 | 0.9075 | -388.1 | 999999 | |
| 0.00 | 1.80 | 0.00 | 2.04 | 18.38 | 68.31 | 59.75 | 294.31 | 0.9013 | -578.0 | -458.0 | |
| 0.00 | 1.71 | 0.00 | 1.98 | 18.99 | 68.60 | 60.05 | 294.86 | 0.9048 | -547.0 | -477.8 | |
| 0.00 | 2.06 | 0.00 | 2.24 | 18.19 | 67.16 | 58.60 | 294.48 | 0.8929 | -417.0 | -407.5 | |
| 0.00 | 1.37 | 0.00 | 1.50 | 18.89 | 67.06 | 58.51 | 295.26 | 0.8939 | -391.0 | -374.9 | |
| 1.20 | 1.54 | 1.22 | 1.57 | 19.21 | 64.49 | 55.93 | 296.49 | 0.8761 | 368.5 | 394.8 | |
| 2.74 | 24.69 | 2.65 | 24.02 | 19.92 | 62.27 | 53.72 | 298.11 | 0.8613 | 687.4 | 426.7 | |
| 3.09 | -10.00 | 3.00 | -10.00 | 20.26 | 62.39 | 53.83 | 298.43 | 0.8633 | 593.4 | 999999 | |
| 0.00 | 0.77 | 0.00 | 0.78 | 21.77 | 63.04 | 54.48 | 299.80 | 0.8730 | -351.0 | -270.8 | |
| 0.00 | 1.54 | 0.00 | 1.48 | 21.91 | 61.06 | 52.50 | 300.75 | 0.8586 | 440.0 | 409.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
