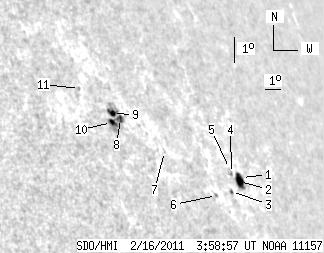

SDO HMI 2011-02-16 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 15.51 | 39.44 | 17.66 | 42.80 | 19.50 | 65.35 | 57.88 | 296.19 | 0.8903 | -42.1 | 162.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 03:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.37 | 11.23 | 1.68 | 13.66 | 18.91 | 69.36 | 61.89 | 294.20 | 0.9166 | 147.8 | -158.0 | |
| 7.97 | -1.00 | 9.69 | -1.00 | 18.75 | 69.13 | 61.66 | 294.11 | 0.9148 | -371.4 | 999999 | |
| 0.60 | 1.54 | 0.71 | 1.82 | 18.35 | 68.35 | 60.89 | 293.92 | 0.9089 | -448.3 | -391.6 | |
| 0.00 | 1.29 | 0.00 | 1.54 | 18.97 | 68.73 | 61.27 | 294.45 | 0.9128 | -546.0 | -437.6 | |
| 0.00 | 1.03 | 0.00 | 1.24 | 19.13 | 68.70 | 61.24 | 294.63 | 0.9129 | -425.0 | -400.8 | |
| 0.00 | 1.11 | 0.00 | 1.26 | 18.10 | 67.25 | 59.79 | 294.00 | 0.9010 | -511.0 | -428.6 | |
| 0.00 | 0.77 | 0.00 | 0.82 | 19.25 | 64.75 | 57.29 | 296.06 | 0.8862 | 260.0 | 209.0 | |
| 1.97 | 10.89 | 1.99 | 10.88 | 20.11 | 62.71 | 55.24 | 297.73 | 0.8736 | 569.5 | 545.9 | |
| 1.63 | 10.12 | 1.63 | 10.17 | 20.24 | 62.33 | 54.87 | 298.00 | 0.8711 | 562.6 | 248.1 | |
| 1.97 | -8.00 | 1.96 | -8.00 | 19.92 | 62.11 | 54.65 | 297.75 | 0.8685 | 705.5 | 999999 | |
| 0.00 | 1.46 | 0.00 | 1.41 | 20.91 | 60.89 | 53.43 | 299.30 | 0.8623 | 504.0 | 367.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
