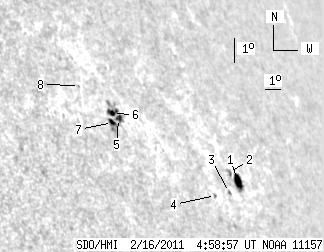

SDO HMI 2011-02-16 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.15 | 41.75 | 16.05 | 46.13 | 19.43 | 65.39 | 58.47 | 295.91 | 0.8943 | -15.3 | 103.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-02-16 04:58:57 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.46 | 11.92 | 9.25 | 14.78 | 18.73 | 69.17 | 62.25 | 293.91 | 0.9185 | -375.1 | -108.6 | |
| 0.00 | 2.66 | 0.00 | 3.26 | 19.00 | 68.74 | 61.82 | 294.32 | 0.9164 | -510.0 | -455.0 | |
| 0.00 | 1.54 | 0.00 | 1.85 | 18.31 | 68.31 | 61.39 | 293.73 | 0.9122 | -435.0 | -353.3 | |
| 0.00 | 1.37 | 0.00 | 1.58 | 18.10 | 67.28 | 60.36 | 293.82 | 0.9049 | -467.0 | -400.6 | |
| 2.40 | 23.75 | 2.46 | 24.15 | 20.10 | 62.61 | 55.69 | 297.54 | 0.8768 | 576.2 | 362.3 | |
| 1.63 | -5.00 | 1.66 | -5.00 | 20.23 | 62.34 | 55.42 | 297.79 | 0.8753 | 554.2 | 999999 | |
| 2.66 | -5.00 | 2.68 | -5.00 | 19.92 | 62.18 | 55.26 | 297.52 | 0.8731 | 710.5 | 999999 | |
| 0.00 | 0.51 | 0.00 | 0.51 | 21.01 | 60.94 | 54.02 | 299.16 | 0.8671 | 333.0 | 348.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
